Amp-Kit for the G5 project - Ver. 3

Amp-Kit for the G5 project - Ver. 3

Amp-Kit for the G5 project - Ver. 3

Amp-Kit for the G5 project - Ver. 3

Product No.:: kit-g5
: available in short term
Leadtime ca.1 Week*
Stock:: piece
RoHs:: conform
Weight:: 7.311 kg per piece

309,00 €

incl. VAT excl. Shipping costs

piece:

Description

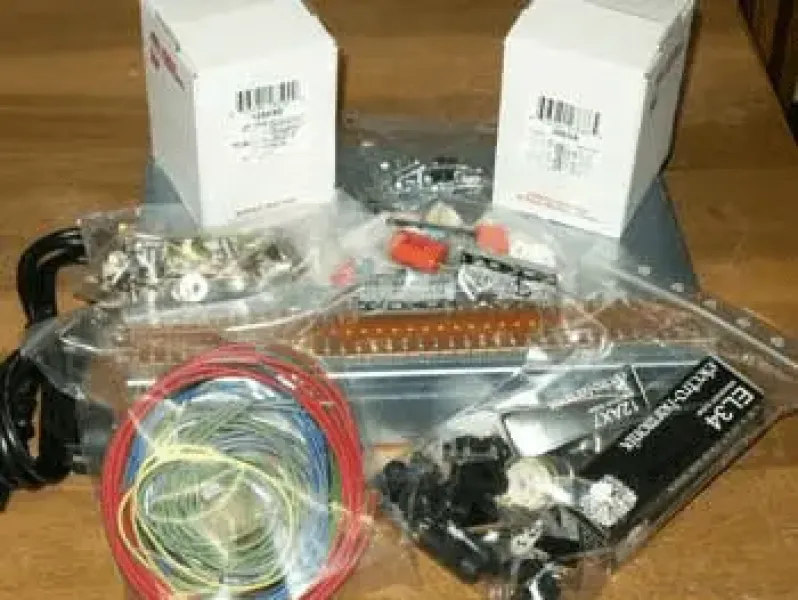

This is an All-Part kit for building the G5 amp Version 3.
The kit includes all components needed to build the amplifier incl. housing, tubes, transformers, resistors, capacitors and potentiometers but NO solder, tools and NO BOLTS.

Please see the project page at http://www.projetg5.com/ for more details about the amp and support.The building instruction is available in french (please check the ProjetG5 Homepage) or in german (please check the DIY-section here).

Information about the manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.

Needed for:

Powertransformer 230 / 325 / 6,3 / G5 V3

Powertransformer 230 / 325 / 6,3 / G5 V3

Powertransformer for the G5 Amp-Project

Pri: 230 V (blue-blue)
Sec.1: 325 V @ 0,130 A (red-red)
Sec. 2: 6,3 V @ 3,3 A (brown-brown)

64,90 €

Outputtransformer SE 2k5-5k / 4-8-16

Outputtransformer SE 2k5-5k / 4-8-16

Outputtransformer for the G5 Amp Project
Single-Ended

Pri: 0-2k5-5k Ohm
Sec: 4-8-16 Ohm
Max DC Current: 160 mA
Power: 15 W

59,00 €

Customers who bought this product bought also the following products:

Grillcloth Marshall 1974x Hand wired series - 80 x 100 cm

Grillcloth Marshall 1974x Hand wired series - 80 x 100 cm

Texture and color like the original Marshall Bluesbreaker 1974x Weaves, same manufacturer
Size (W x L): ca. 80 x 100 cm (only available in this size)
Material: 100% treated paper
Price per pcs.
Actual shades may vary.

26,70 €

Rean NYS229 - 6,3 mm (1/4") phone jack, mono

Rean NYS229 - 6,3 mm (1/4") phone jack, mono

Jack socket, 2-pole, mono

for front panel mounting
2 contacts
with washer and securing nut
front panel thickness 3.5 mm

1,09 €

Neutrik NMJ4HC-S - 6,3 mm Mono switched

Neutrik NMJ4HC-S - 6,3 mm Mono switched

1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

Wide body and extremely durable contacts
Mates with all mono A-gauge plugs acc. EIA RS-453 standard

1,35 €

Elektrolyt 47 µF @ 63 Volt

Elektrolyt 47 µF @ 63 Volt

Type: Electrolytic capacitor
Capacitance: 47 µF
Voltage Rating: 63 V
Tolerance: - 10 % / +30 %
Operating Temperature Range: - 40°C / + 85 °C
Dimensions: Ø 8,5 mm x 17 mm
Termination Style: axial

1,10 €

F+T 47 µF @ 450 Volt, axial

F+T 47 µF @ 450 Volt, axial

Type: Aluminum Electrolytic Capacitors
Capacitance: 47 µF
Voltage Rating: 450 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 85 °C
Dimensions: Ø 18 mm x 39 mm
Termination Style: axial

2,80 €

Elektrolyt 4,7 µF @ 450V

Elektrolyt 4,7 µF @ 450V

Type: Electrolytic can capacitor
Capacitance: 4,7 µF
Voltage Rating: 450 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 105 °C
Dimensions: Ø 10 mm x 15 mm
Termination Style: radial
Grid: 5,0

0,50 €

Mini Rocker switch, 2 postion, DPST, ON-OFF, red

Mini Rocker switch, 2 postion, DPST, ON-OFF, red

Mini Rocker Switch

Version: DPST ON-OFF, red
Dimension: 21 x 15 mm, Snap-in mount
Rating: 6,5 A / 250VAC
Termination Style: solder lug / quick-connect terminals

0,55 €

Knob Aluminium black, 12 x 15,4 mm

Knob Aluminium black, 12 x 15,4 mm

Aluminium Knop black with diamond pattern

Diameter: 12 mm
High: 15,4 mm
with set screw
Shaft: for 6 mm shaft
pack of one knob

1,50 €

Elektrolyt 100 µF @ 160V

Elektrolyt 100 µF @ 160V

Type: Electrolytic can capacitor
Capacitance: 100 µF
Voltage Rating: 16 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 105 °C
Dimensions: Ø 16 mm x 25 mm
Termination Style: radial
Grid: 7,5

1,48 €

JJ 50+50 µF @500 V

JJ 50+50 µF @500 V

Type: Cancap
Capacitance: 50 + 50 µF
Voltage Rating: 500 V
Tolerance: -10 % / +30 %
Operating Temperature Range: - 25°C / + 70 °C
Dimensions: Ø 35,5 mm x 51,4 mm
Termination Style: radial, solder-lugs

7,90 €

Elektrolyt 22 µF @ 450V

Elektrolyt 22 µF @ 450V

Type: Electrolytic can capacitor
Capacitance: 22 µF
Voltage Rating: 450 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 105 °C
Dimensions: Ø 16 mm x 32 mm
Termination Style: radial
Grid: 7,5

1,15 €

Elektrolyt 2,2 µF @ 450V

Elektrolyt 2,2 µF @ 450V

Type: Electrolytic can capacitor
Capacitance: 2,2 µF
Voltage Rating: 450 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 105 °C
Dimensions: Ø 10 mm x 12 mm
Termination Style: radial
Grid: 5,0

0,41 €

Elektrolyt 1 µF @ 63V

Elektrolyt 1 µF @ 63V

Type: Electrolytic can capacitor
Capacitance: 1 µF
Voltage Rating: 63 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 105 °C
Dimensions: Ø 5 mm x 11 mm
Termination Style: radial
Grid: 2

0,07 €

Diode UF5408

Soft Recovery Ultrafast Rectifier
Maximum repetitive peak reverse voltage: 1000V
Maximum average forward rectified current: 3,0 A

0,55 €

Battery Clip 9 V

Battery Clip 9 V

Battery Clip 9 V

0,61 €
