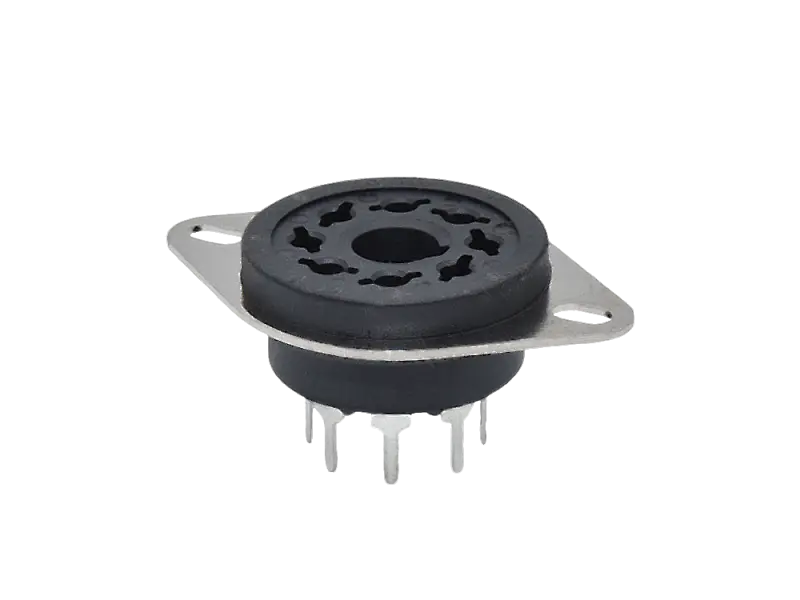

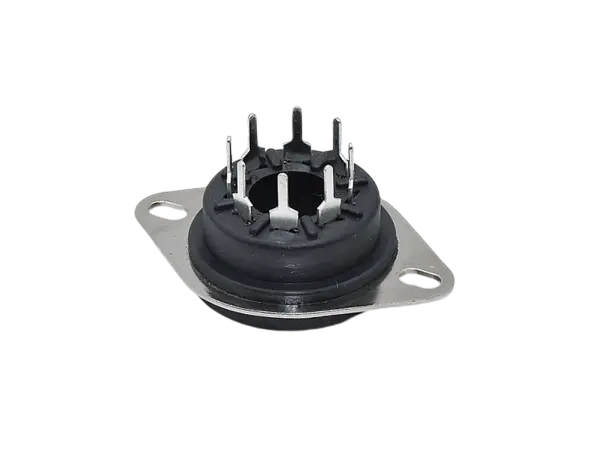

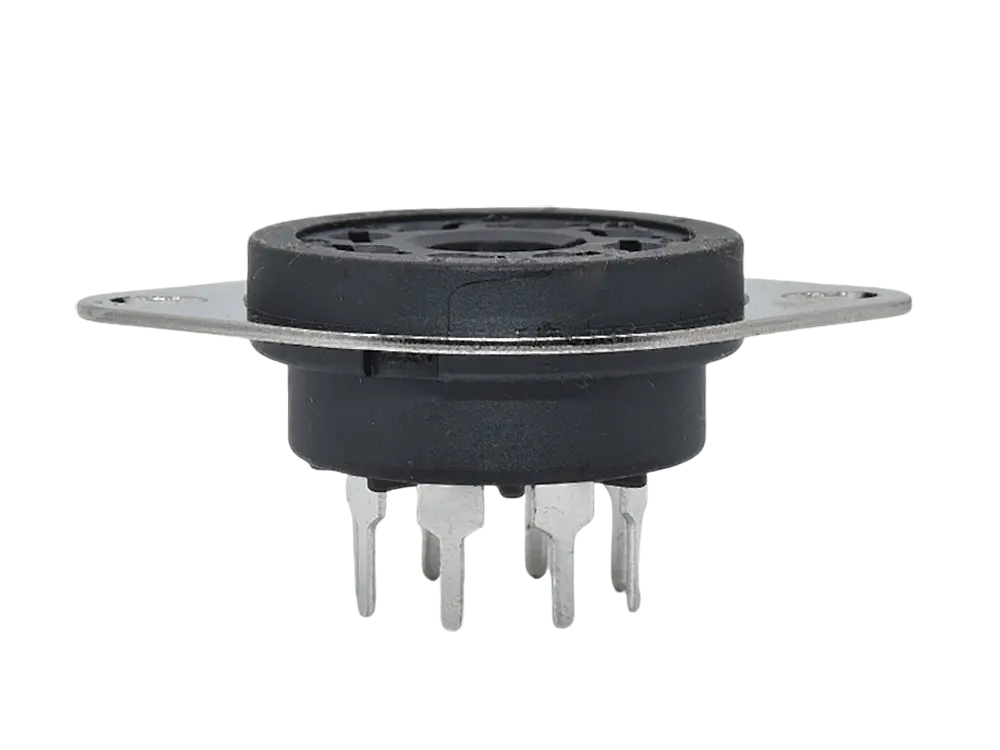

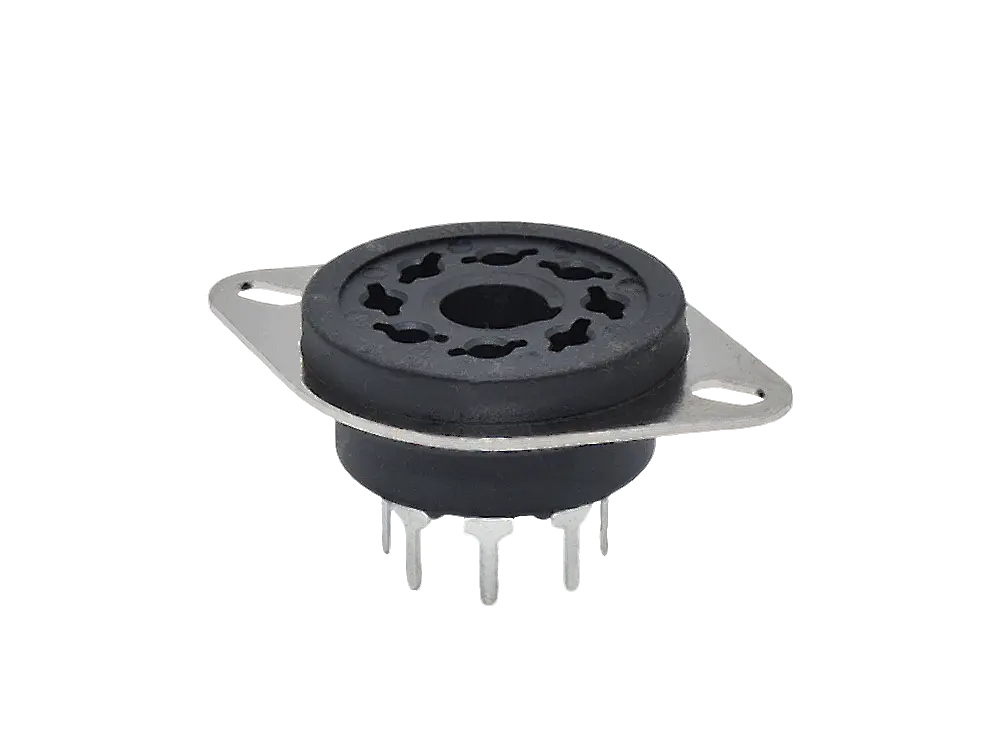

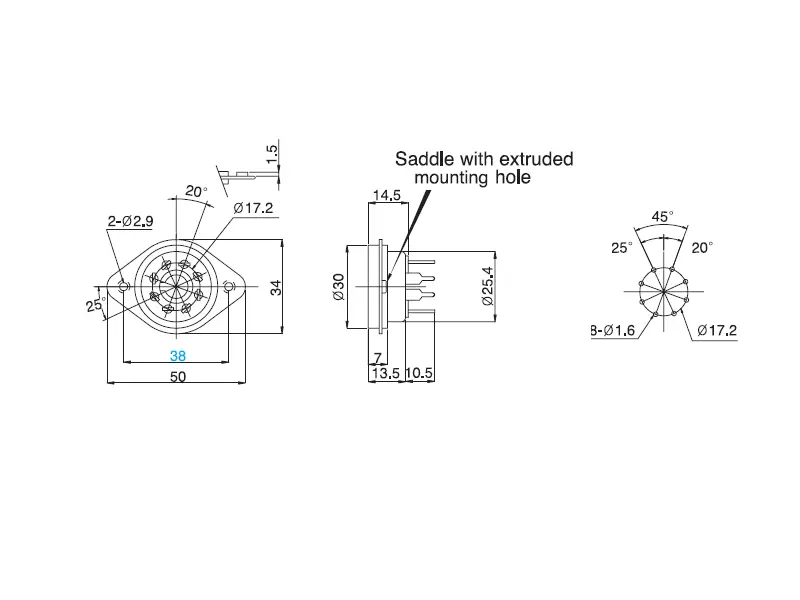

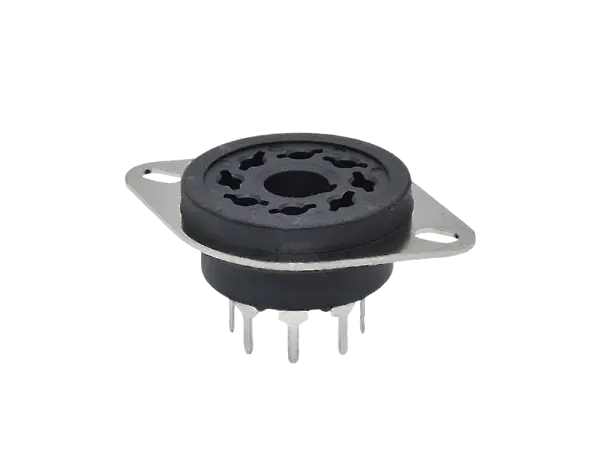

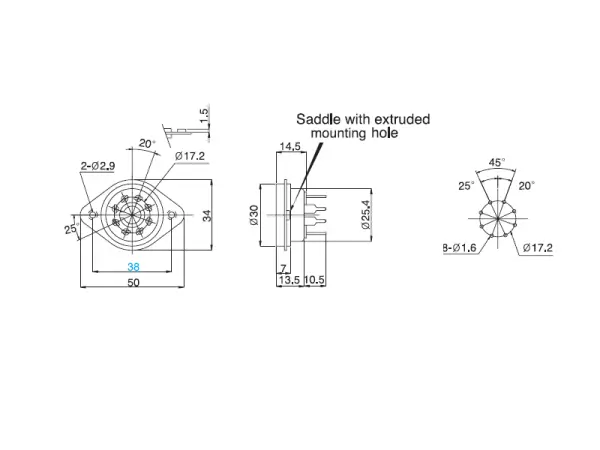

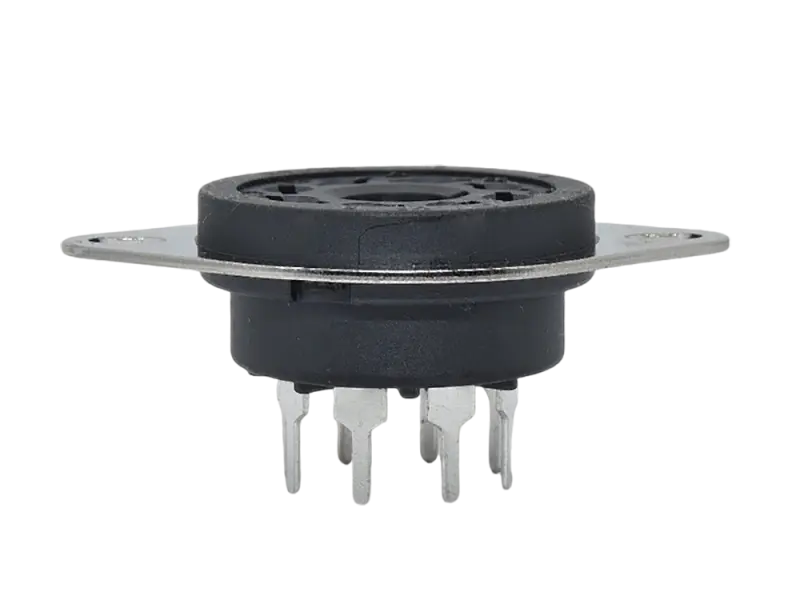

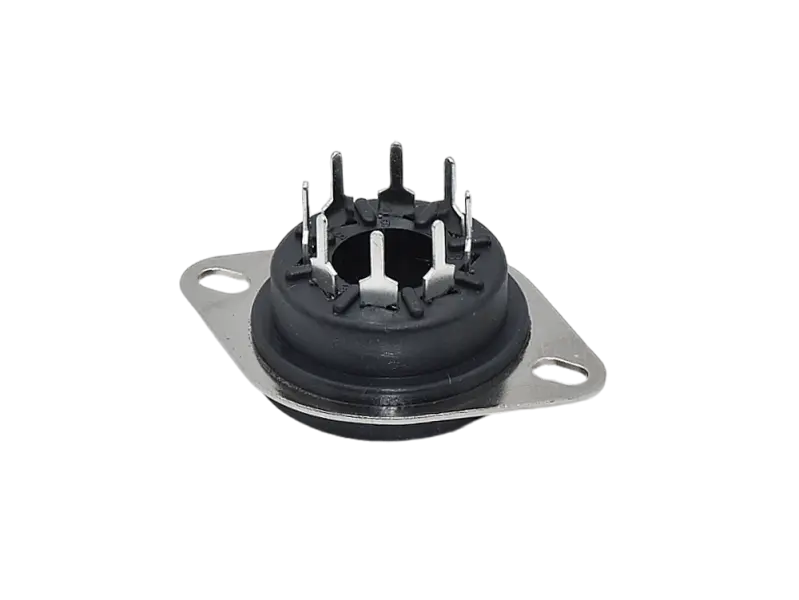

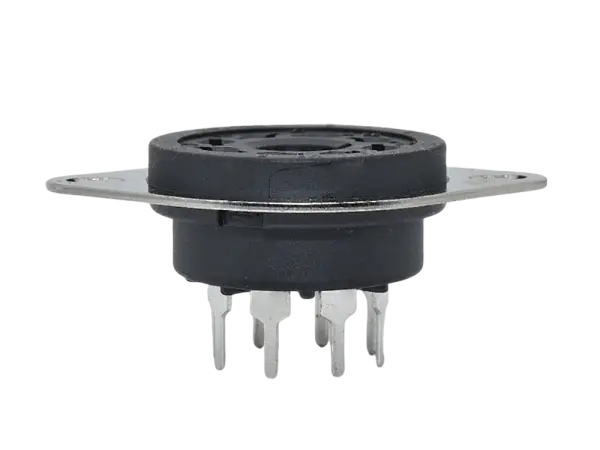

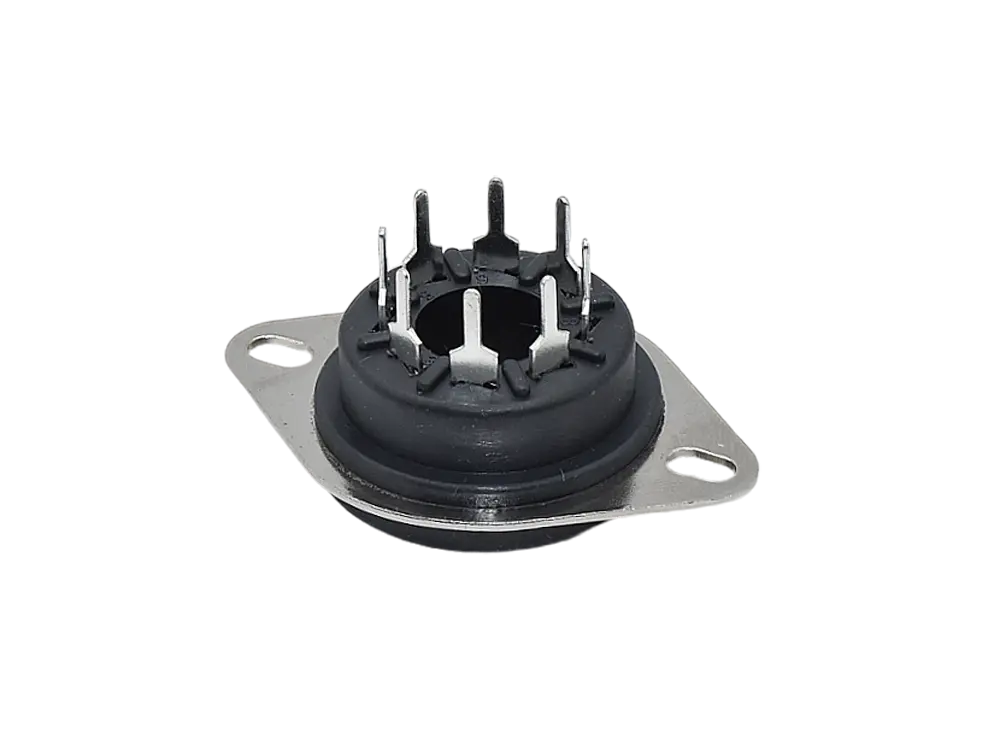

Belton Oktal Sockel VTB8-PTS, PCB, black

• Designed for drop in replacement of original units.
• Physically, parts were designed to look similar to original factory units (where possible).
• Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
• Pri: 120 / 240 V 50/60 Hz
• Sec.1: 600 VCT @ 120 mA
• Sec.2: 25 VCT @ 250m A
• Sec.3: 6.3 V @ 4 A

Files:

• Datasheet

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 35 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Color and manufacturer may differ from the picture shown

Images are for reference only. See Product Specifications

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 30 mm x 49 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 18 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Same grillcloth used by Marshall, Item number FRET00026, black
• Size (L x W): ca. 100 x 80 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

• FAQ Grillcloth
