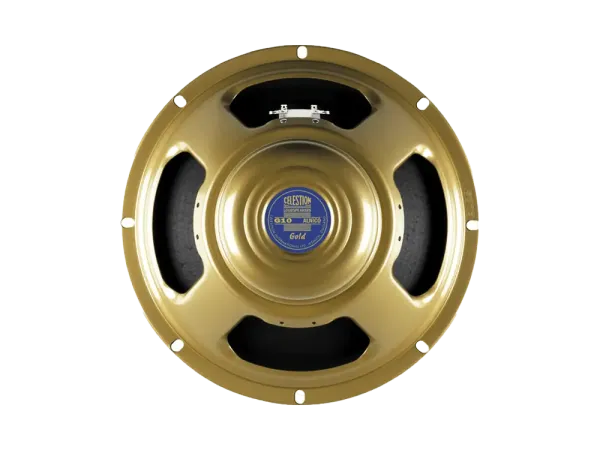

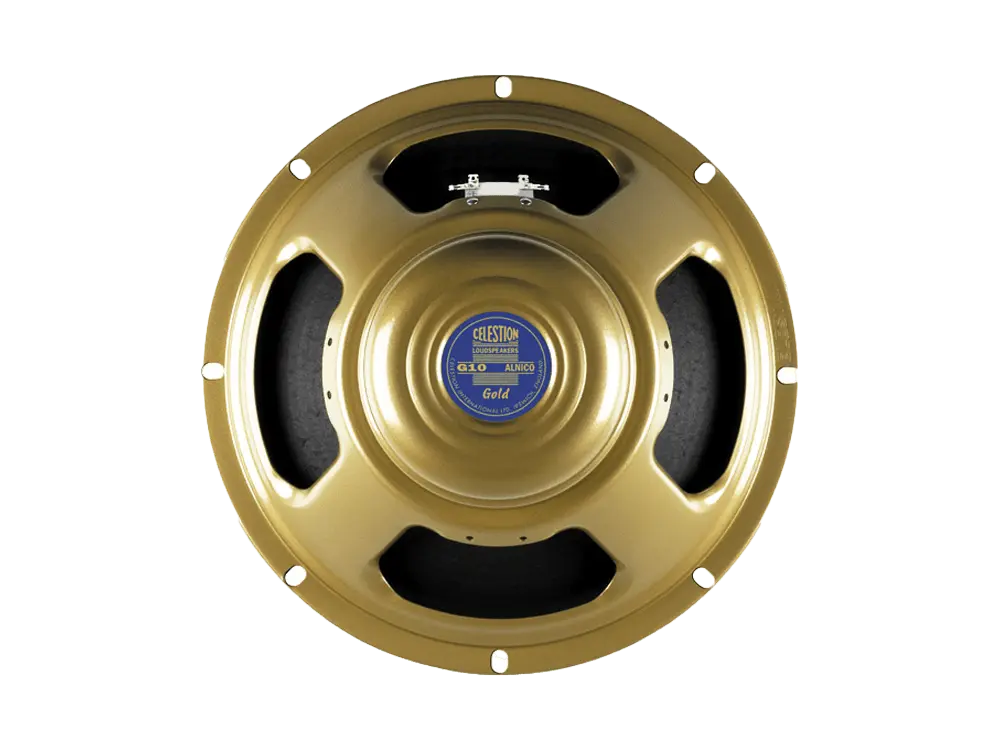

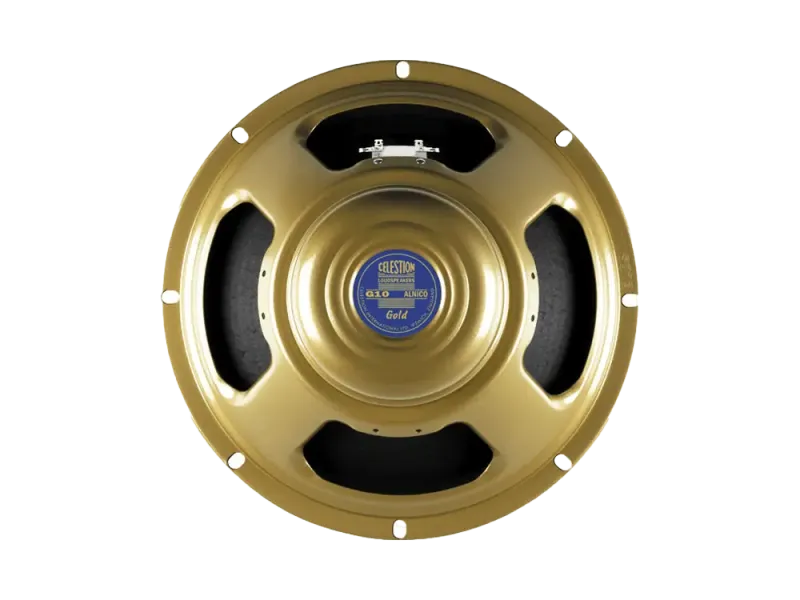

Celestion Alnico G10 Gold 10" / 40 W / 8 Ohms - MADE IN UK

Following the great reviews we received for the Gold 12", we realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10" driver.The G10 Gold is the ultimate 10" speaker, blending unmistakable Alnico class with a rich low-end, creamy mid-range and vintage chiming top-end. Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4x10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4x12 cabinets. General Specifications

• Nominal diameter: 10", 254mm
• Power rating: 40Wrms
• Nominal impedance: Available 8Ω or 15Ω
• Sensitivity: 98dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Alnico

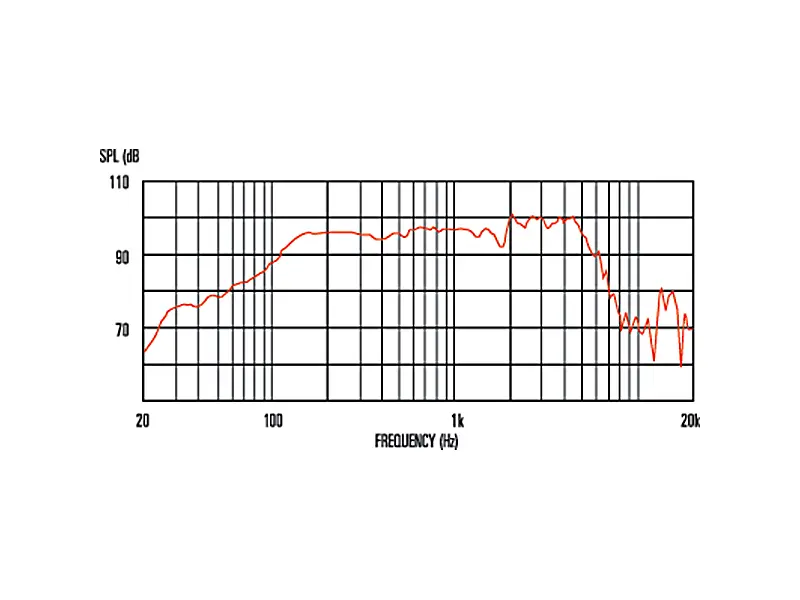

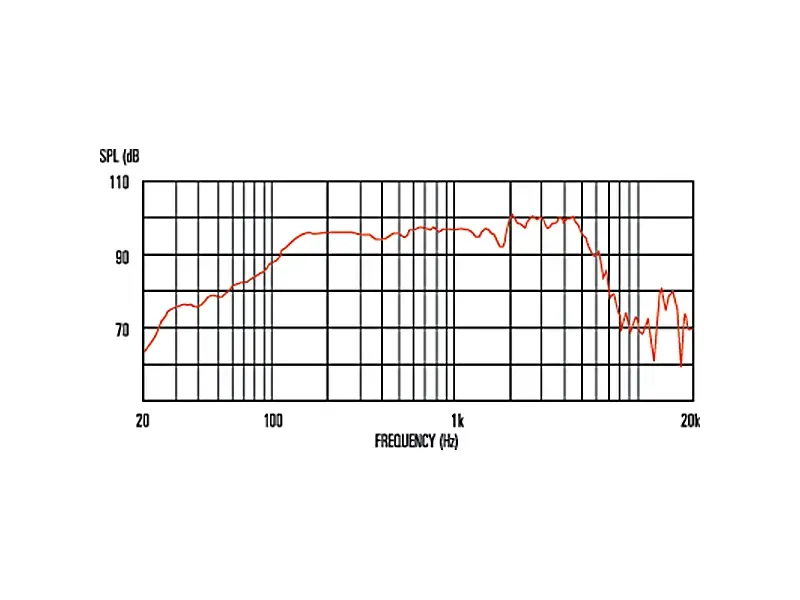

• Frequency range: 80-6000Hz
• Resonance frequency, Fs: 80Hz
• DC resistance, Re: 6.66Ω and 13.56Ω

Mounting Information

• Cut-out diameter: 9.0", 229mm
• Diameter: 10.1", 256mm
• Magnet structure diameter: 4.7", 119mm
• Mounting slot dimensions: 0.25", 6.5mm Ø
• Mounting slot PCD: 9.6", 244mm
• Number of mounting slots: 8
• Overall depth: 5.3", 135mm
• Unit weight: 6.0lb, 2.7kg
