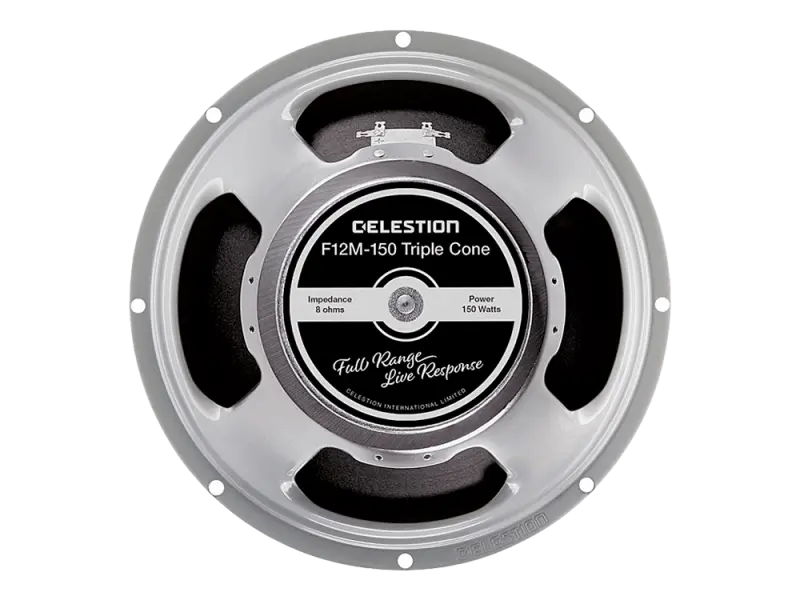

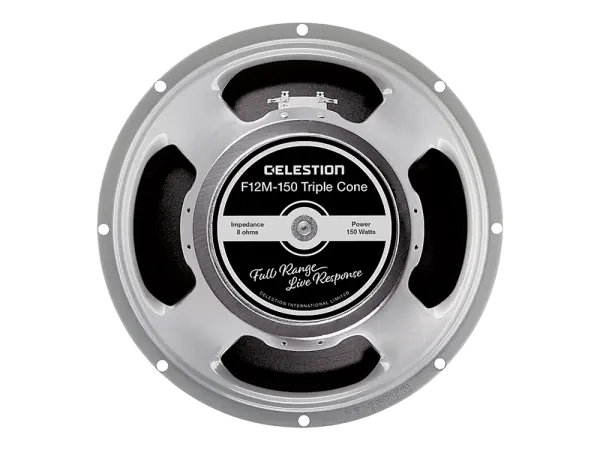

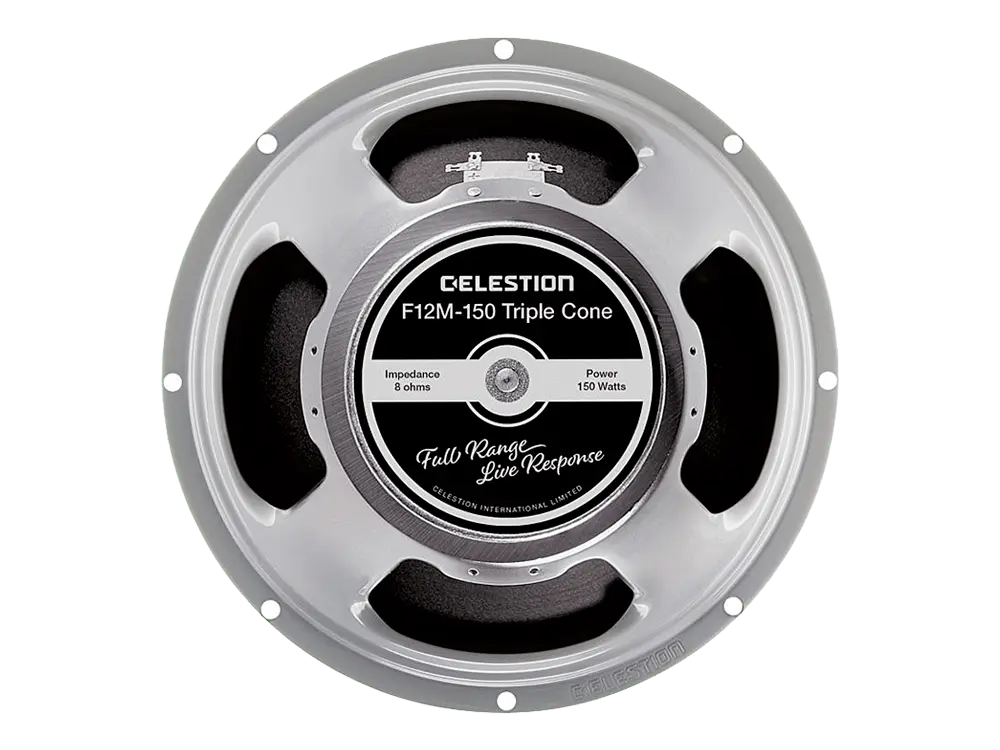

Celestion F12M-150 Triple Cone - 12" / 150W / 8 Ohm
The F12M-150 is a full range, LIVE response speaker, purpose designed for use with amp modellers and IRs.
Its unique design features two additional tweeter cones integrated into the main woofer cone (making it “Triple Cone”).
This enables the speaker to deliver near full-range frequency performance: from 60Hz up to 12kHz, for a rich and detailed sound, whatever your set-up.
Designed with Celestion’s Pro Audio know-how, response is flat and neutral, ensuring no unwanted colourations that could overwhelm the input signal.
But with an optimised woofer cone and lighter moving mass the F12M-150 Triple Cone is designed to closely mimic the responsiveness of a traditional guitar speaker,
delivering all the tactile feel you would expect from playing through a conventional guitar rig. It’s not just FRFR, it’s Full Range LIVE Response.
Specifications
Parameters
Mounting Information
Its unique design features two additional tweeter cones integrated into the main woofer cone (making it “Triple Cone”).
This enables the speaker to deliver near full-range frequency performance: from 60Hz up to 12kHz, for a rich and detailed sound, whatever your set-up.
Designed with Celestion’s Pro Audio know-how, response is flat and neutral, ensuring no unwanted colourations that could overwhelm the input signal.
But with an optimised woofer cone and lighter moving mass the F12M-150 Triple Cone is designed to closely mimic the responsiveness of a traditional guitar speaker,
delivering all the tactile feel you would expect from playing through a conventional guitar rig. It’s not just FRFR, it’s Full Range LIVE Response.
Specifications
- Nominal diameter 305mm / 12in
- Power rating 150W
- Rated impedance 8Ω
- Sensitivity 97dB
- Chassis type Pressed steel
- Magnet type Ceramic
- Magnet weight 0.9kg / 35oz
- Voice coil diameter 2in / 51mm
- Voice coil material Round copper
- Frequency range 60-12,000Hz
- Resonance frequency, Fs 70Hz
- DC resistance, Re 6.07Ω
Parameters
- D 0.26m / 10.24in
- Fs 69.4Hz
- Mms 44.772g / 1.58oz
- Qms 10.446
- Qes 0.992
- Qts 0.906
- Re 6.07
- Vas 46.89l / 1.66ft3
- BI 10.923
- Cms 0.118
- Rms 1.868
- Le (at 1kHz) 0.12
Mounting Information
- Cut-out diameter 283mm / 11.1in
- Diameter 283mm / 11.1in
- Magnet structure diameter 145mm / 5.7in
- Mounting hole dimensions 7.9mm / 0.31in Ø
- Mounting hole PCD 297mm / 11.7in
- Number of mounting holes 8
- Chassis depth (inc gasket) 94mm / 3.7in
- Magnet depth 33mm / 1.3in
- Overall depth 127mm / 5in
- Unit weight 3.6kg / 7.9lb
