It's hard to escape the sound of the G12H, just listen to any Hendrix recording and chances are you'll be hearing a whole raft of them powering the guitar out of the mix.

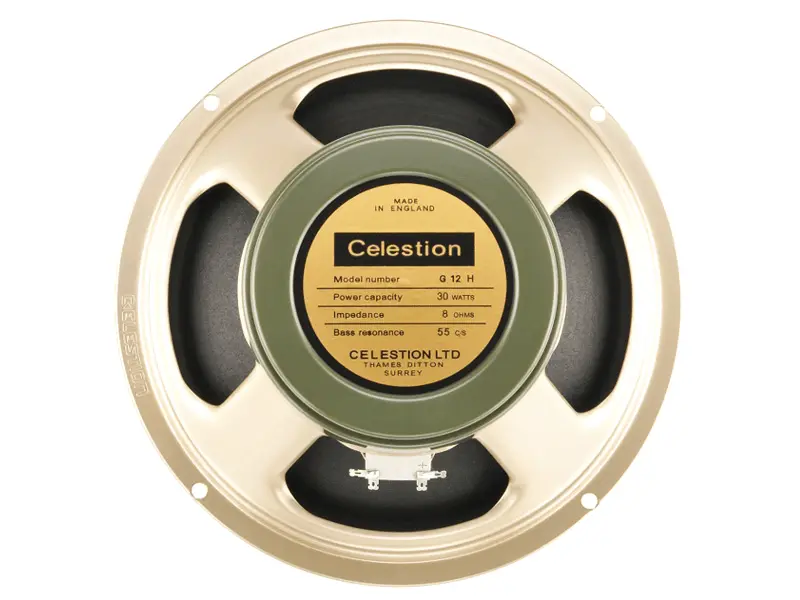

These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. Unsurpassed in a 4x12 for cranking out towering, huge power chords, the Heritage Series G12H (55) features the 55c/s 'bass' cone. This model is famous for its thick syrupy tones, with a deep growling back end, densely complex mid-range and a finely detailed top end.
General Specifications
- Nominal diameter: 12", 305mm
- Power rating: 30Wrms
- Nominal impedance: Available 8Ω or 15Ω
- Sensitivity: 100dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.75", 44.5mm
- Magnet type: Ceramic
- Magnet weight:50oz, 1.42kg

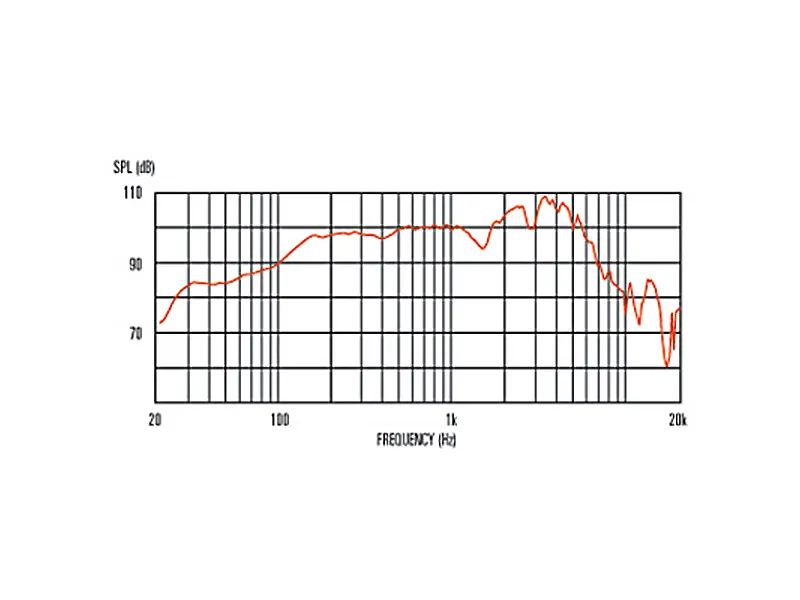

- Frequency range: 55-5000Hz
- Resonance frequency, Fs: 55Hz
- DC resistance, Re: 6.53Ω and 12.11Ω
Mounting Information
- Cut-out diameter: 11.1", 283mm
- Diameter: 12.2", 309mm
- Magnet structure diameter: 6.6", 168mm
- Mounting slot PCD: 11.7", 297mm
- Number of mounting slots: 4
- Overall depth: 5.3", 135mm
- Unit weight: 10.4lb, 4.7kg
