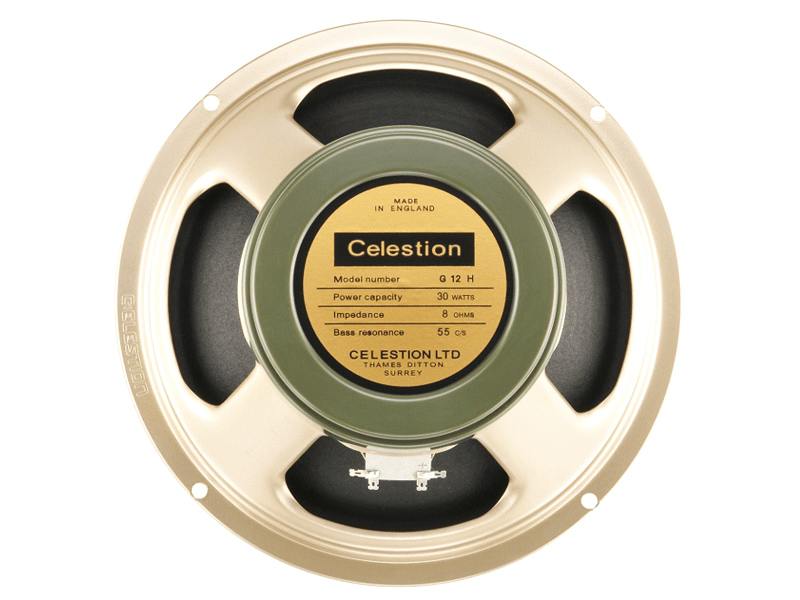

Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Preview: Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Preview: Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Mobile Preview: Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK
Mobile Preview: Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK

Celestion G12H(55) Heritage 55 Hz, 12" / 30 W / 8 Ohm - MADE IN UK

Product No.:
ce-t1234
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
6.4 kg per piece
180,00 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

It's hard to escape the sound of the G12H, just listen to any Hendrix recording and chances are you'll be hearing a whole raft of them powering the guitar out of the mix.

These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. Unsurpassed in a 4x12 for cranking out towering, huge power chords, the Heritage Series G12H (55) features the 55c/s 'bass' cone. This model is famous for its thick syrupy tones, with a deep growling back end, densely complex mid-range and a finely detailed top end.

General Specifications

  • Nominal diameter: 12", 305mm
  • Power rating: 30Wrms
  • Nominal impedance: Available 8Ω or 15Ω
  • Sensitivity: 100dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75", 44.5mm
  • Magnet type: Ceramic
  • Magnet weight:50oz, 1.42kg

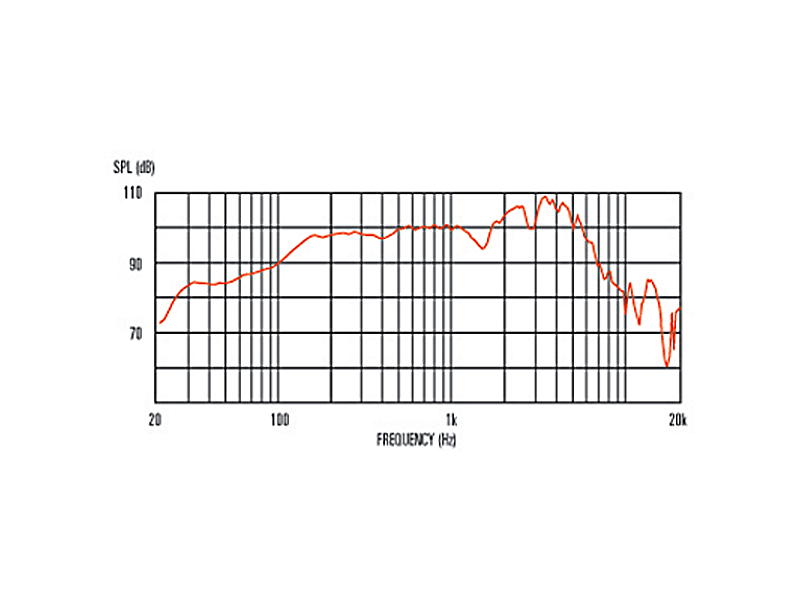

  • Frequency range: 55-5000Hz
  • Resonance frequency, Fs: 55Hz
  • DC resistance, Re: 6.53Ω and 12.11Ω
Mounting Information
  • Cut-out diameter: 11.1", 283mm
  • Diameter: 12.2", 309mm
  • Magnet structure diameter: 6.6", 168mm
  • Mounting slot PCD: 11.7", 297mm
  • Number of mounting slots: 4
  • Overall depth: 5.3", 135mm
  • Unit weight: 10.4lb, 4.7kg
