Celestion G12H Anniversary 12" / 30 W / 16 Ohm - MADE IN UK

Originally re-released a little over a decade ago, the G12H remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.

With a strong, aggressive low-end and powerful low-mids, the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones, easily cutting through loud stage levels for chord work, and imparting a hard edge to single notes.

A favourite in the 'boutique' amplifier market, the G12H is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

General Specifications

• Nominal diameter: 12", 305mm
• Power rating: 30Wrms
• Nominal impedance: Available 8Ω or 16Ω
• Sensitivity: 100dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 50oz, 1.42kg

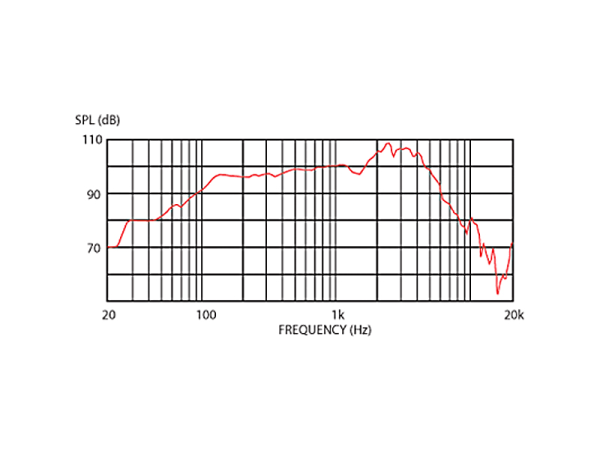

• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 85Hz
• DC resistance, Re: 6.7Ω and 13.1Ω

Mounting Information

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 6.1", 156mm
• Mounting slot dimensions: 0.31",7.9mmØ
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.3", 135mm
• Unit weight: 10.4lb, 4.7kg
