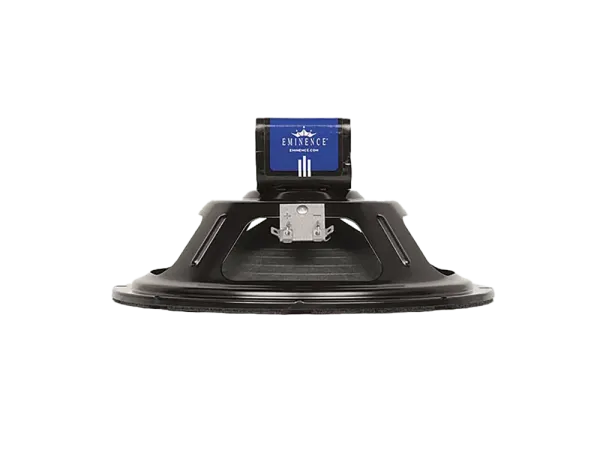

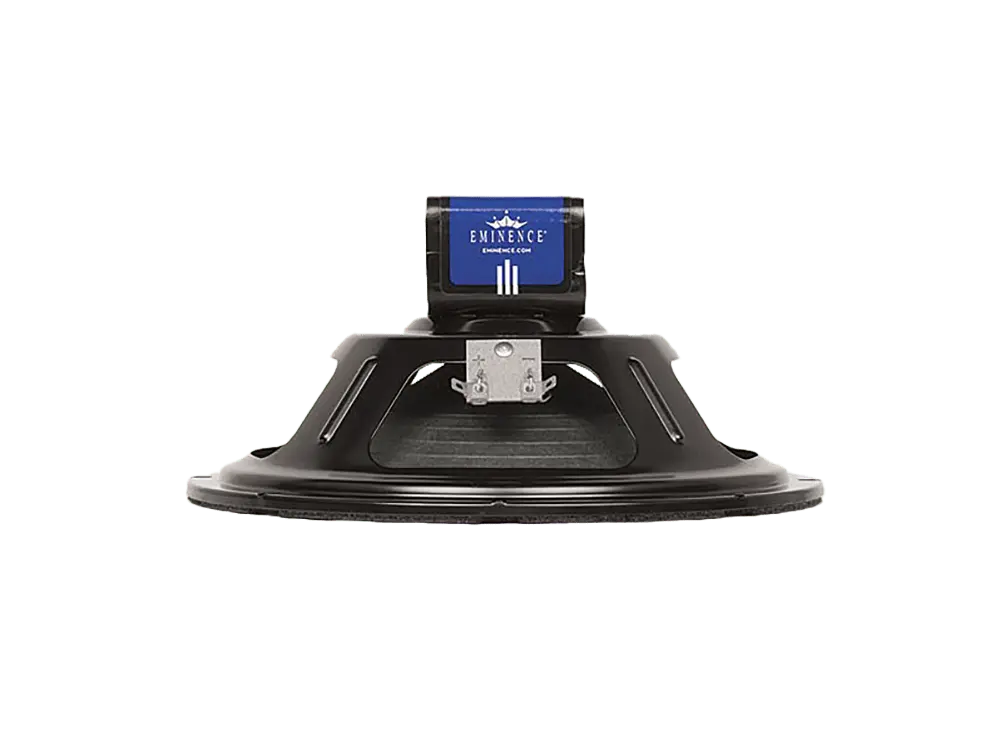

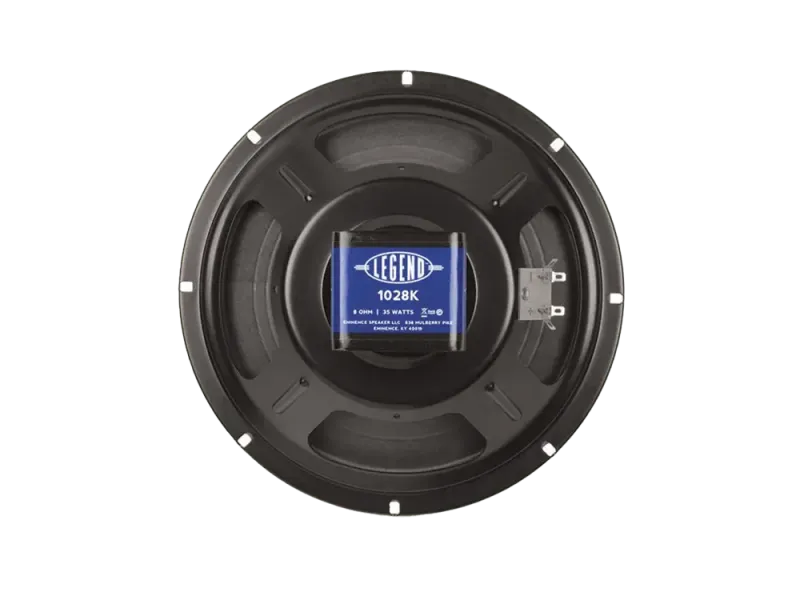

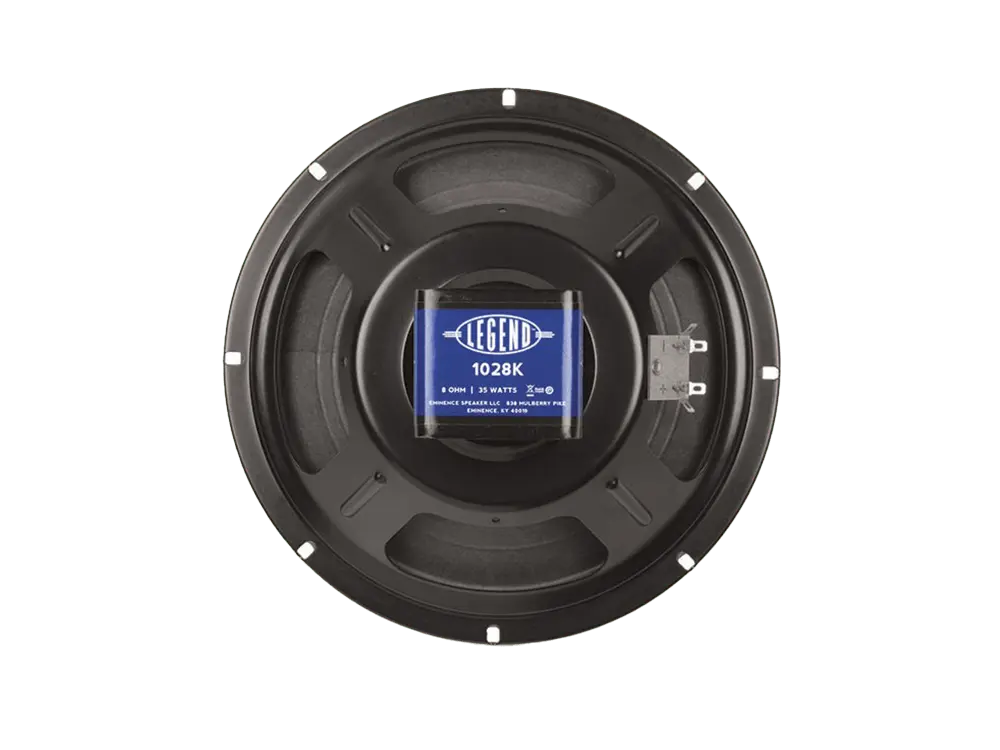

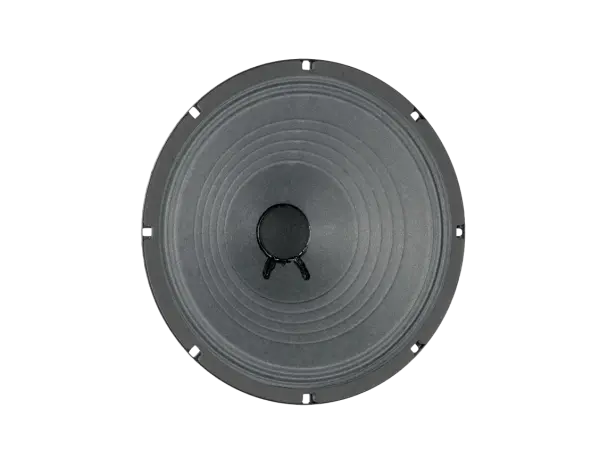

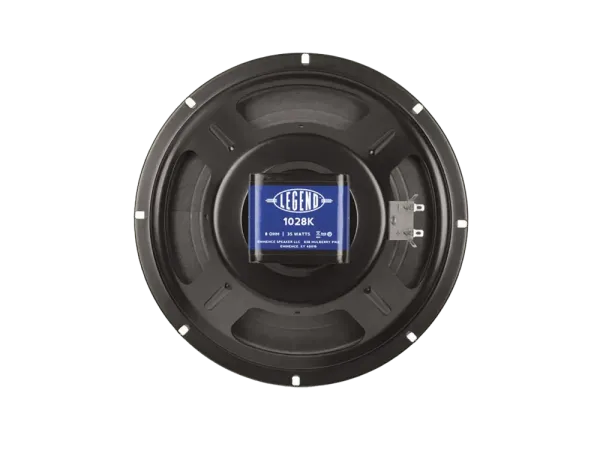

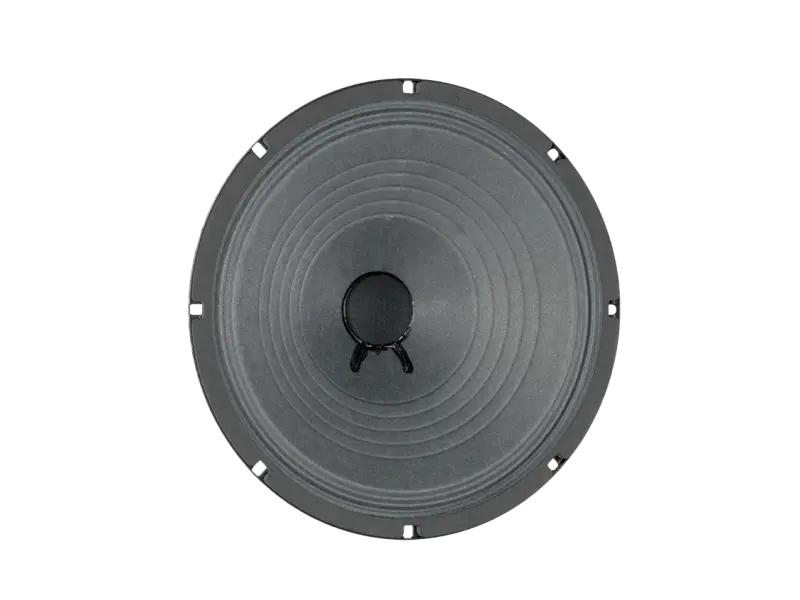

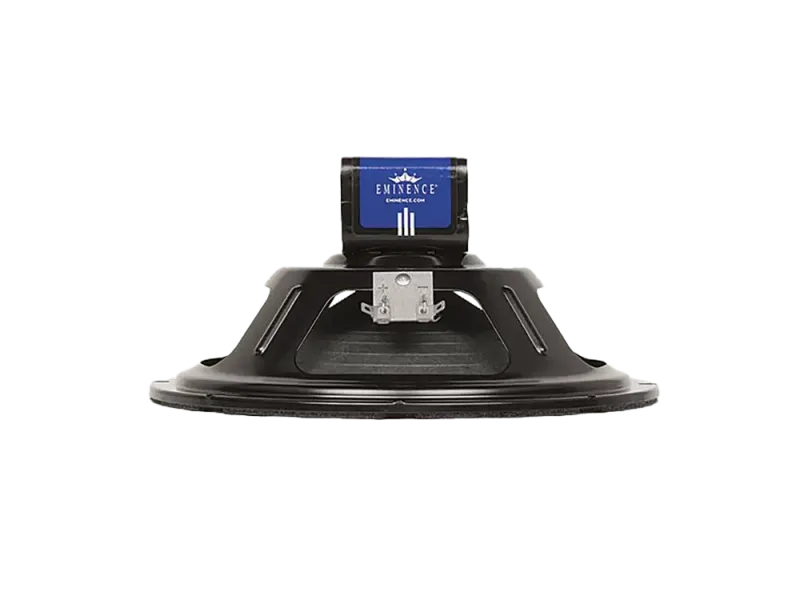

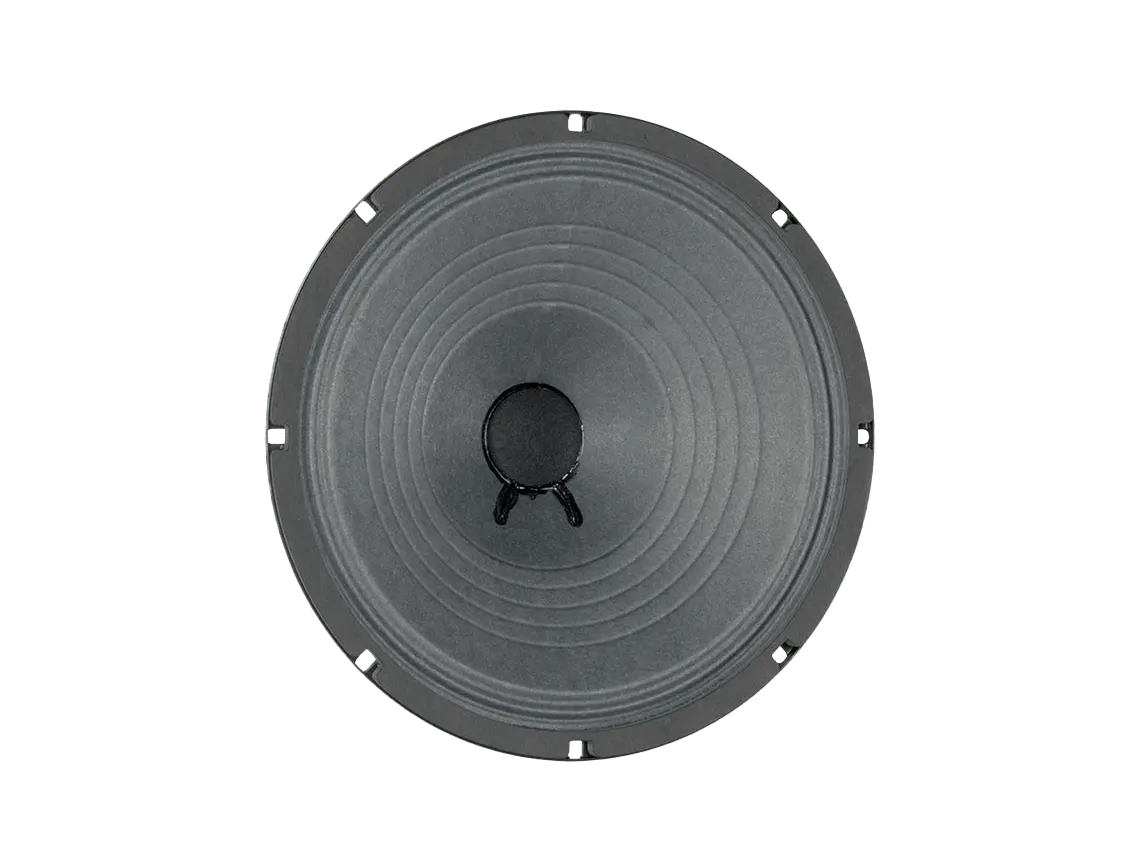

The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.
Specifications
- Nominal Basket Diameter: 10", 254 mm
- Nominal Impedance*: 8 Ω
- Power Rating*
- Program Power: N/A
- Watts: 35 W
- Resonance: 95 Hz
- Usable Frequency Range: 100 Hz - 5 kHz
- Sensitivity*: 97.4 dB
- Magnet Weight: 6 oz.
- Gap Height: 0.25", 6.4 mm
- Voice Coil Diameter: 1", 25 mm
THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 95 Hz
- DC Resistance (Re): 5.8 Ω
- Coil Inductance (Le): 0.51m H
- Mechanical Q (Qms): 17.96
- Electromagnetic Q (Qes): 1.61
- Total Q (Qts): 1.47
- Compliance Equivalent Volume (Vas): 31.5 liters / 1.11 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 72.4 cc
- Mechanical Compliance of Suspension (Cms): 0.19 mm/N
- BL Product (BL): 5.7 T-M
- Diaphragm Mass Inc. Airload (MMs): 15 grams
- Efficiency Bandwidth Product (EBP): 59
- Maximum Linear Excursion (Xmax): 2.1 mm
- Surface Area of Cone (Sd): 344.9 cm2
- Maximum Mechanical Limit (Xlim): N/A
MOUNTING INFORMATION
- Driver Volume Displaced: 0.027 cu.ft. / 0.77 liters
- Overall Diameter: 10.11", 256.8 mm
- Baffle Hole Diameter: 9.13", 231.9 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: N/A
- Mounting Holes Diameter: 0.22", 5.6mm
- Mounting Holes B.C.D.: 9.6", 243.8mm
- Depth: 4.8", 121.9 mm
- Net Weight: 2.9 lbs, 1.32 kg
- Shipping Weight: 4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Alnico magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Solid composition felt dust cap
