Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multidriver designs.
Specifications
- Nominal Diameter: 10 " / 254 mm
- Voice Coil: 2 " / 50.8 mm
- Overall diameter: 256.1 mm
- Pitch Circle Diameter: 245.4 mm
- Section Diameter: 229.7 mm
- Diameter of fixing holes: 6.4 mm
- Depth: 108 mm
- Nominal Impedance: 4 Ohm(s)
- Nominal Load Capacity: 200 W
- maximum rated load: 400 W
- Sensitivity (1 W / 1 m): 92 dB

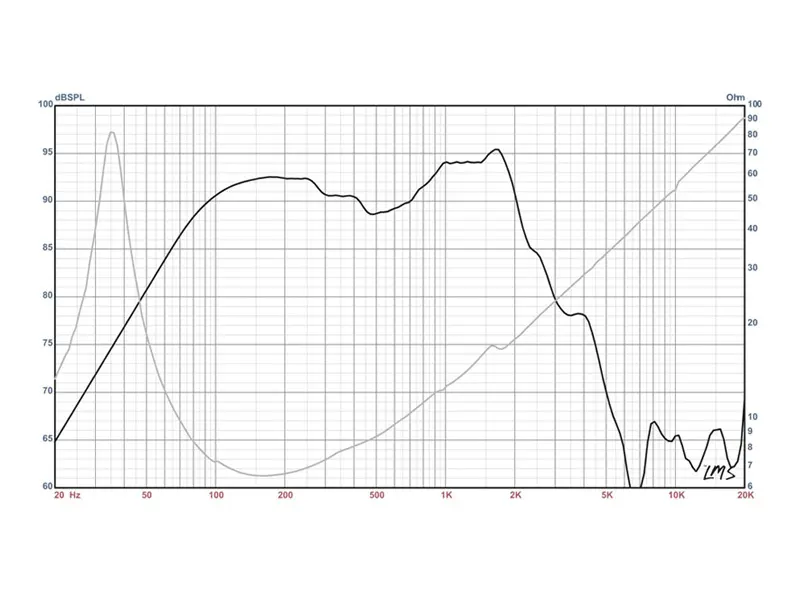

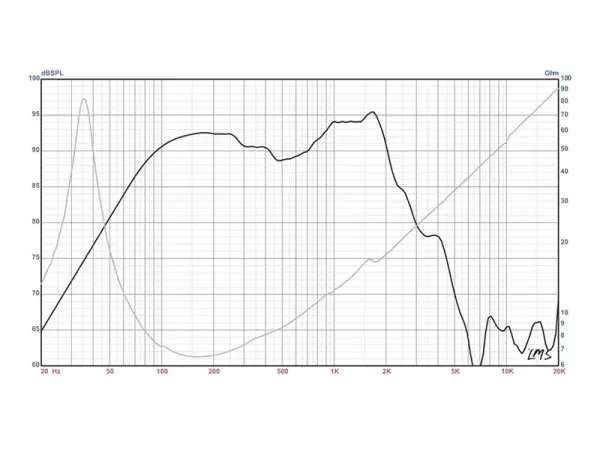

- Frequency response: 40 - 2000 Hz
- Voice Coil Material: copper
- Magnet: Ferrite
- Depth of the magnetic gap: 7.92 mm
- Thiele & Small Parameter
- Fs (Resonance Frequency): 35 Hz
- Re (DC resistance): 5.59 Ohm(s)
- Qms (mechanical quality): 5.36
- Le (inductance of the voice coil): 0.83 mH
- Qes (electrical quality): 0.47
- Qts (overall quality): 0.43
- Vas (equivalent volume): 91.2
- Mms (moving mass): 38 g
- BL (power factor): 10 T/m
- Xmax (maximum displacement): 6.2 mm
- Cms (elasticity of the suspension): 0.54 mm/N
- Sd (membrane area): 334.5 cm²
- Weight: 4,13 kg
