Hammond 1750E for Fender OT 125A10B / 022913 Princeton

Mobile Preview: Hammond 1750E for Fender OT 125A10B / 022913 Princeton

Hammond 1750E for Fender OT 125A10B / 022913 Princeton

Product No.:: ha1750e
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 0.5 kg per piece

50,50 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

Output Transformer 125A10B / 022923 Push-Pull
for Princeton Reverb, Tweed Deluxe
Pri: 8500 Ohm / CT
Sec: 8 Ohm
Power: 15 Watt

Files:

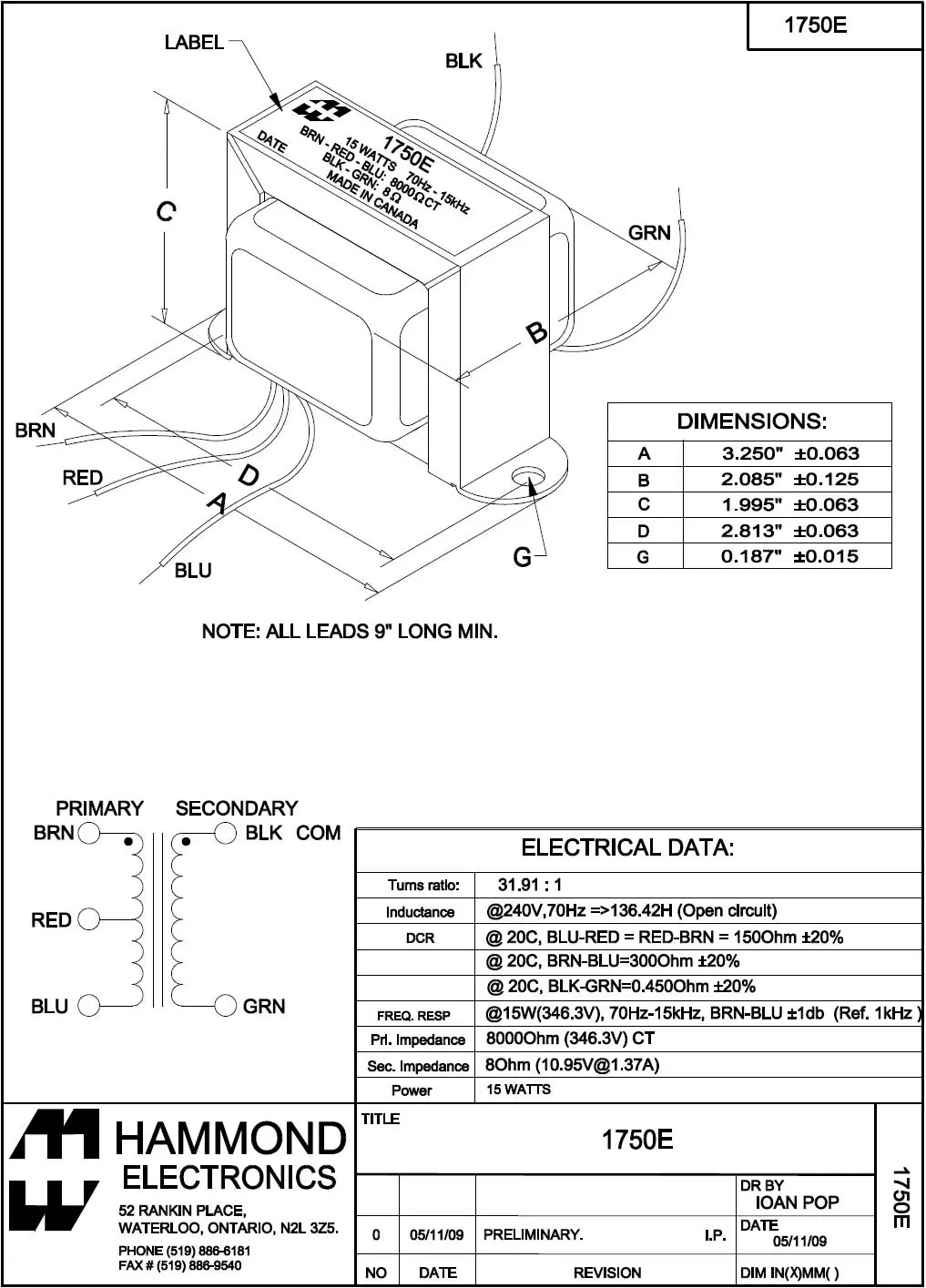

Datasheet
