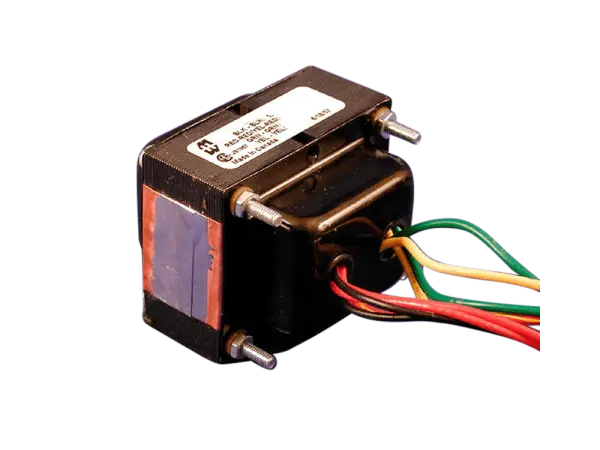

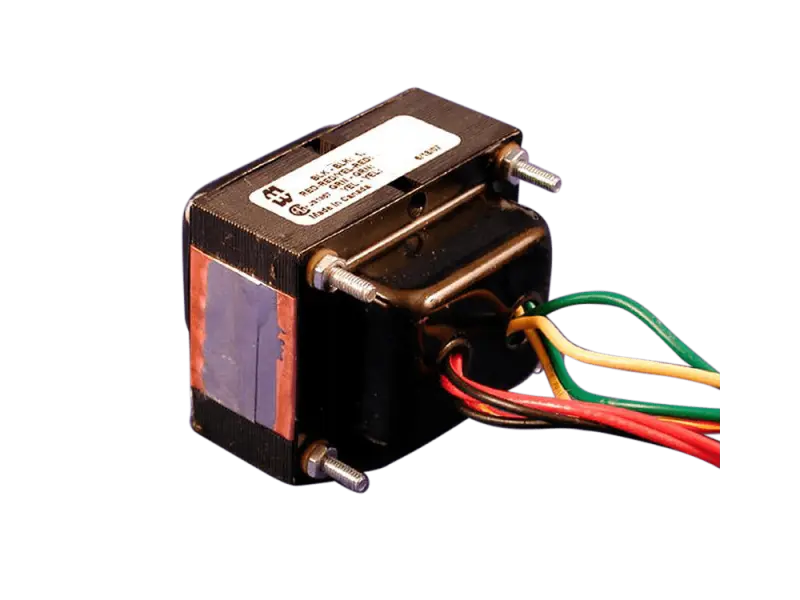

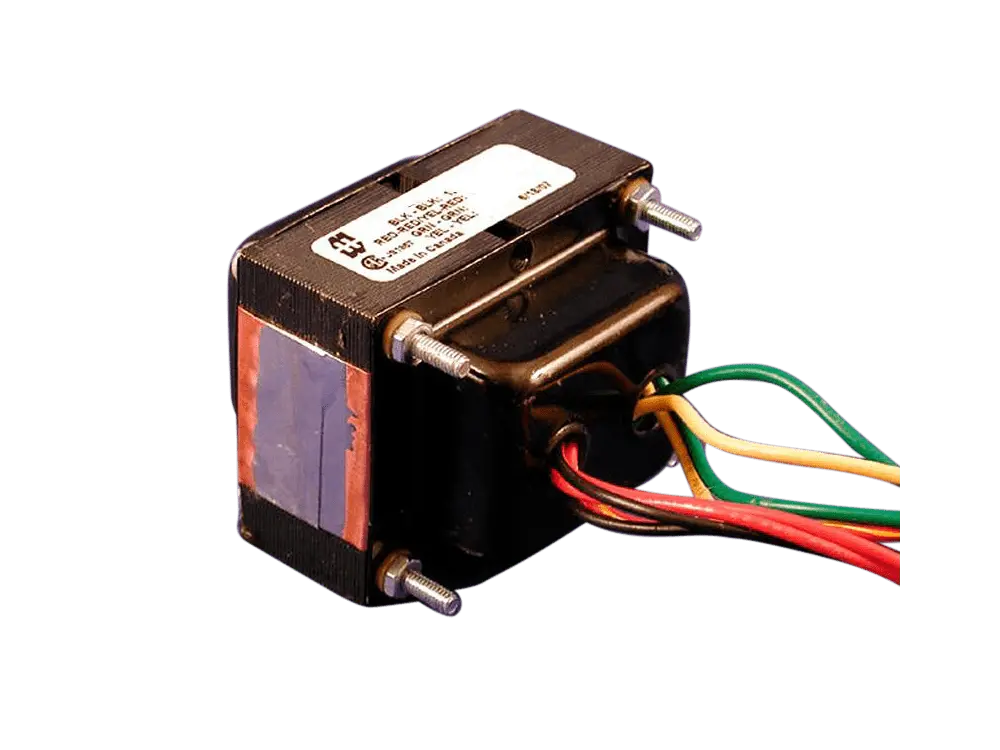

Hammond 290CAX for Fender Universal 125P1B / 022772

Mobile Preview: Hammond 290CAX for Fender Universal 125P1B / 022772

Hammond 290CAX for Fender Universal 125P1B / 022772

Product No.:: ha290cax
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 2.1 kg per piece

96,00 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

This is the universal version of the 290AEX
Powertransformer for Champ, Vibro Champ, Princeton, Princeton Reverb, Tweed Deluxe
Fender Part Number 125P1B and 022772
Pri: Dual Voltage 120 or 240 V 50/60 Hz
Sec: 630 VAC or 550 VAC

Files:

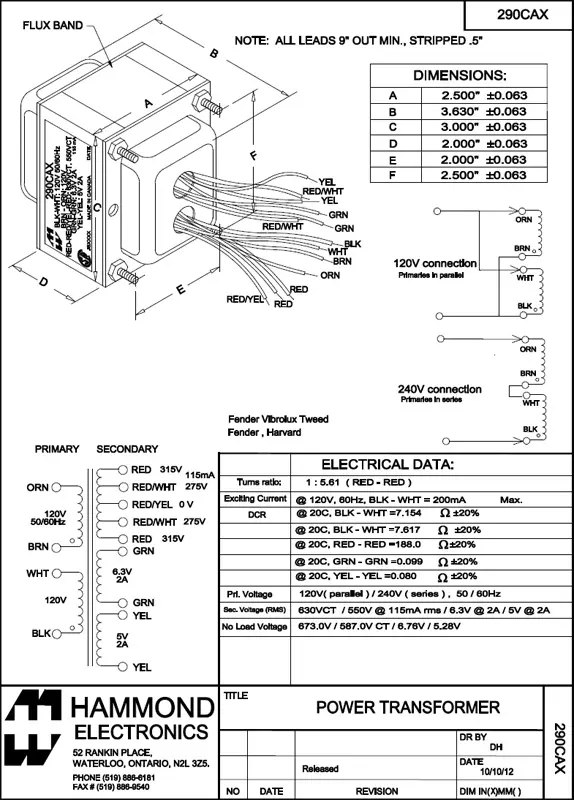

Datasheet

Information about the manufacturer

Herstellerinformationen | Manufacturer Information
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. N.
Guelph, Ontario
Canada N1H 1E5
https://www.hammondmfg.com

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de

Hammond Manufacturing is a renowned manufacturer of electrical and electronic products based in Canada. The company was founded in 1917 and has since established a reputation for producing high-quality enclosures, transformers, electronic components, and other device components.

Hammond Mfg is distinguished by its many years of experience, innovative products, and rigorous quality controls. Hammond's products are used in a variety of industries, including electronics, telecommunications, medical technology, industrial automation, and consumer electronics.

Tube-Town has been working with Hammond Mfg for decades and is a distributor for all types of transformers, chokes, and reactors, with a focus on tube technology, as well as enclosures and chassis.
