Hammond 291BEX for Fender Power 125P23D / 041316 UPGRADE Deluxe

Product No.:
ha291bex
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
2.7 kg per piece
154,20 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

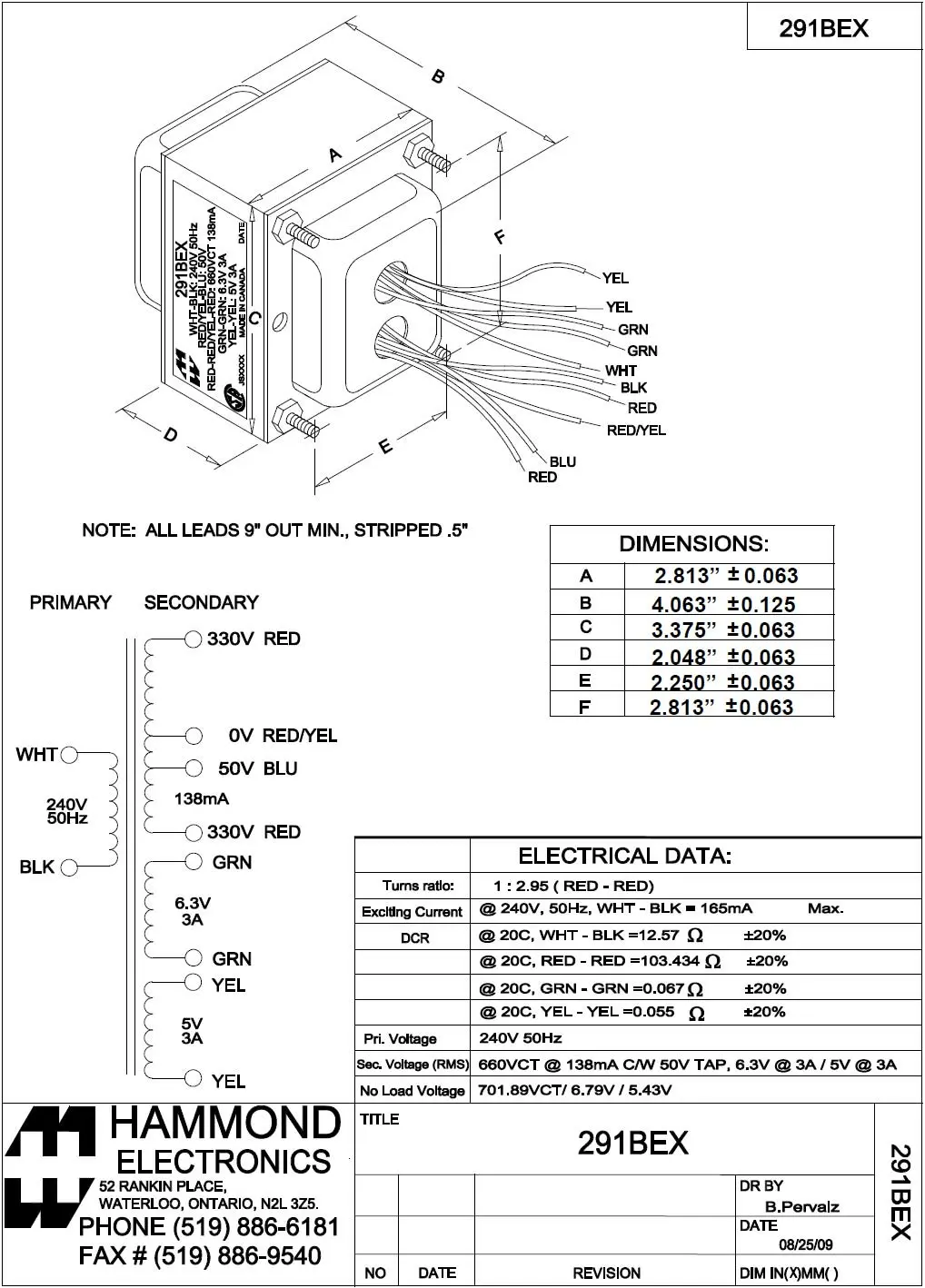

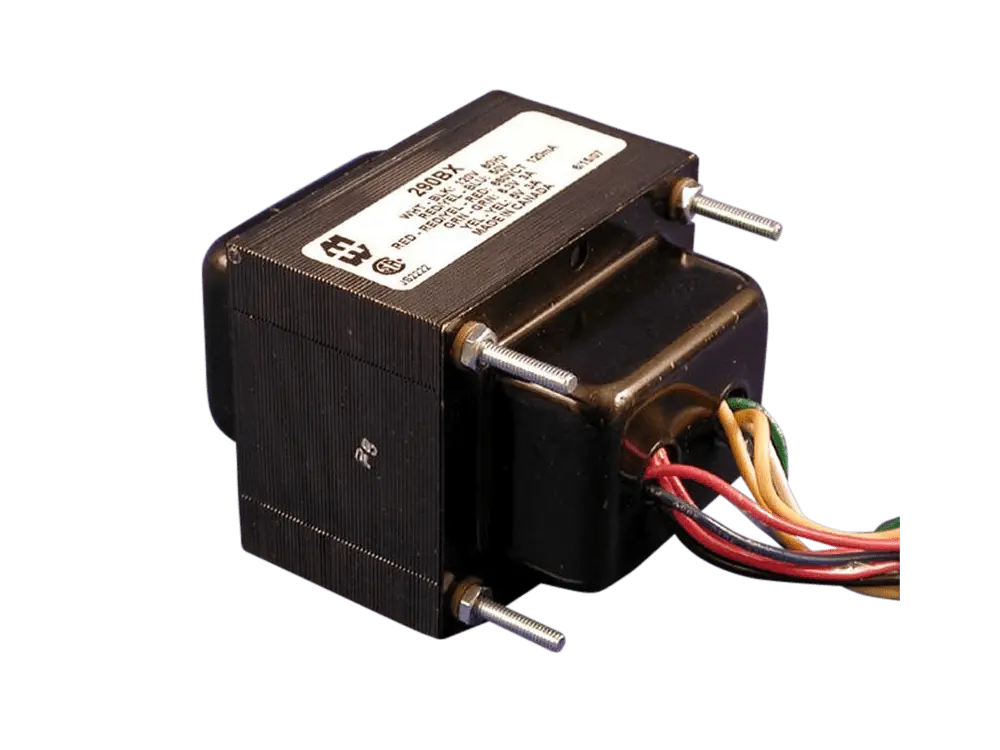

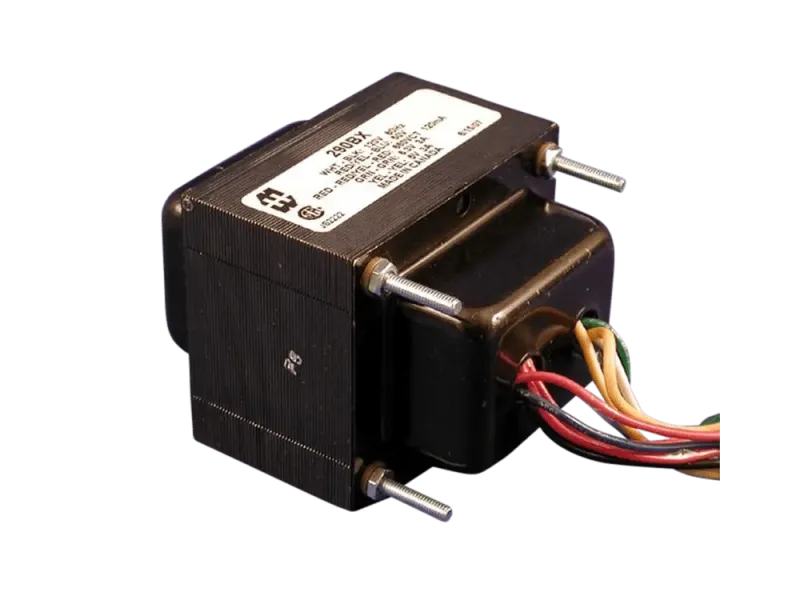

  • Powertransformer for Deluxe, Deluxe Reverb
  • Fender Part Number 125P23D and 041316
  • 291BEX transformer uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.
  • Pri: 240V 50 Hz
  • Sec.1: 660 VCT @ 138mA
  • Sec.2: 6.3 V @ 3 A
  • Sec.3: 5 V @ 3 A

Files:
