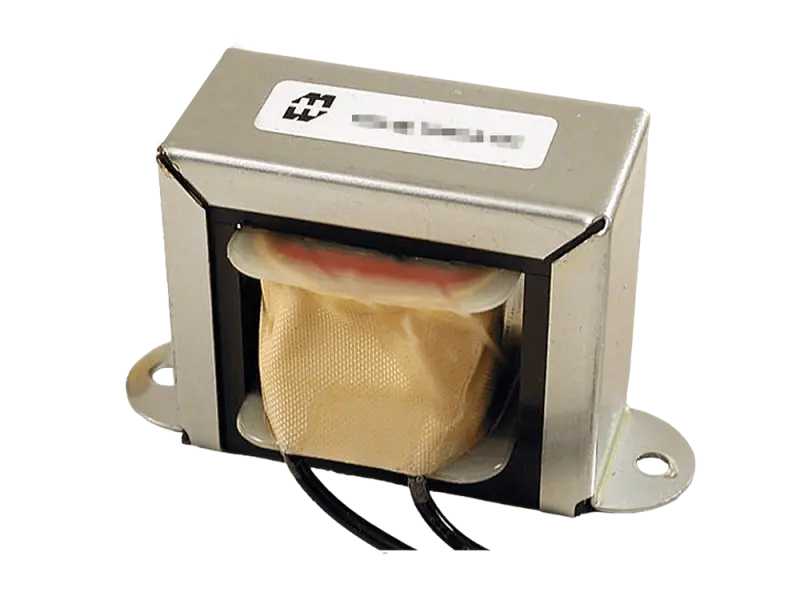

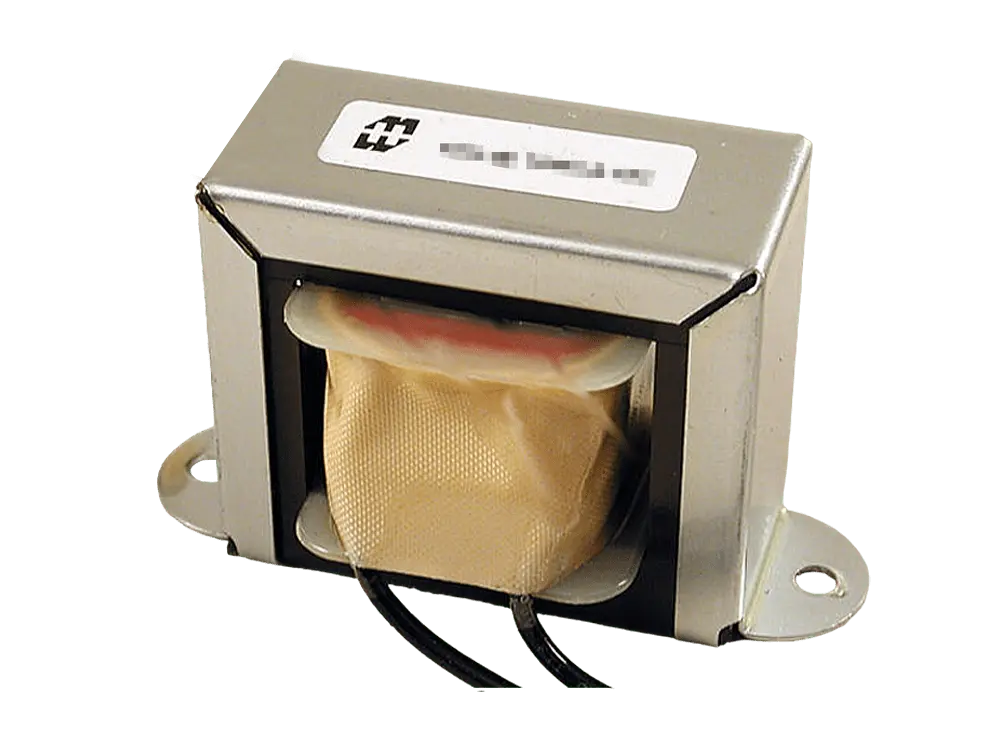

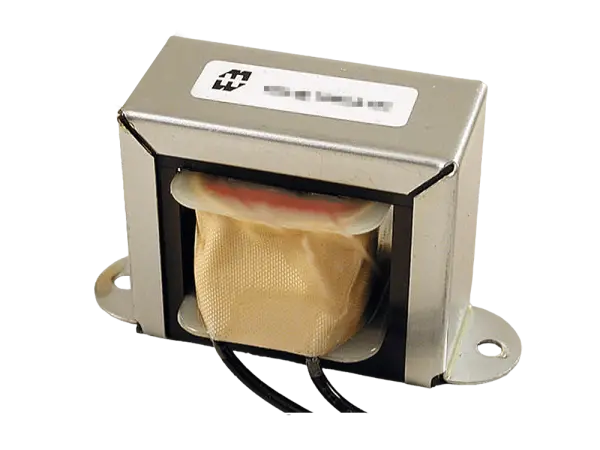

Hammond Choke 157H

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Type: Film capacitor
•   self-healing
• Dielectric: polyethylene terephthalate
• Capacitance: 0,022 µF
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• IEC climate category: 55/125/56
• Operating Temperature Range: - 55°C / + 125 °C
• Dimensions: 4 mm x 8,5 mm x 10 mm
• Termination Style: radial
• Grid: 7,5

2 tubes, matched as pair

The 6V6 S is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Tip: For use in combos, we recommend the JJ 6V6 Double Mica. It features a reinforced suspension of the system to avoid vibrations.

Fender-Style Outputtransformer for 5E3, vertical mounting

• Pri.: 8000 Ohm C.T.
• Sec.: COM-4-8-16 Ohm
• Power: 25 Watt

Aluminium Chassis Low XL

• 2 mm Aluminium
• predrilled
• made for the LoW-Kits
• 3 sockets for use with noval OR octal sockets
• Mounting: with cage nuts (not included)

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,001 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 10 x 9 x 4 mm
• Termination Style: radial
• Grid: 7,5

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,0022 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 10 x 9 x 4 mm
• Termination Style: radial
• Grid: 7,5

• Power: 3,5 W
• 4 Ohm @ 14k5
• 8 Ohm @ 29k

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 5%
• Temperature range: -55° C...200° C
• Small Size
• Size: 9,7 x 2,4 mm
• Flame retardant
