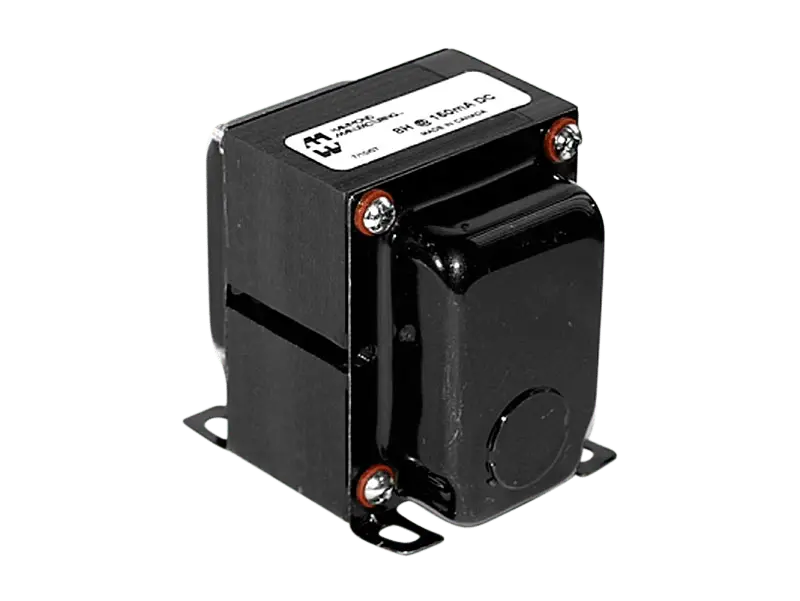

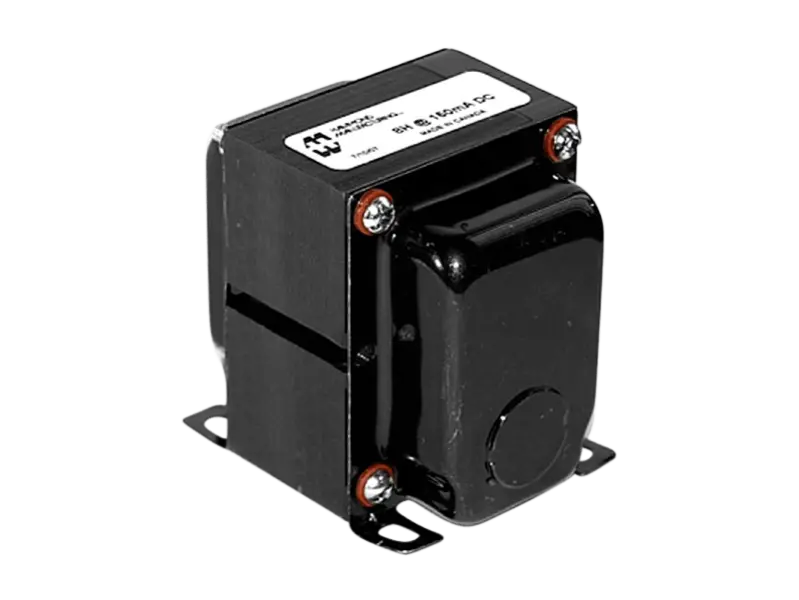

Hammond Filter Choke 193D

SOLD OUT

Hammond Filter Choke 193D

Product No.:: ha193d
: Temporarily out of stock
Please see hint for delivery time notice
Stock:: 0 piece
RoHs:: conform
Hint:: Available again ca. 21.12.2024
Weight:: 1.7 kg per piece

This product ist not available.

69,20 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

Filter Choke, enclosed

Inductance (+/- 15%): 8 H
Resistance (+/- 15%): 75 Ohm
max Current DC: 150 mA
max Voltage DC: 600 V
Leads: min 12 cm
Hipot tested (100%) at 1500 VAC
Operating temperature range: -40° bis + 65° Celsius

Files:

Datasheet
