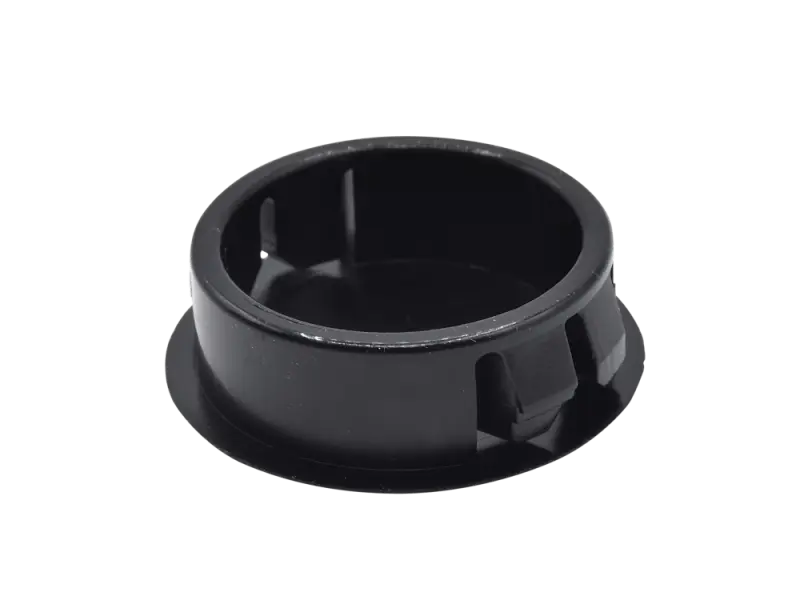

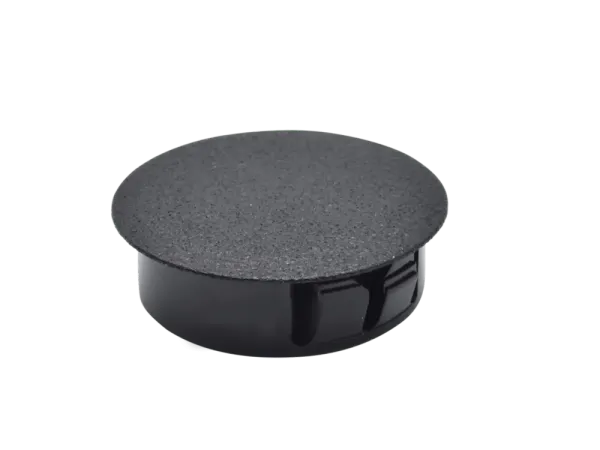

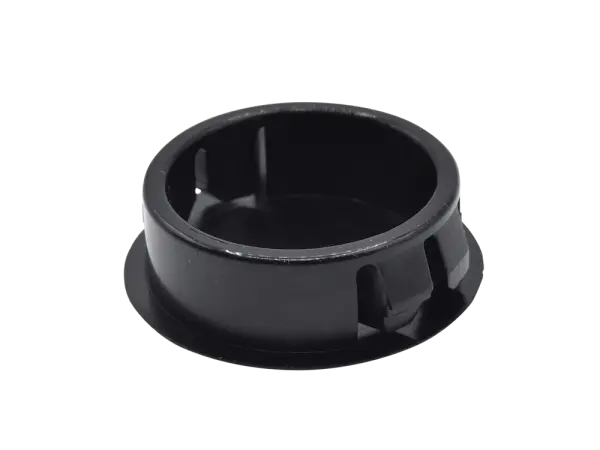

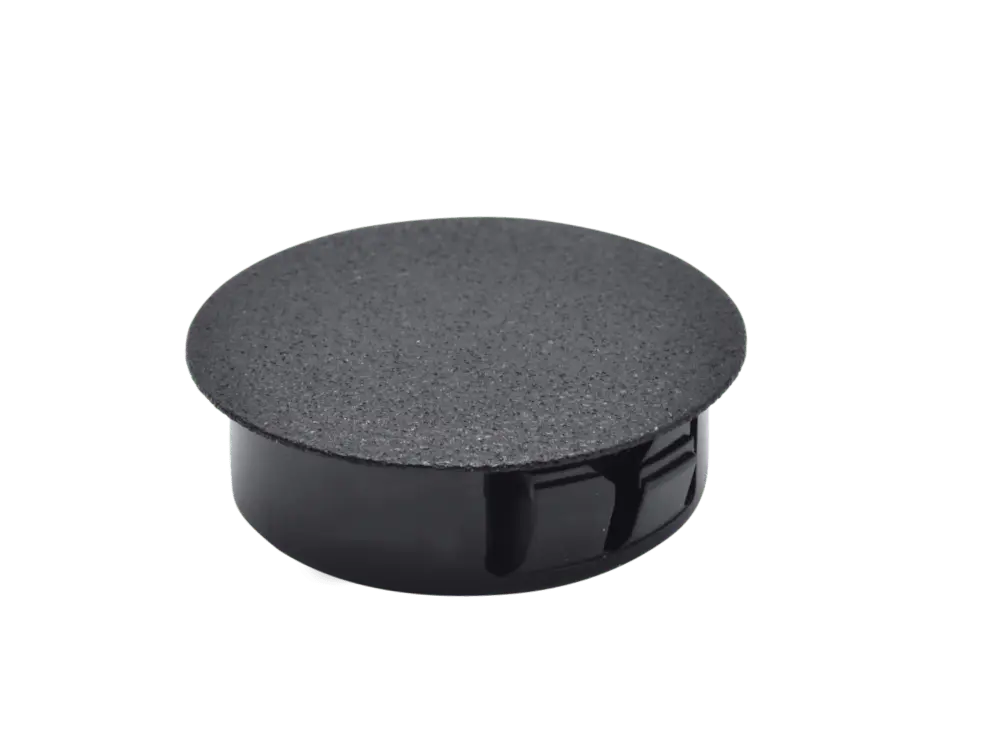

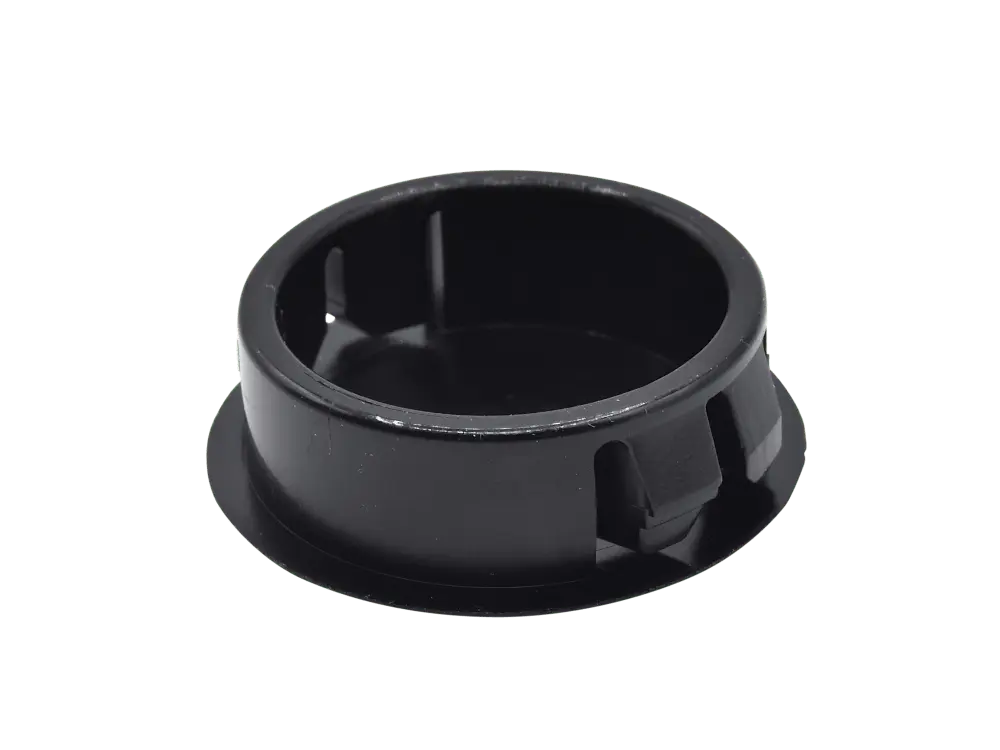

Hole cover cap 19.1 mm, black

• Plastic covered with steel inner core
• Steel, black plated end plates
• Black
• Screws and t-nuts included

• Type: Chickenhead
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 32 x 13,7 mm
• Mounting: Set-Screw

• Type: Chickenhead
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 32 x 13,7 mm
• Mounting: Set-Screw

• 6+1 solder lugs

• 5+1 Solder lugs
• vertical

• Datasheet

FR4 board for the construction of Turret boards

• Size: 100 x 500 x 3 mm

• Fuseholder, Chassismount, 5x20 mm
• IP 40
• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)

• Material: polyamide
• Color: black
• Wall thickness:    max. 3.2 mm
• Mounting hole diameter: 11.1 mm
• Head diameter: 13.5 mm
• Overall covered length: 10.3 mm
• Operating temperatures: max. +105 °C

• Material: polyamide
• Color: black
• Wall thickness: max. 3.2 mm
• Mounting hole diameter: 9.5 mm
• Head diameter: 11.9 mm
• Overall covered length: 10.3 mm
• Operating temperatures: max. +105 °C

• Material: polyamide
• Color: black
• Wall thickness: max.3.2 mm
• Mounting hole diameter: 30.1 mm
• Head diameter: 33.3 mm
• Overall covered length: 11.5 mm
• Operating temperatures: max. +105 °C

• 1 pole / 3 position
• Solder lugs
• Shaft Diameter 6 mm, D-Shaft
• Rating: 250 VAC 6(4) A
• Contact Resistance: 100MOhm Max
• Dielectric Intensity:
  • 1500VAC / 5S for terminal and terminal
  • 3000VAC / 5s for terminal and ground
• Withstand Voltage: 1500VAC / min
• Operating Temperature: -25~85°C
• Insulation Resistance: 500 VDC, 100MOhm Min
• Electrical Life: 10,000 cycles
• Housing material: PA66
• Ø: 22 mm
• h: 17,0 mm
• Ø Frontpanel drill: 10 mm
