Kit Rangemaster-Style Booster
Kit Rangemaster-Style Booster
Kit Rangemaster-Style Booster

Kit Rangemaster-Style Booster

Product No.:
kit-RangeMaster
<font color = green><b>available in short term</b></font></br>Leadtime ca.1 Week* available in short term
Leadtime ca.1 Week*
RoHs:
conform
Weight:
0.05 kg per piece
10,90 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

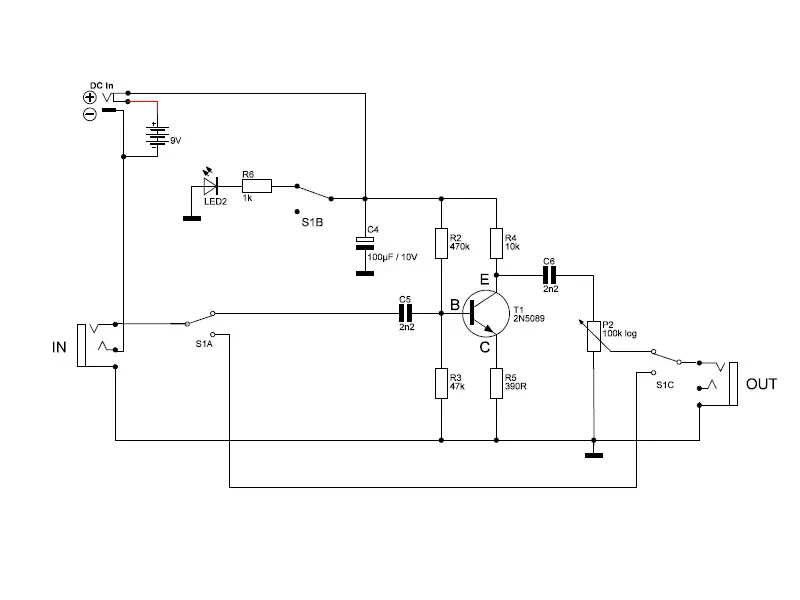

A classic treble booster for guitar in the style of the Rangemaster.

The booster is build on our universal STOMP-board, it is simple and easy for beginners, too.
Please visit the >>STOMP-Project Pages for more information about this kit.

The kit includes all basic parts needed to build the booster like resistors, capacitors, potentiometers, wire, PCB board.

The partes listed below are NOT INCLUDED and you need to order them separately if you do not have them already:

  • knob
  • chassis
  • footswitch
  • faceplate or lables

Please check the tab "recommended accesoires" for matching components
