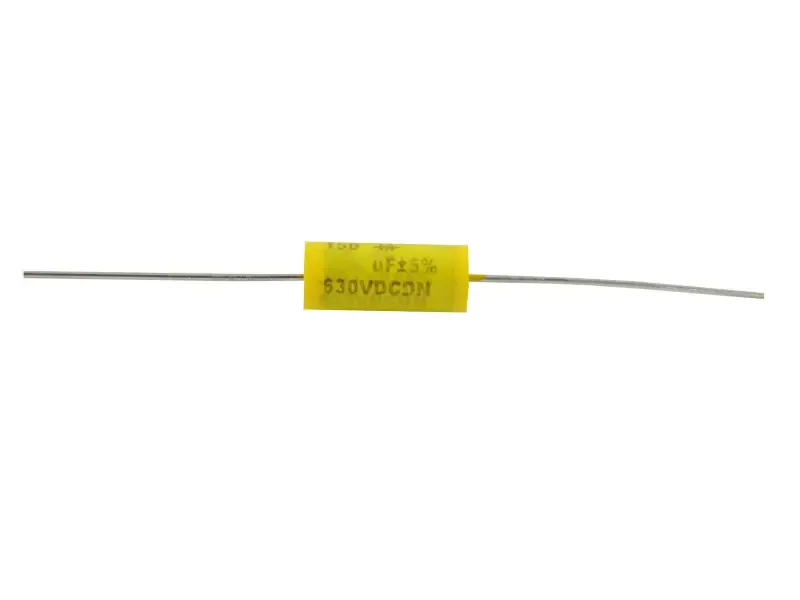

Mallory 150's 0,047 µF / 630 VDC
Mallory 150's 0,047 µF / 630 VDC
Mallory 150's 0,047 µF / 630 VDC

Mallory 150's 0,047 µF / 630 VDC

Product No.:
cma047
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.002 kg per piece
1,98 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.
  • Epoxy end fill meets UL94V-0
  • Non inductively wound
  • Flame retardant outer wrap meets UL510
  • Non polar
Specifications:
  • Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
  • Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
  • Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
  • Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
  • Self Inductance: 1 nH max. per 1 mm lead and body length
  • Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
  • Damp Heat Test: 95% RH @ +45 ºC for 21 days
  • Soldering: 260 ºC ±5 ºC for 10 s ±1 s
  • Long Term Storage Stability: ?C/C = ±3% after 2 years
Documents
CDE 150 Serie Datasheet  (121.37 KB)
