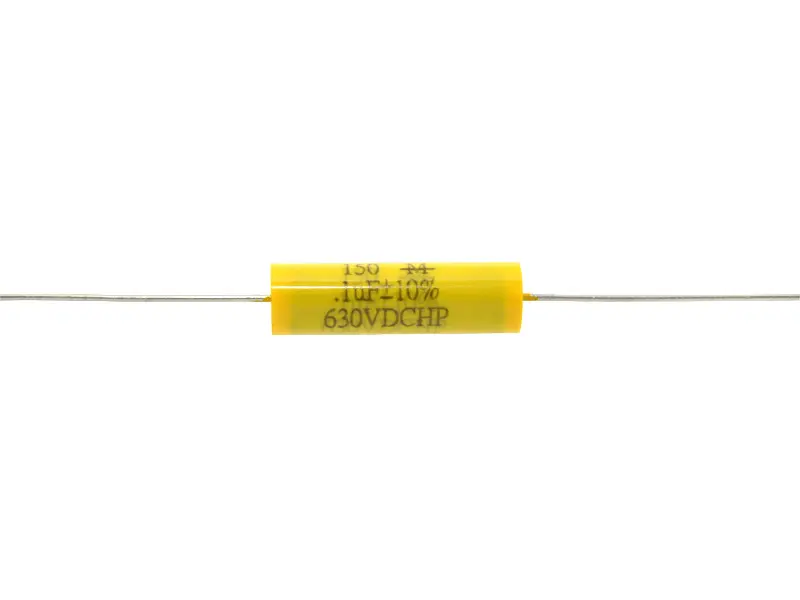

Mallory 150's 0,1 µF / 630 VDC

Product No.:: cma1
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 0.002 kg per piece

2,80 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

Epoxy end fill meets UL94V-0
Non inductively wound
Flame retardant outer wrap meets UL510
Non polar

Specifications:

Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
Self Inductance: 1 nH max. per 1 mm lead and body length
Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
Damp Heat Test: 95% RH @ +45 ºC for 21 days
Soldering: 260 ºC ±5 ºC for 10 s ±1 s
Long Term Storage Stability: ?C/C = ±3% after 2 years

Color can differ from the picture.
