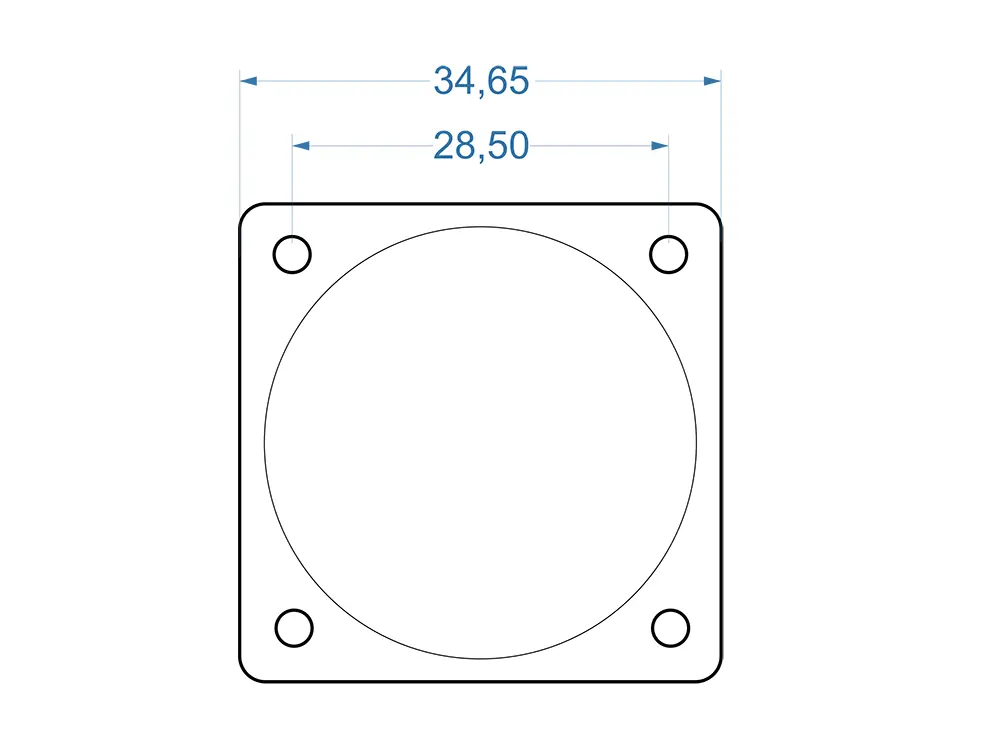

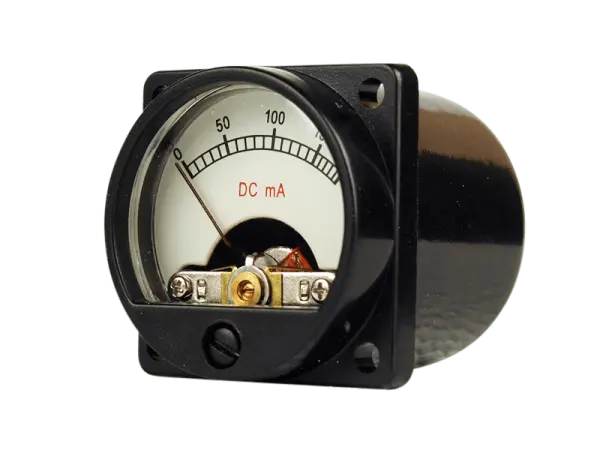

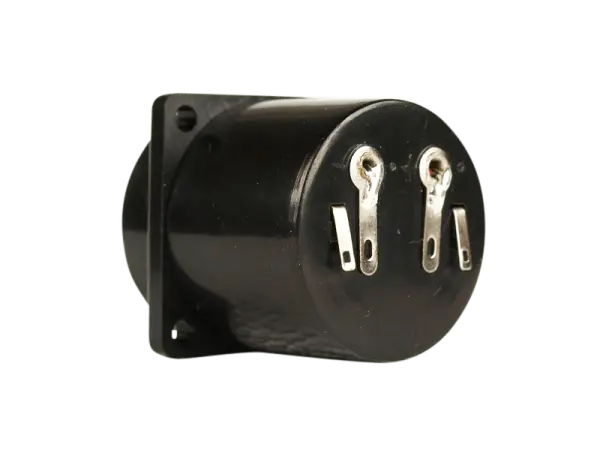

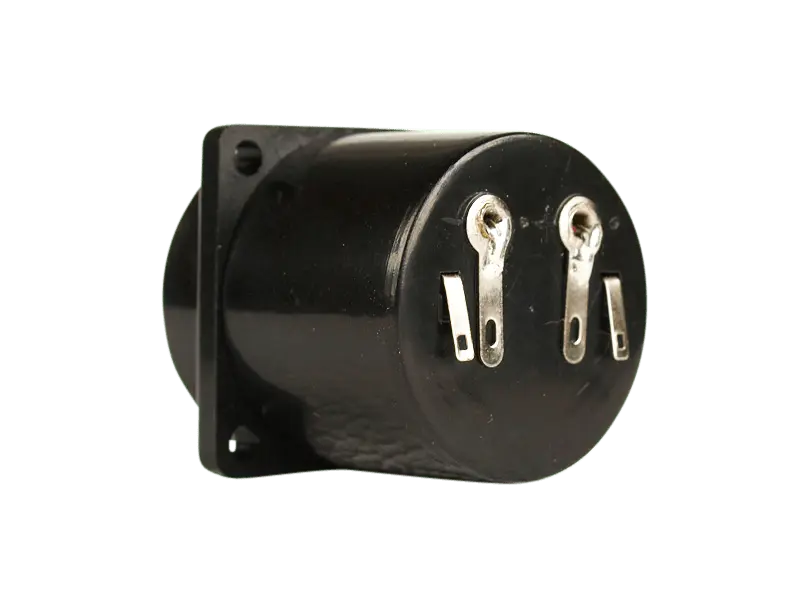

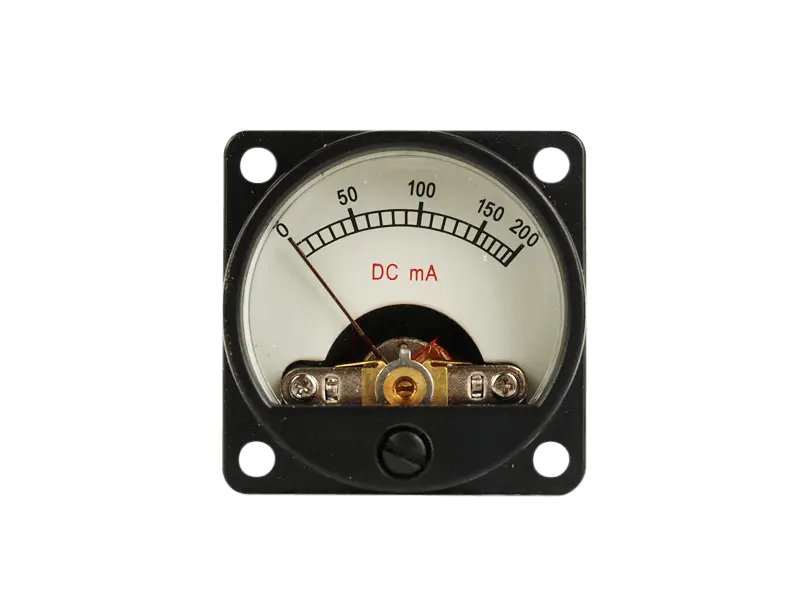

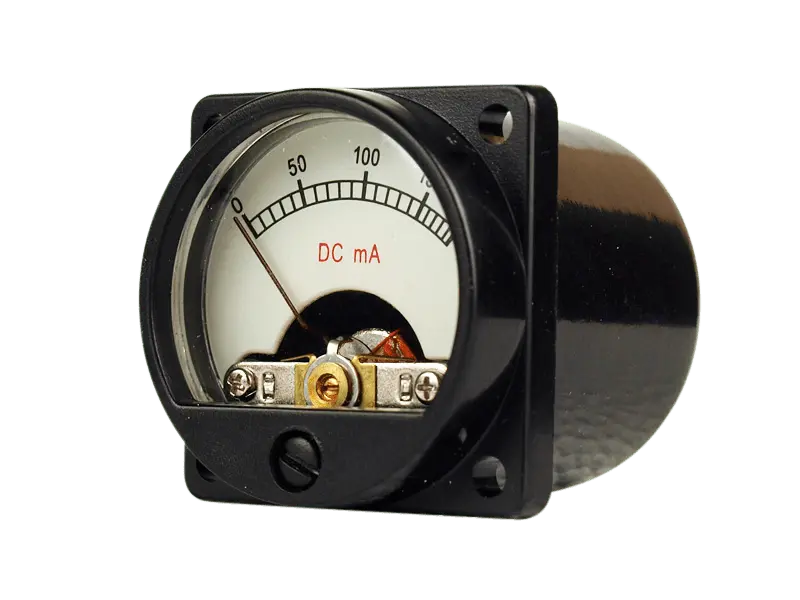

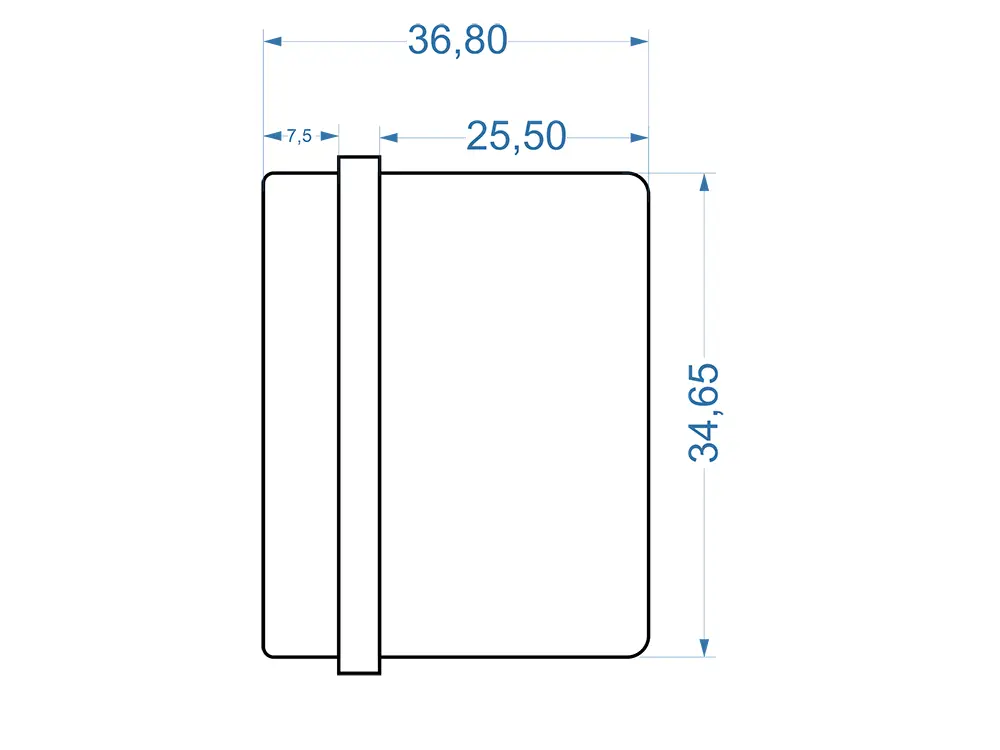

Retro Panel Meter 300 V AC

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• Potentiometer used in many Peavey amp and mixer models like Classic 30.
• Shaft diameter Ø: 4.6 mm
• Screw and washer not included


• Type:  Polyester Film Capacitors
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

• for front panel mounting
• 2 contacts
• with washer and securing nut
• front panel thickness 3.5 mm

• Capacitance: 80 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 25 mm x 42 mm
• Termination Style: axial leads

• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 25 mm x 42 mm
• Termination Style: axial leads

Fender® HotRod Deluxe Potentiometer
Fender# 004-1510-000

• Type: Cancap
• Capacitance: 50 + 50 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 35,5 mm x 51,4 mm
• Termination Style: radial, solder-lugs

• Capacitance: 100 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 25 mm x 42 mm
• Termination Style: axial leads
