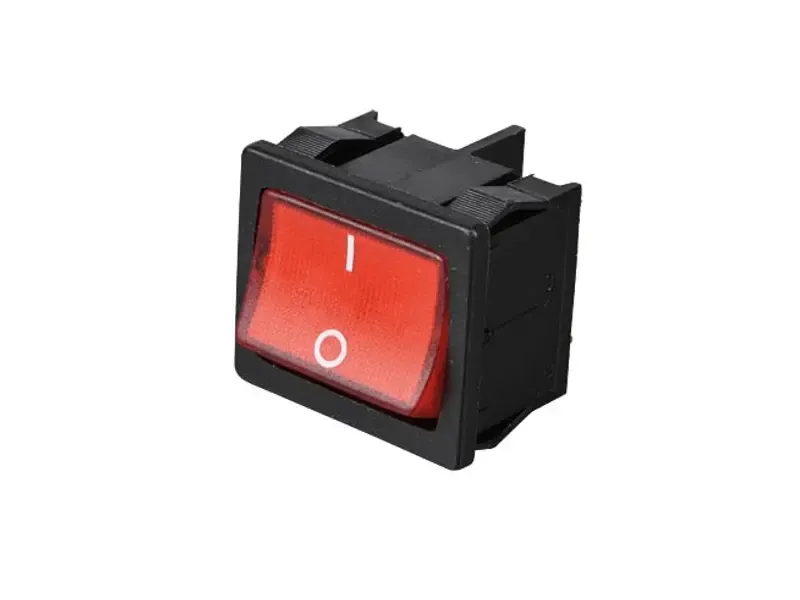

Rocker switch, 2 position, DPST, ON-OFF, lighted red, Marquardt

Product No.:: xsw73
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 0.007 kg per piece

5,40 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

Type: Rocker Switch
Version: DPST ON-OFF,Lighted red, labeled I/O
Recess: 24 x 19,5 mm
Chassis cut-out: 21,9 x 19,4 mm
Mounting: Snap-in
Rating: 250 V / 6 A
Termination Style: solder lug / quick-connect terminals
