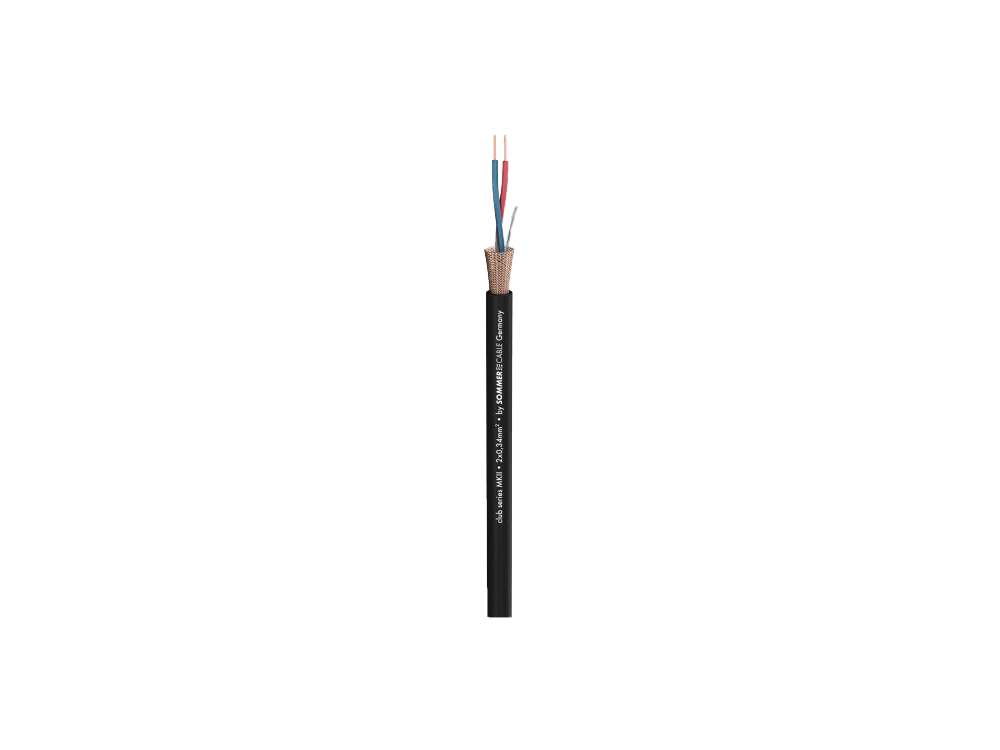

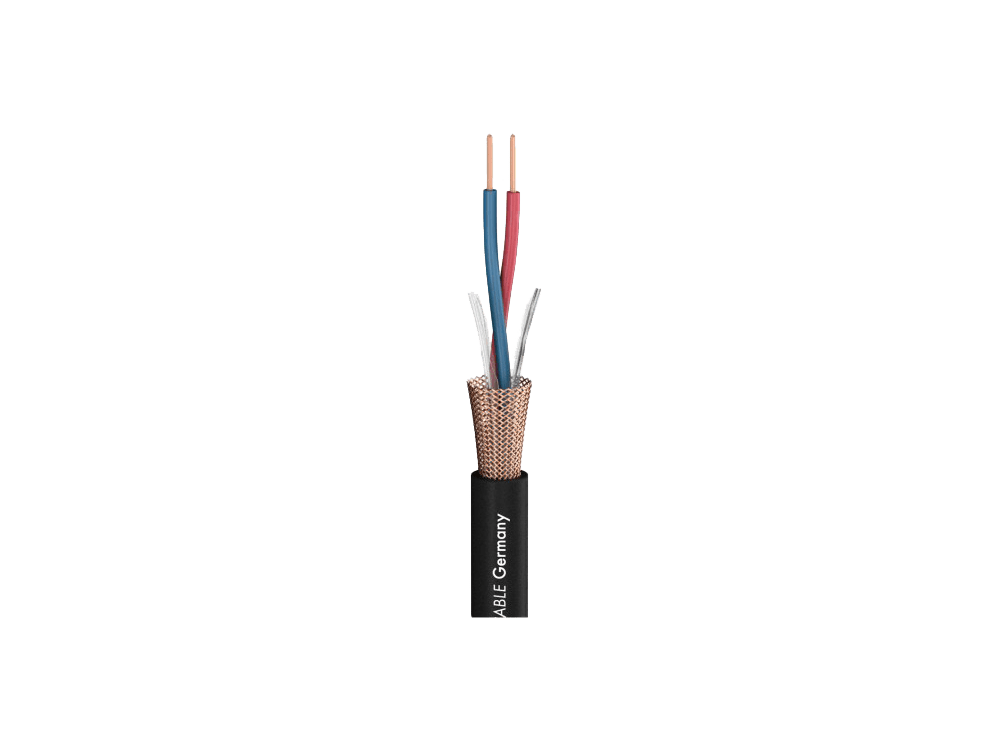

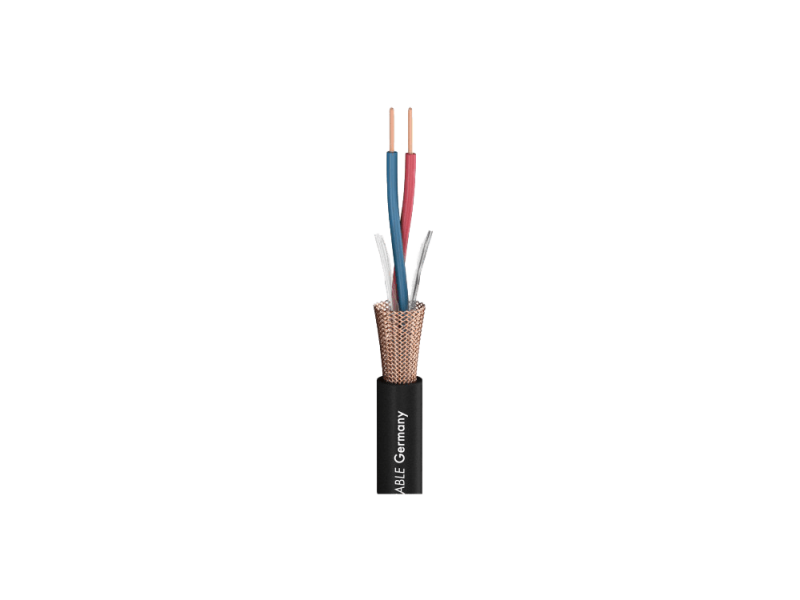

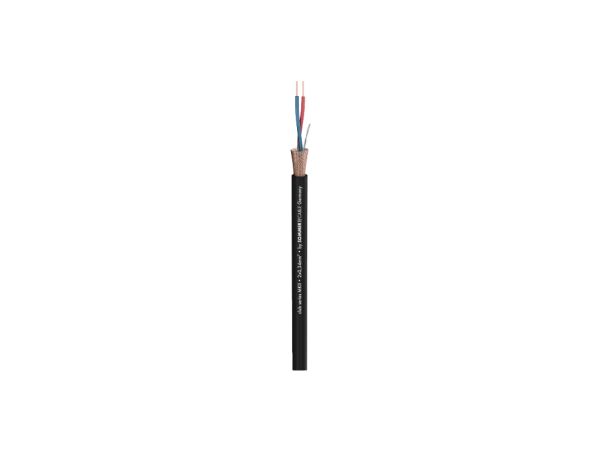

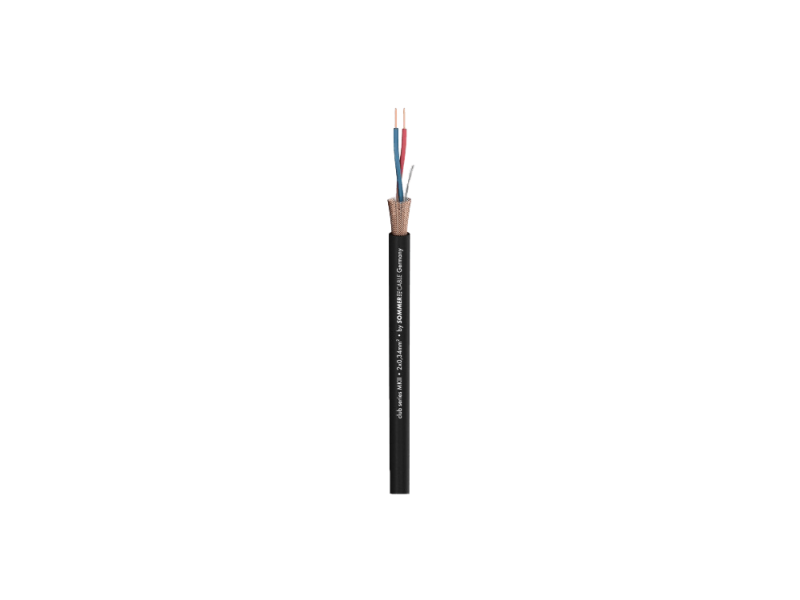

SOMMER CABLE - Microphone Cable Club Series MKII, symmetrically, 2 x 0.34 mm²

The " Microphone Cable Club Series MKII" is a flexible cable for all kinds of symmetrical wiring on stage and studio. A wire diameter of 2 x 0.34 mm² is impressive and the electrical data speaks for itself. A cable giving great performance at an excellent price, used for stage and studio settings.
The large diameter and the low capacity guarantee outstanding transmission quality, even over long distances. The shielding made of polished copper wires is 95 % optically opaque (instead of the usual 85 %).
The robust, rubberlike, matt outer sleeve is preferred by stage musicians and guarantees the highest flexibility even in lowest temperatures.

THE ADVANTAGES:

• High transmission quality through the use of oxygen-free copper stranding with a large wire diameter of 2 x 0.34 mm²
• Very low capacity due to the PE-insulation
• Good protection due to the dense copper braided shielding
• High flexibility makes it easy to wind

THE APPLICATION:

• Stage application
• Studio operation
• Permanent installation

• Construction (2LI2Y0,34mm²)CY
• Jacket, diameter PVC 6,5 mm
• AWG 22
• No. of inner conductors 2 x 0,34 mm²
• Copper strand per conductor 19 x 0,15 mm
• Conductor insulation PE 1,50 mm
• Shielding copper braided shielding with 0.10 mm indiv. strand
• Shielding factor 95 %
• Temperature range min. -25 °C
• Temperature range max. 70 °C
• Fire load per m 0,22 kWh
• Weight per 1 m 56 g
• Colour black

• Capac. cond./cond. per 1 m 58 pF
• Capac. cond./shield. per 1 m 115 pF
• Cond. resistance per 1 km < 55 Ohm
• Shield. resistance per 1 km 25 Ohm
• Insulation resist. per 1 km > 1 GOhm
• Surge impedance approx. 100 Ohm
