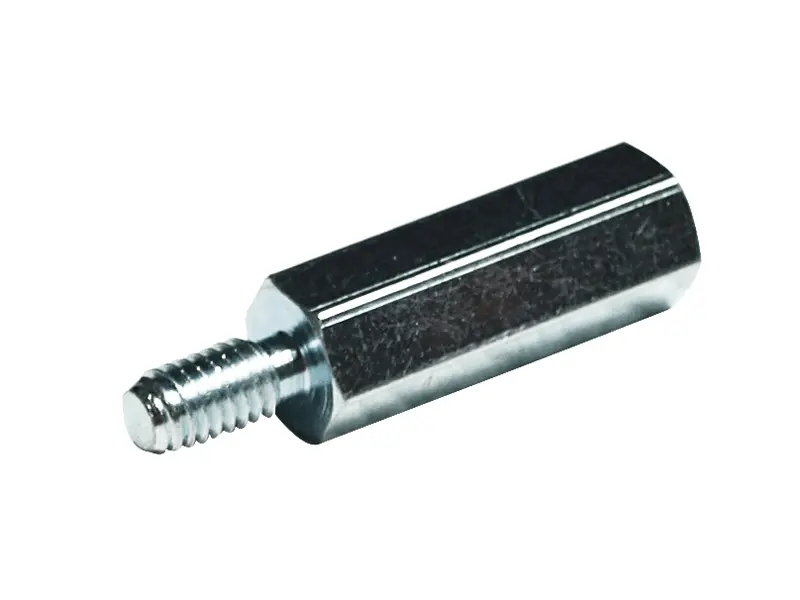

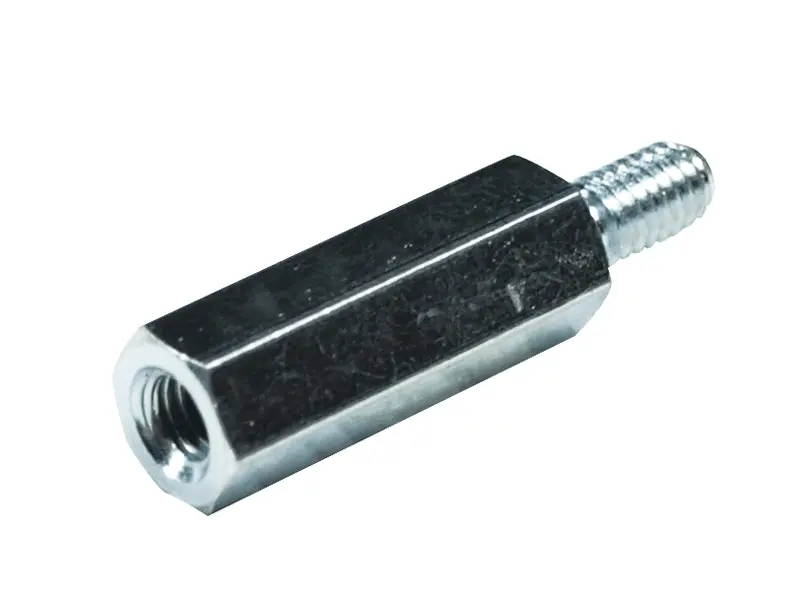

Spacer Bolt M3 / 15 mm

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• Type: Electrolytic capacitor
• Capacitance: 10 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial

• Much easier, faster and saver than with a tag board
• optional connection for FX-Loop

• Pri: 0-120-230-240 V (black-yellow-purple-red)
• Sec 1: 200 V @ 0,085 A (red)
• Sec 2: 6,3 V @ 2 A (green)
• long leads ca 200 mm
• h=35mm d=70mm
• 50/60 Hz EN 61558

• Type: Electrolytic capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 18 mm
• Termination Style: axial

• Type: Electrolytic capacitor
• Capacitance: 4,7 µF
• Voltage Rating: 100 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 13 mm
• Termination Style: axial

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• Type: Electrolytic capacitor
• Capacitance: 2,2 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 4,5 mm x 11 mm
• Termination Style: axial

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm
• Pack of 10

Kit for TT PSU Mini. The kit includes all components except a powertransformer and a choke for building PSU for tube amps.

• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)
