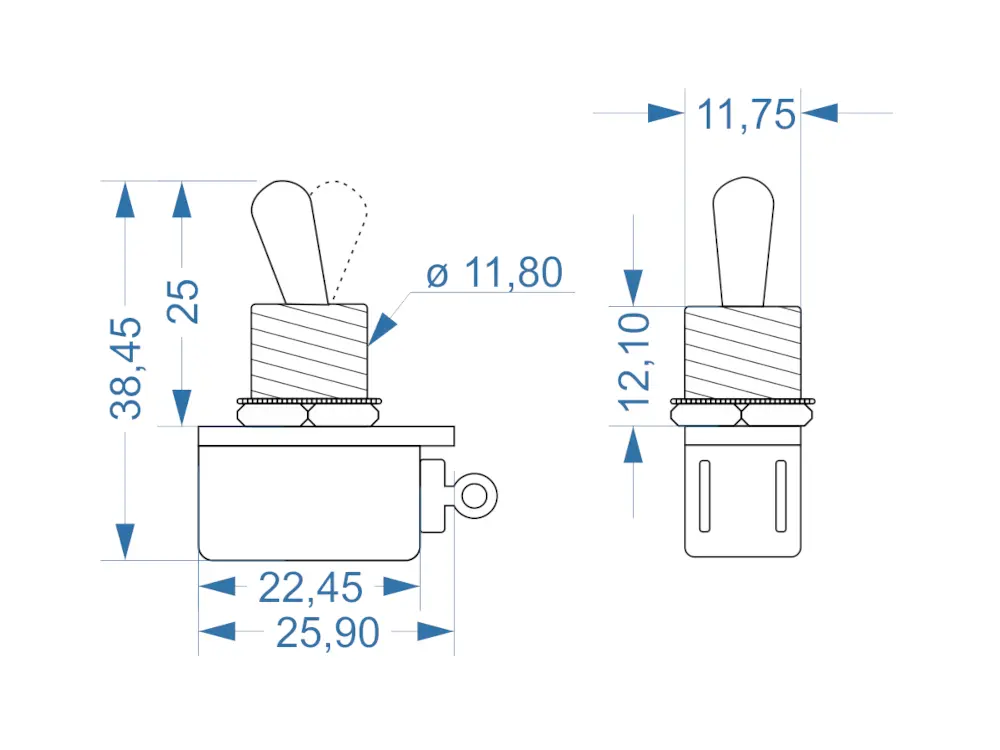

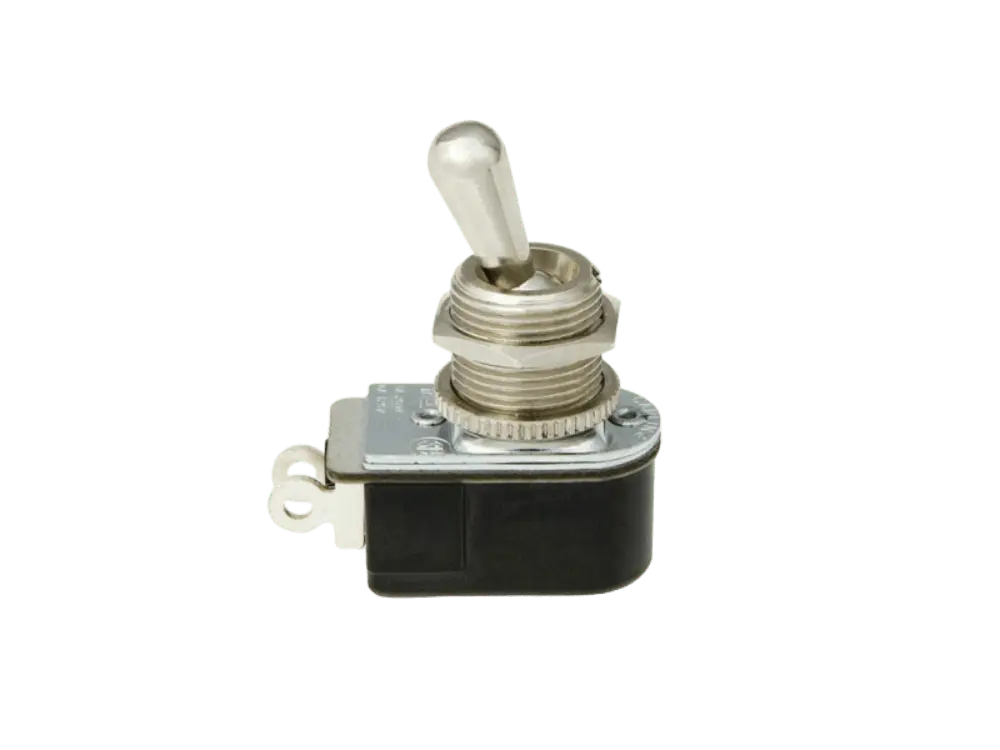

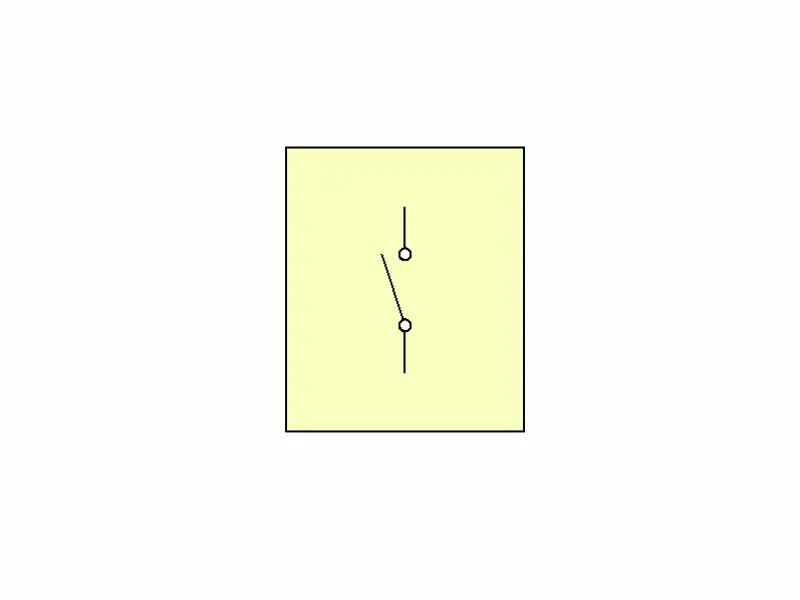

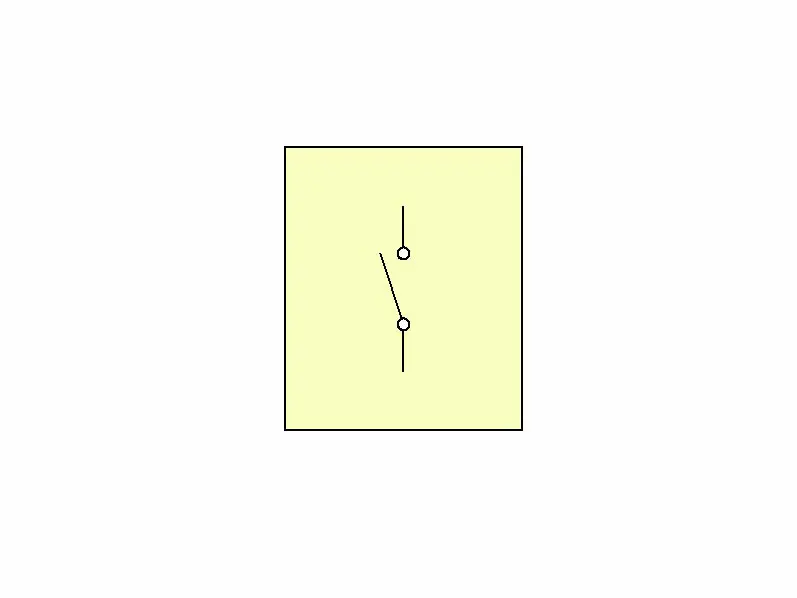

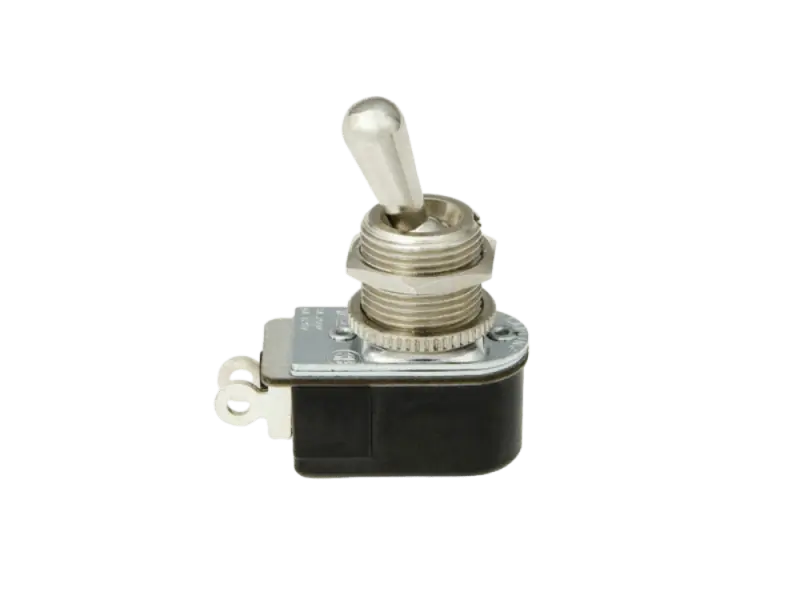

Toggle Switch Carling 110-63, SPST ON-OFF

TT-Selection: Balanced Gain

The Ultimate 12AX7. Big, warm, and musical. High Gain, ultra-low microphonics, and superb linearity with a dynamic 3-D sound.

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

The Ultimate 12AX7. Big, warm, and musical. High Gain, ultra-low microphonics, and superb linearity with a dynamic 3-D sound.

The newest member in the JJ family of ECC83/12AX7 tubes is the JJ ECC83MG. The MG is a 12AX7 with a bit lower amplification than a standard 12AX7. Our measurements show that the difference is small, but the new tube sounds more linear than the standard JJ 12AX7, and in amps produces a milder, gentler sound. The mechanical construction shows that it is not just another minor variation of the normal JJ 12AX7. The new tube has longer plates.
The JJ ECC83MG is interesting for low and medium gain amplifiers, as well as for audio, where a too hot amp needs to be tamed; as well as an alternative to a 12AY7.

Files:

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.

TT Selection: Balanced
Both systems with balanced gain

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.

Jupiter Condenser “Vintage” Tone
Based closely on the Yellow Molded Astron capacitor for a more authentic tone to the time period. Construction is Aluminum Foil with Polyester(Mylar) Film Dielectric with tinned copper leads.

• Type: Polyester/Aluminum Foil
• Voltage Rating: 600VDC - Tested at 1200VDC
•   at three stages of production)
• Tolerance: +/-10% typically much closer
• Operating temperature: -55C - 85C, derate 50% at 125C
• Leads: 20awg Tinned Copper
• Application: Guitar Amplifier, Guitar Tone Control

Made in USA of US materials

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm
