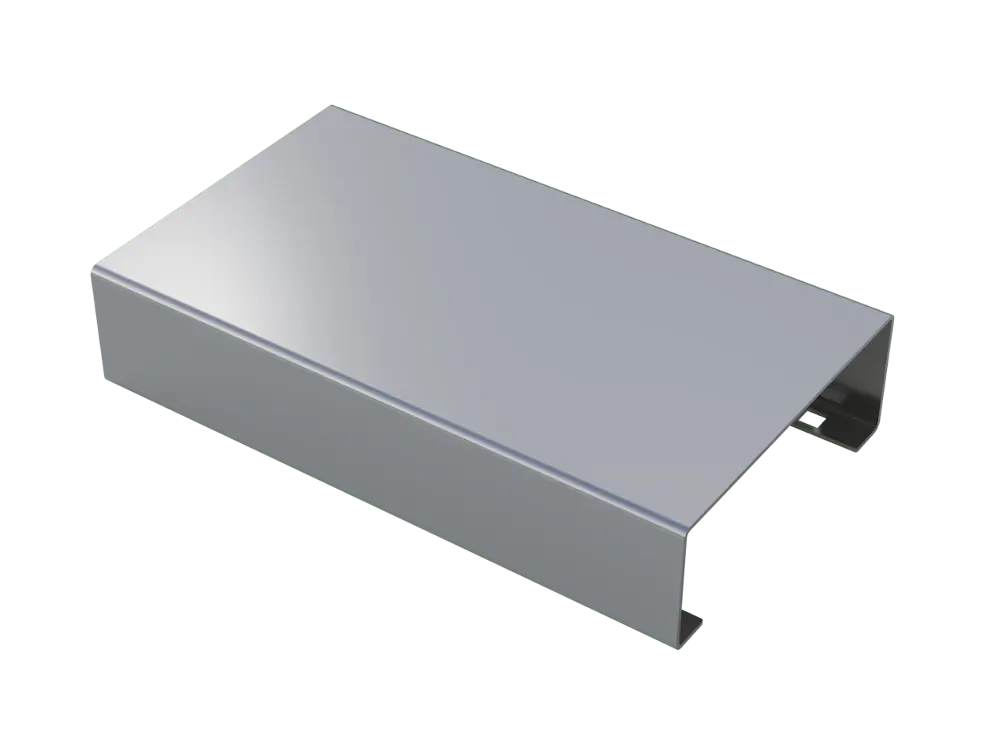

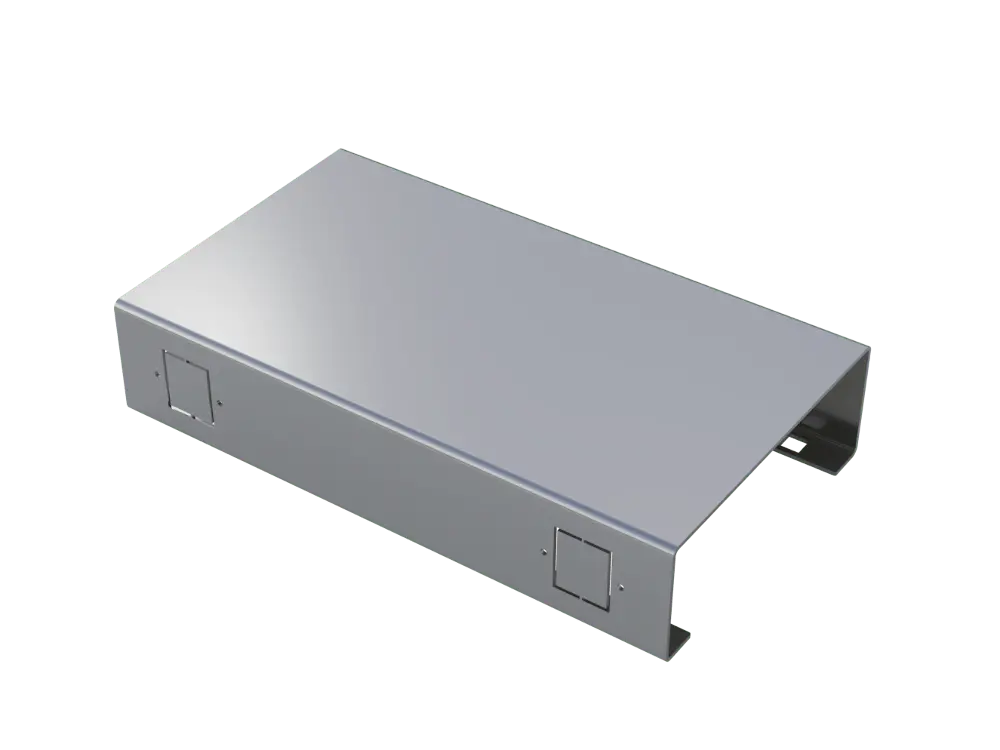

TT-Chassis 018 - Mini U

Product No.:
tt-ch018
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.55 kg per piece
15,95 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
  • Version 2020 U-Type
  • Size: 285 x 170 x 60 mm
  • Mounting: with cage nuts (not included)
  • Material: 2 mm Aluminium (AlMg3)
  • Made in Germany
