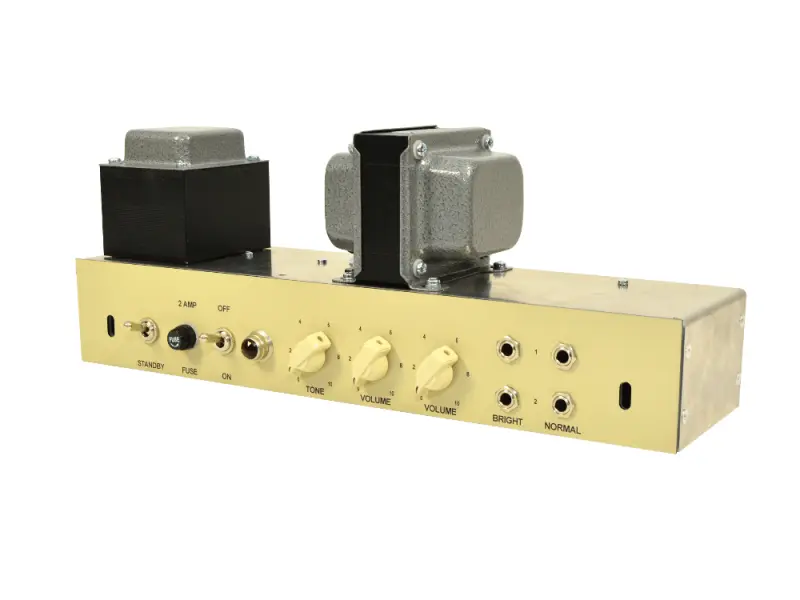

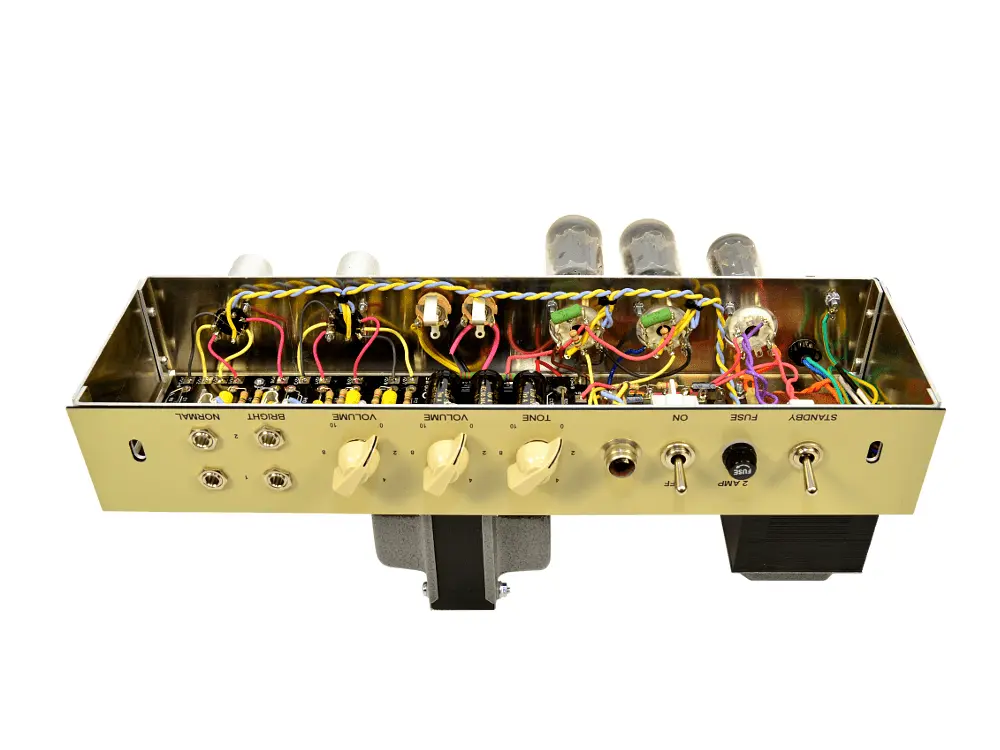

Set of componentes for building the
TT 5E3 Tweed Deluxe HIGH POWER Guitar Amp. Around 27 watts of vintage power from two 6L6 in the classic 5E3 circuit.
Please visit the
>>Project page for more infos about the amp, schematics and layout.
INCLUDED:
- Transformers
- Resistors
- Capacitors
- Jacks
- Light
- Wires
- Board
- Switches
- Tubes
- Fuses & Fuesholder
- CHASSIS
NOT INCLUDED:
To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !
