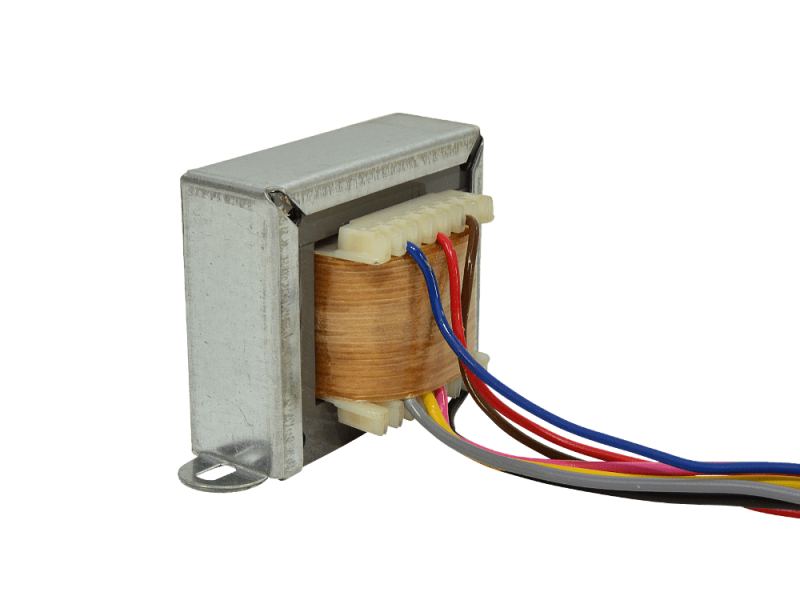

TT Output transformer, 10 Watt, push-pull - Vertical

Product No.:: tt-ot10V
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 0.95 kg per piece

38,50 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

Outputtransformer for projects with i.e. ECC99 tubes
Same specs as the tt-ot10 but for vertical mount

Pri.: 15 kOhm C.T.
Sec.: 4-8-16 Ohm
Power: 10 W (35Hz -3dB)
