TT Powertransformer Leslie 122 / 147 - 230 V - EU-Model

Product No.:
tt-leslie122-pw
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:
2 piece
RoHs:
conform
Weight:
5.95 kg per piece
155,00 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

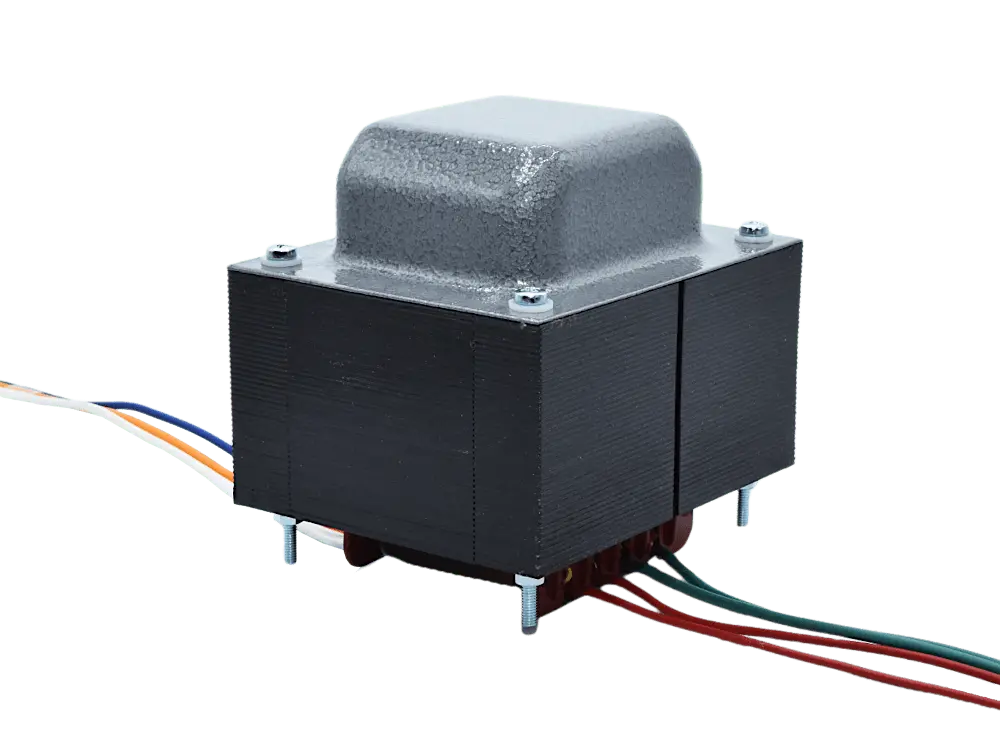

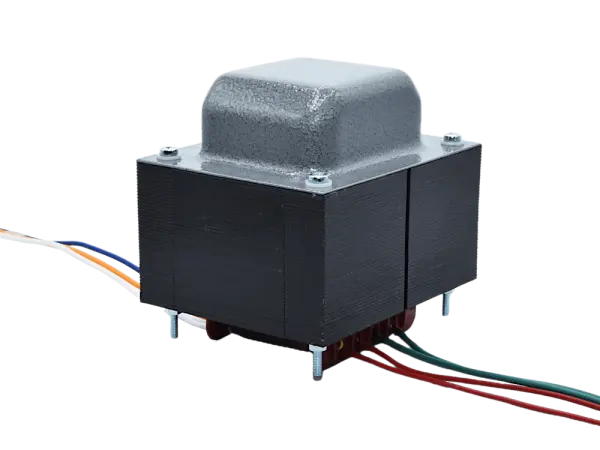

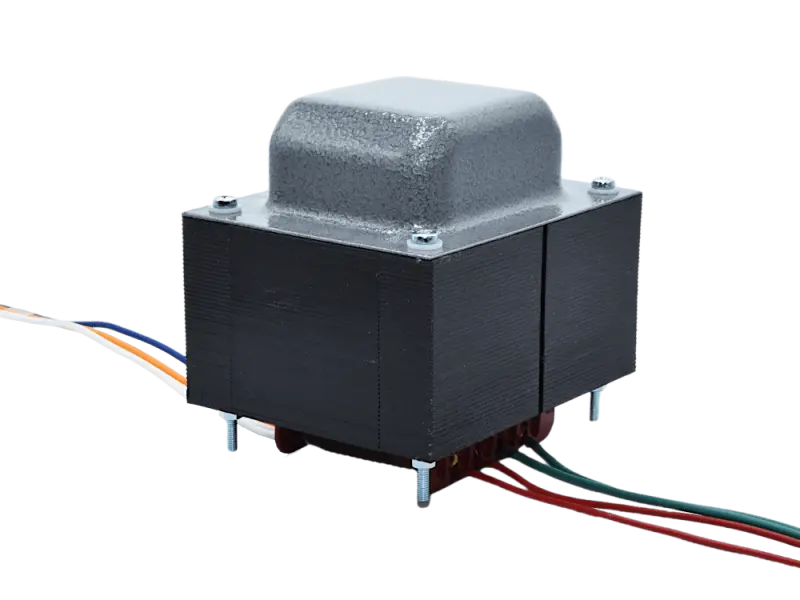

Mains transformer for Leslie 122/147
for conversion of a 117 V Leslie to 230 V
This transformer should generally fit on all Leslie chassis produced for the European market. However, we recommend verifying the dimensions before purchase for added assurance.
  • Core material M6
  • Pri:0-117V-230V @ 50Hz
  • Sec HT: 345V @ 400 mA
  • Sec Heater: 6.3V @ 5 A
  • EI 114 format (95 x 114 mm h=60mm)
