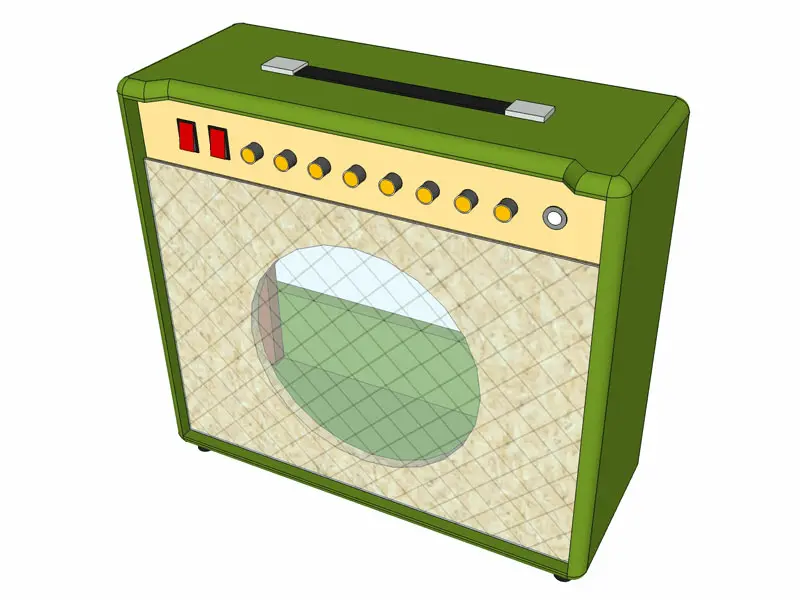

TTC Combo British #20 - Custom Shop
100% Custom-Shop Combos!
A standard combo does not fit your amplifier project? No problem! We build the TTC Custom Shop British combos with the dimensions that YOU need !
And here's how:
To calculate the Combo-size, first determine the dimensions of the amplifier chassis using the data sheet (PDF file below). Based on this data, the Combo-size is calculated according to the data sheet. The calculation can also be done using the Excel spreadsheet below.
To order the Combo, the calculated data must be entered into the appropriate data fields on this page, along with the other configuration parameters, and submitted.
And please note:
The customer is responsible for the correctness of the data.
Specifications
- Size: customer preference
- Tolex: customer preference
- Grillcloth: customer preference
- Hardware: customer preference
- Standard Front
- Back: Open-Back
- Weight: The shipping weight may differ from the actual weight of the product.
- Speaker: None
- Wood: 115 mm Birch Plywood
Files:
The British Series
The birch plywood used for our British Series is extremely tough, and has a much higher density and stiffness than poplar or basswood. Birch cabinets therefore tend to deliver a clear and defined bass response, asthe cabinet walls themselves do not vibrate as much as walls made from other kinds of wood, yet still won’t sound “dead” – as is often the case in MDF speaker enclosures – but retain a certain “liveliness”.
Other advantages are high stability, ruggedness and reliability, making them perfect for use on the road. In addition, these cabinets handle far more power than similarly-sized cabs made of softer materials. The trade-off, of course, is higher weight. But for real Brits, nothing but birchwood will do.
Two lines of British Series cabinets are available. The first comprises standard sizes with freely configurable exterior design options (Tolex, grillcloth, hardware, etc.). The second variant, the CS line, also allows you to specify the size of the cabinet within certain technical limits.
Optionen
We offer a wide varaity of options for most of the speaker cabs that we build. The customer can choose from this options to adjust the speaker cab to his or her own needs and ideas.
Back-PanelsIn addition to the size of a speaker cabinet, the "back" has a very big influence on the sound of a speaker cab.
Closed-Backs cabinets are widely used because they are easy to handle. But they have a bad habit: closed-back cabinets have a more or less strong damping effect on higher frequencies but also also the bass responce and they might be significantly quieter too than cabinets with an open back. The benefits, however, is a tight and well-controlled bass which make them ideal for loud and heavy sounds.
An Open Back cabinets produces a wide tonal range with a rich top end and a strong bass, but the bass response is less controlled than in a closed back cab because the cone of the speaker moves more freely with less control.
The "Flex-Back" – a development by TTC - however, is a mixture of both concepts and allows a quick change from a closed to an open back and vice versa - without tools. Thus the box can be easily adapted to the particular circumstances and needs.
The Oval or Dumble Back represents a kind of open-back - ported speaker cab with a higher tuning frequency than standard ported cabs, designed to push the mid-range which will result in a warm, smooth and full sound.
Options for the front side
The difference between a "Standard front" and a "XL-Front" is purely optical, and does not effect the sound. With a slanted mounted baffle the "Monitor"- effect is much higher than with a straight mounted baffle, because the sound is more radiated toward the musician.
Front Standard
Front Standard Slanted
Front XL
Front XL Slanted
Piping, once as decorative piping and once as piping around the front. Again, the use of piping has optical reasons, but no effect on the sound.
Decorative Piping / Trim Strips
Piping
TTC - what you should know
- All TTC Speaker Cabinets, Combos and Headcabs are "Made in Germany"
- The shipping weight may differ from the actual weight of the product.
- All TTC Speaker Cabinets, Heads and Combos are made with real wood, no MDF or chipboard.
- All TTC Speaker Cabinets, Heads and Combos are made with dovetail joints for a maximum of stability.
- Due to continual improvement, all specifications are subject to change without notice.
- Screws for speaker mounting are included
- We mount speakers for free if they get ordered together with a cabinet and wire them if a wire-set gets ordered too. Exception: Lemberg standard boxes or boxes which are then too large and / or heavy for normal package transport. For these boxes we deliver the speakers and must be mounted by the customer.
- For speaker cabs with custom-shop size please note the size in the comment field (during the checkout) or send them by email. Consider the min and max dimensions !
