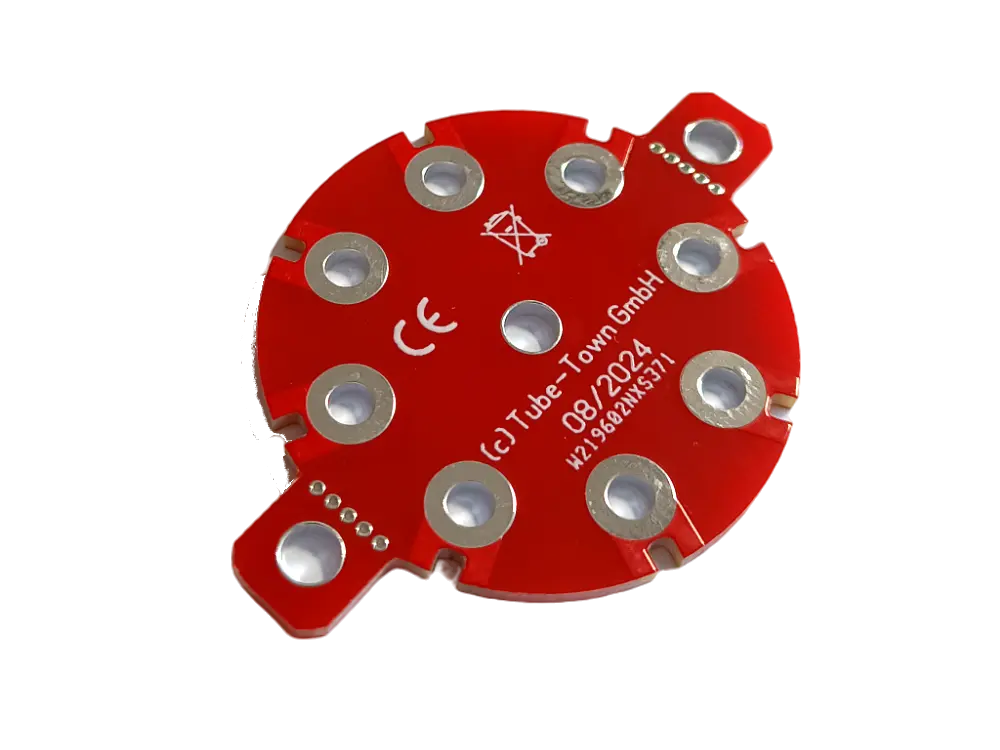

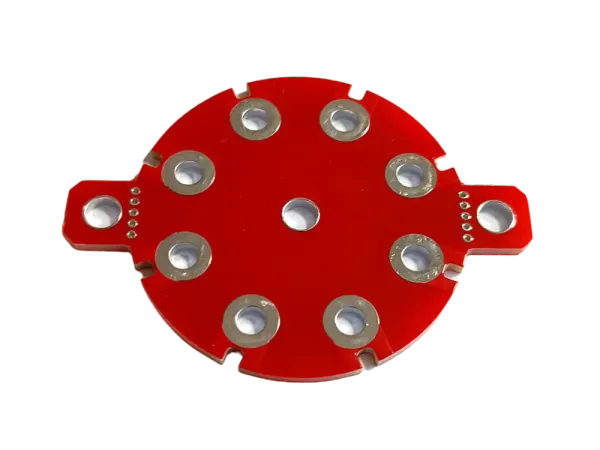

Supporting PCB to build a turret socket, components can be mounted directly at the socket.
- Version 2024
- 1,6 mm, red solder mask
- can be used directly as "eylet board"
- turrets for 2mm boards can also be used
- the pin distance is more than 2,5 mm
- conform with actual VDE regulations
- operating voltage 500 V DC
- designed for Belton noval and octal sockets
- with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
- recommended spacer bolts: 30 - 40 mm, M3
- check "accesories" for recommended and fitting parts
Note: The easiest way to assemble the components is when no turrets are used.
