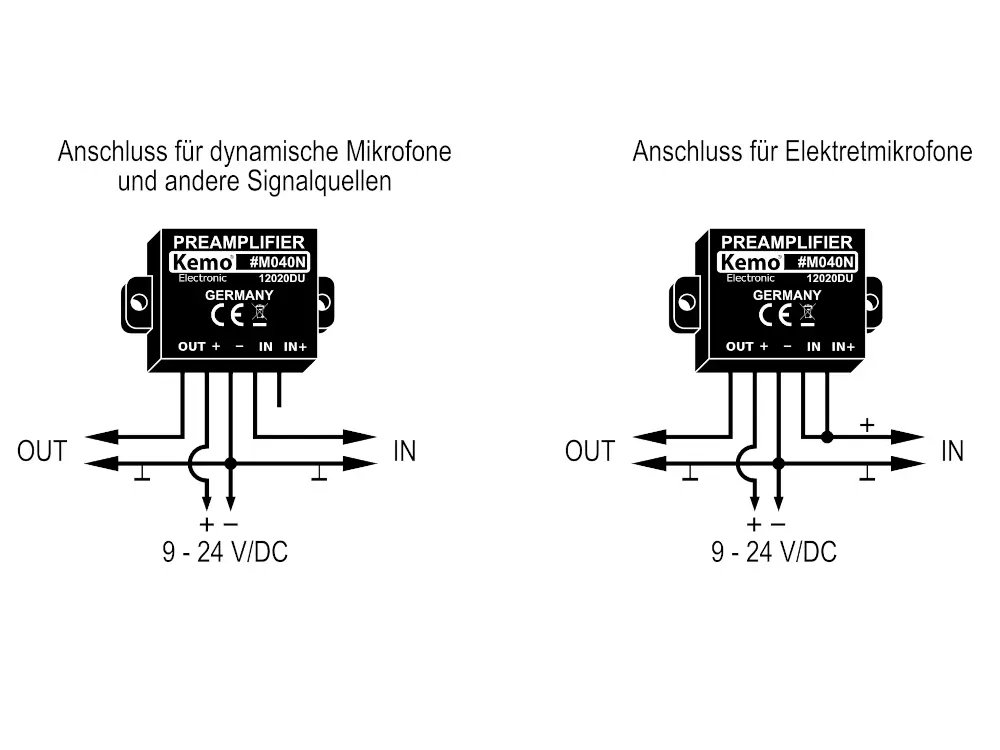

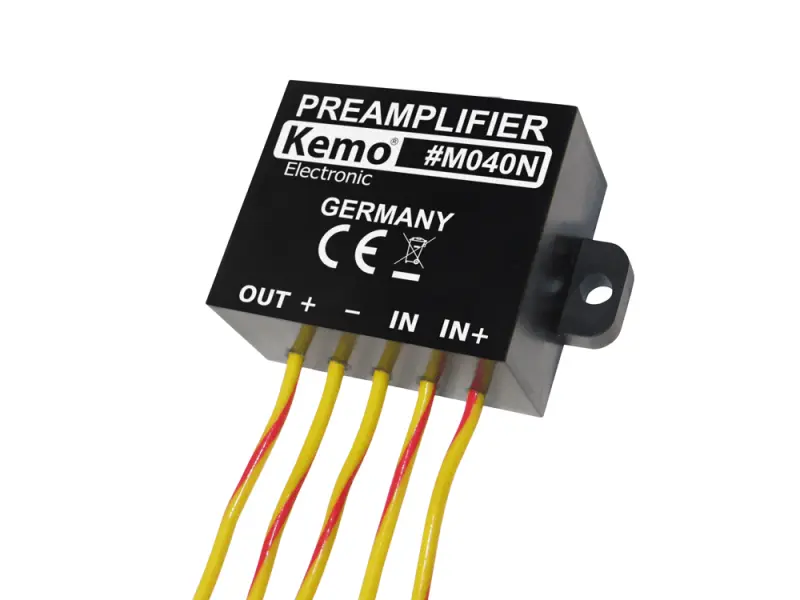

For microphones and diverse usages. This mini module is simply connected between a power amplifier
(e.g. M032N | Amplifier 12 W, universal) and a weak signal source (e.g. microphones).
Technical Data
- Operating voltage: approx. 9 - 24 V/DC
- Frequency range approx.: 20 - 20.000 Hz ±3 dB
- Input voltage approx.: 2 - 50 mV
- Output voltage approx.: 0,2 - 5 V
- Input impedance approx.: 50 kΩ
- Output impedance: approx. <1 kΩ
- Amplification: approx. 40 dB (100 x) ±10%
- Distortion: <0,02%
- Current consumption: <5 mA

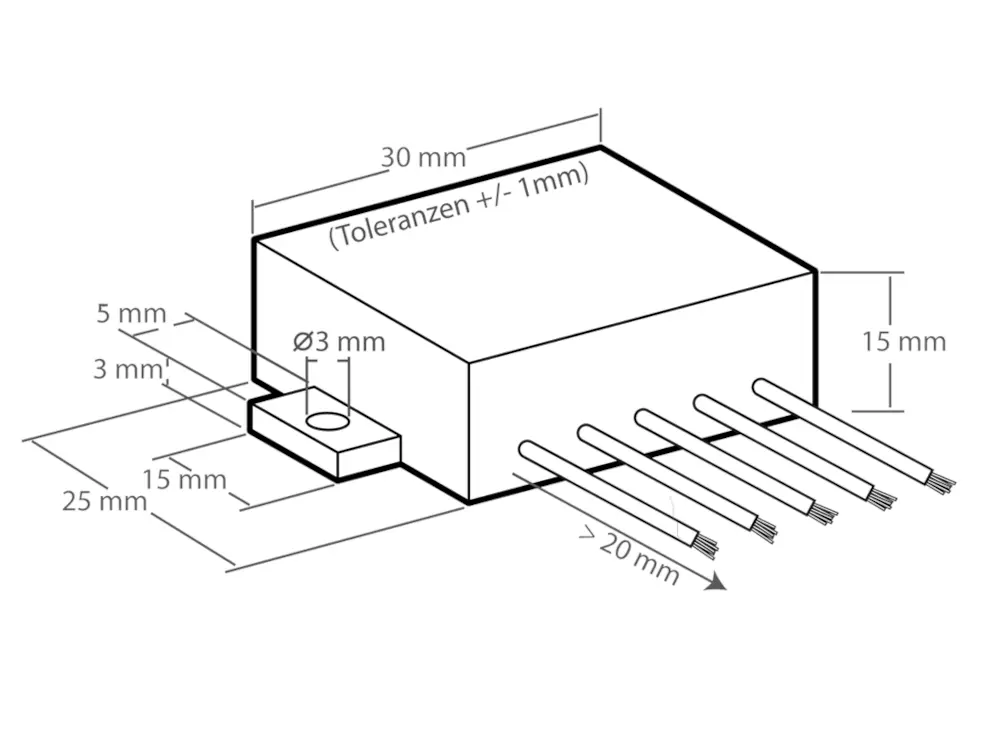

- Dimensions: approx. 30 x 25 x 15 mm (without fastening strap)
