Main page » Speaker » by manufacturers » Warehouse Guitar Speakers » WGS Black Hawk HP 12" / 100 W / 8 Ohm

Preview: WGS Black Hawk HP 12" / 100 W / 8 Ohm

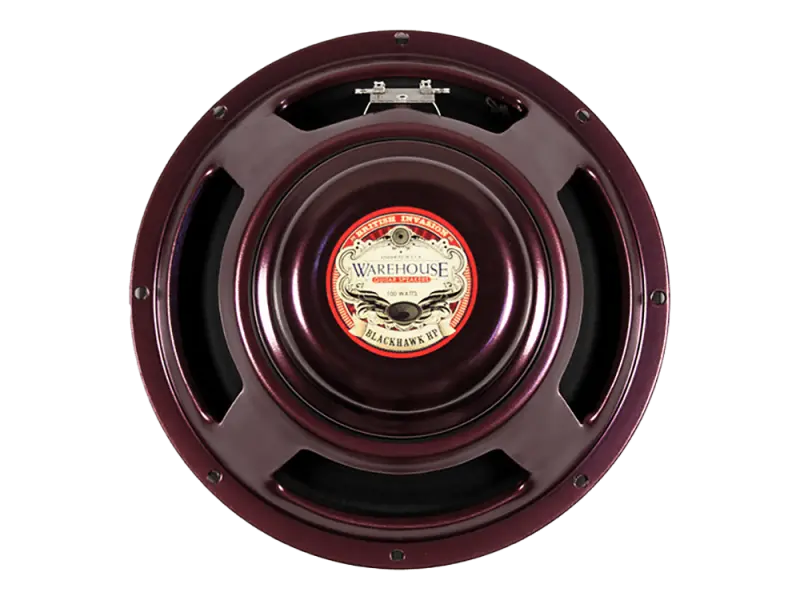

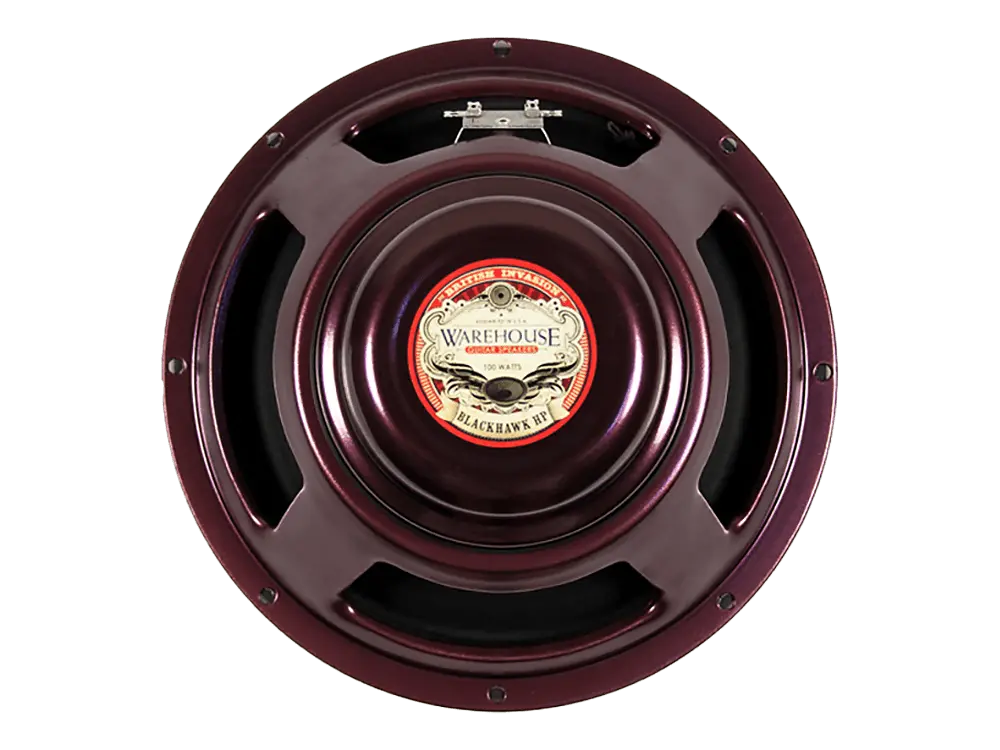

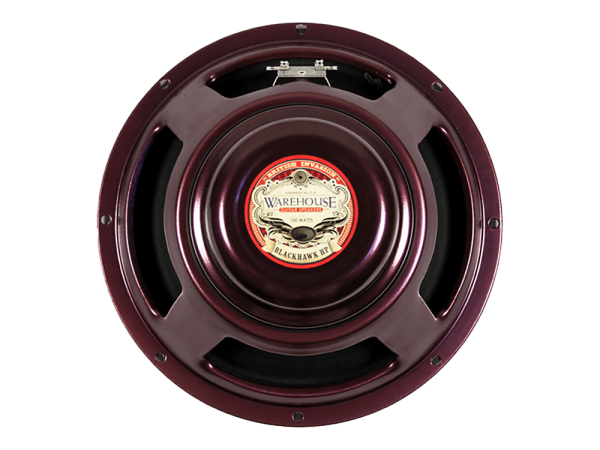

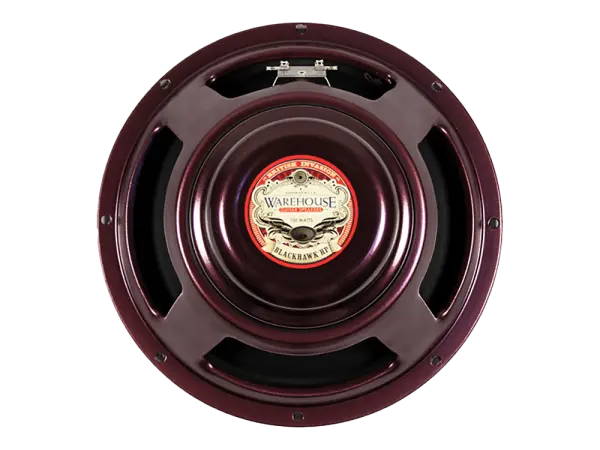

WGS Black Hawk HP 12" / 100 W / 8 Ohm

Mobile Preview: WGS Black Hawk HP 12" / 100 W / 8 Ohm

WGS Black Hawk HP 12" / 100 W / 8 Ohm

Product No.:: wgs-2423
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: 4 piece
RoHs:: conform
Weight:: 5.3 kg per piece

269,00 €

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

The high-power 12” BlackHawk™ alnico speaker has arrived! Now your 1x12” 100 watt amp can really purr.... This guitar speaker will give your amp pristine top end, tight mids, and all just the right amount of warmth and bottom end.
Drop in replacement for EV™ SRO™ speaker.

Unit Weight: 9 pounds

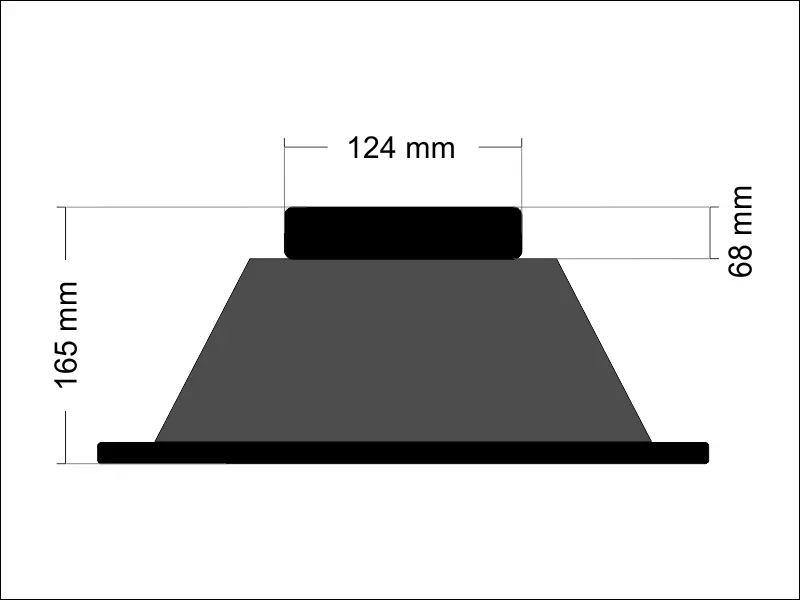

Mounting Information

Diameter: 12.2”
Overall depth: 6.4”
Cut-out diameter: 11.1”
Mounting slot dimensions: 0.31”
Number of mounting slots: 8

Thiele-Small Parameters

Resonant Frequency (Fs): 88.14 Hz
DC Resistance (Re): 7.84 Ohm
Coil Inductance (Le): 0.35 mH
Mechanical Q (Qms): 6.32
Electromagnetic Q (Qes): 1.03
Total Q (Qts): 0.88
Compliance Equiv. Vol. (Vas): 21.04 cu ft
Mech. Compliance of Susp. (Cms): 0.11 mm/N
BL Product (BL): 11.16 T-M
Diaphragm Mass Inc. Airload (Mms): 29.46 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 99.26 db

Information about the manufacturer

Hersteller / Verantwortliche Person EU

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.
