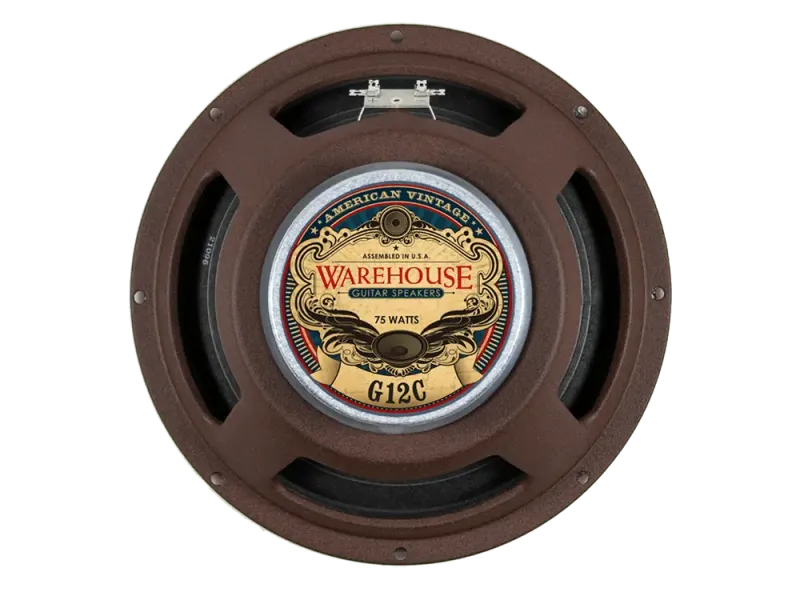

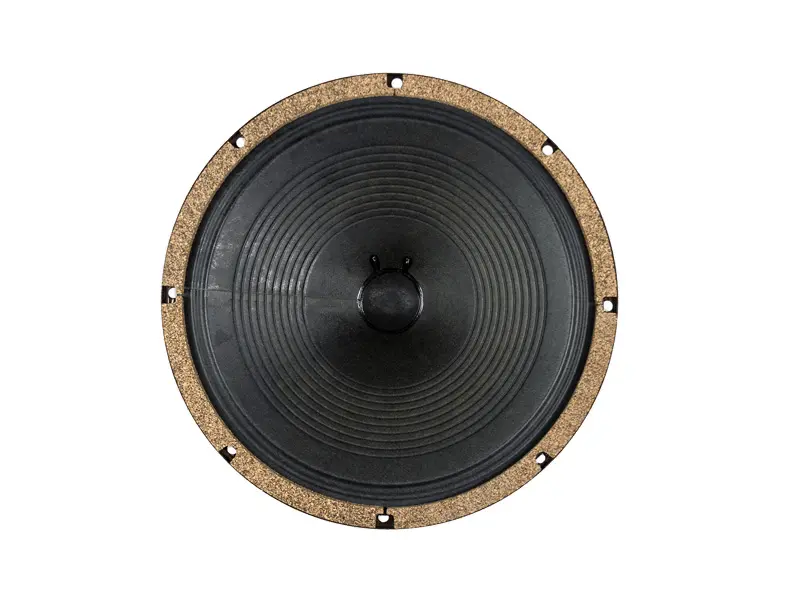

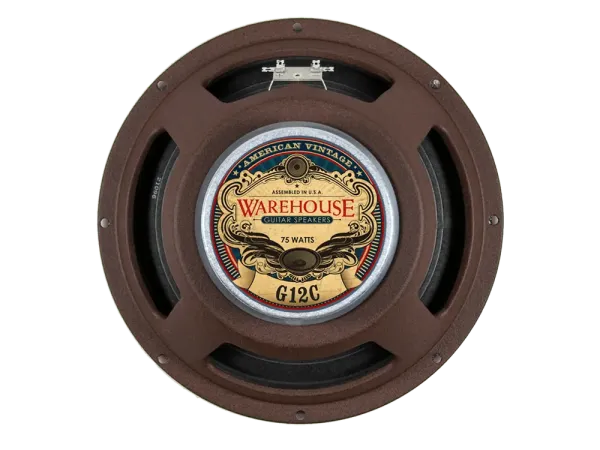

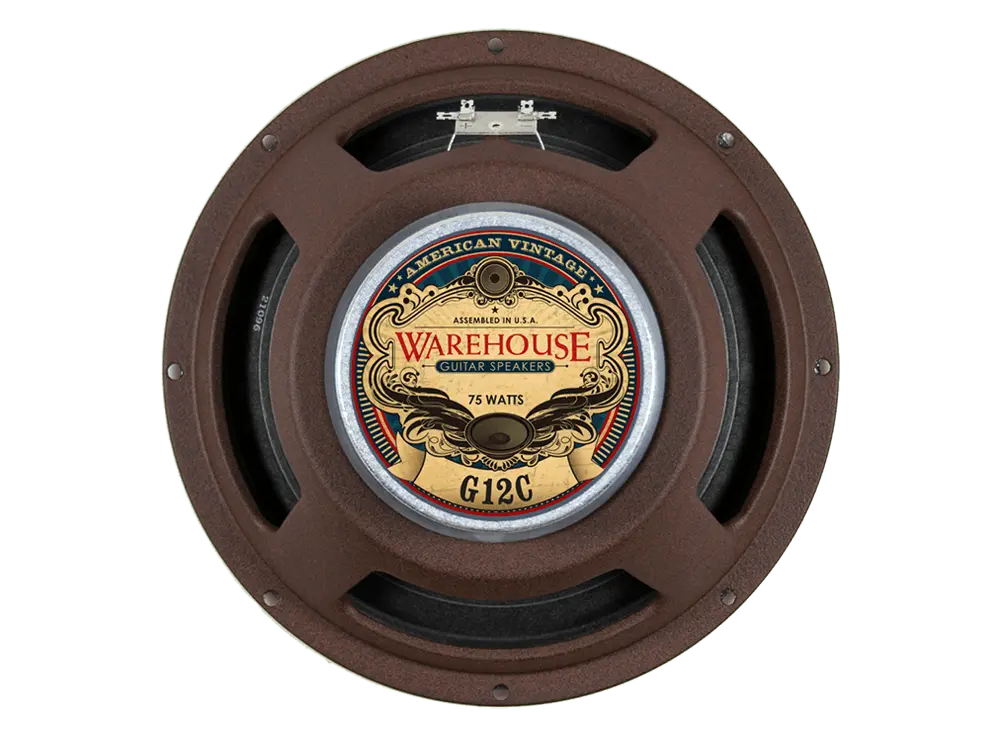

The G12C is a 12" ceramic speaker with a 35 oz magnet and seamed cone. It's comparable to the Jensen C12n. However, our speaker has a warmer sound and more depth in the tone.
Thiele-Small Parameters
- Resonant Frequency (Fs): 134.10 Hz
- DC Resistance (Re): 7.71 Ohm
- Coil Inductance (Le): 0.30 mH
- Mechanical Q (Qms): 18.33
- Electromagnetic Q (Qes): 1.43
- Total Q (Qts): 1.33
- Compliance Equiv. Vol. (Vas): 8.76 cu ft
- Mech. Compliance of Susp. (Cms): 0.05 mm/N
- BL Product (BL): 11.80 T-M
- Diaphragm Mass Inc. Airload (Mms): 30.58 grams
- Surface Area of Cone (Sd): 366.10 cm squared
- Sound Pressure Level (spl): 99.48 db
