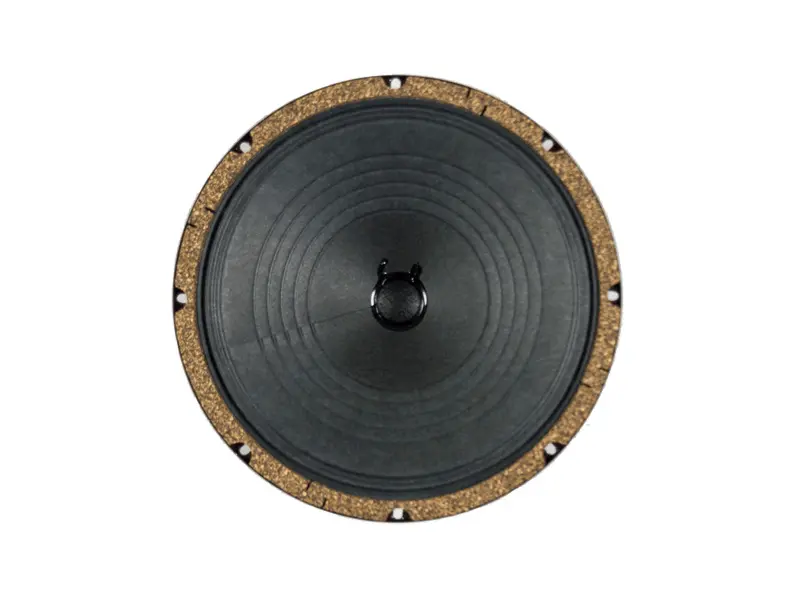

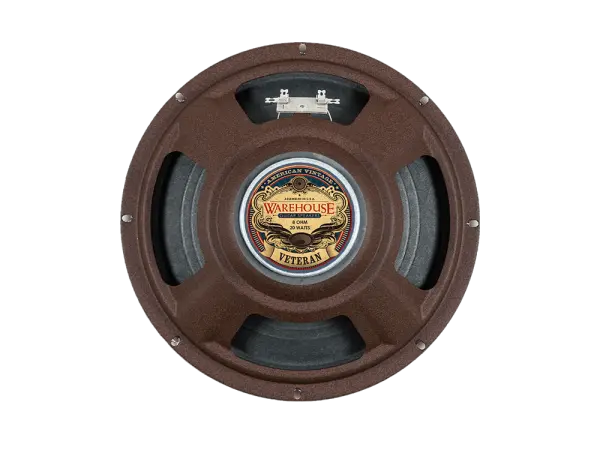

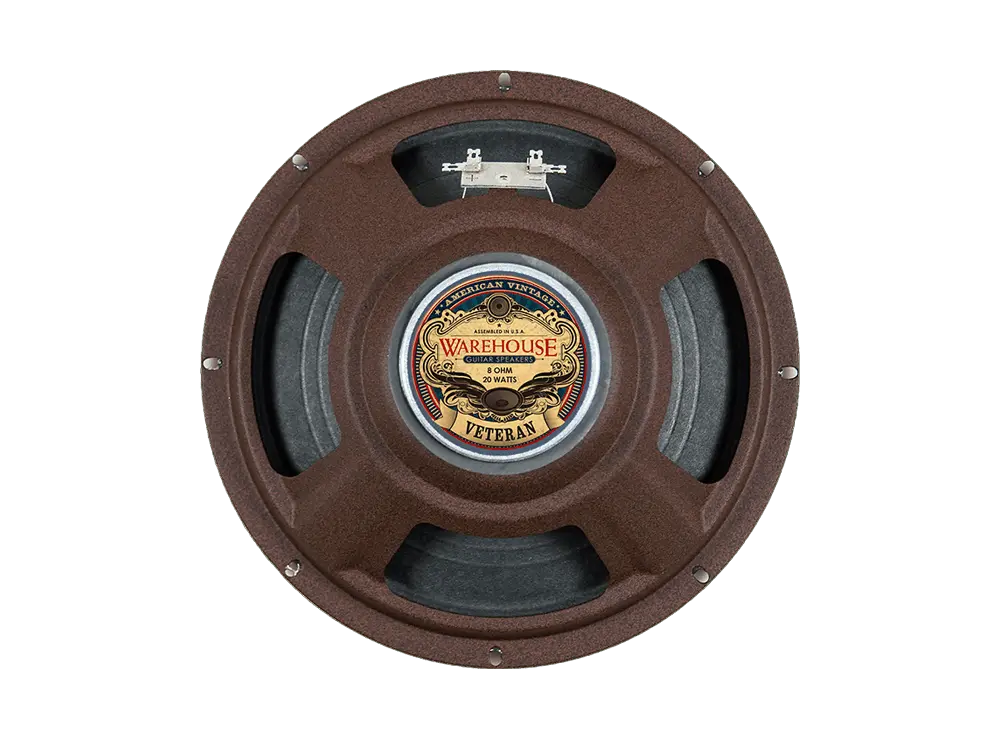

WGS Veteran 10 10" / 20 W / 8 Ohm

Mobile Preview: WGS Veteran 10 10" / 20 W / 8 Ohm

Description

The 10” Veteran™ speaker from WGS™ has great crunchy cone breakup and clean, warm overtones. The seamed paper cone is key to this guitar speaker's sound.

Thiele-Small Parameters (for 8 Ohms speaker)

Resonant Frequency (Fs): 110.86 Hz
DC Resistance (Re): 6.9 Ohm
Coil Inductance (Le): 8 mH
Mechanical Q (Qms): 17.2304
Electromagnetic Q (Qes): 1.9694
Total Q (Qts): 1.7674
Compliance Equiv. Vol. (Vas): 0.808 cu ft
Mech. Compliance of Susp. (Cms): 119.122 mm/N
BL Product (BL): 6.15 T-M
Diaphragm Mass Inc. Airload (Mms): 17.3021 grams
Surface Area of Cone (Sd): 366.0962 cm squared
Sound Pressure Level (spl): 93.84 db

Manufacturer

Hersteller / Verantwortliche Person EU

Customer reviews (5)

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Lars Gunnar H., 11/30/2024

This is the most musical 10" speaker I ever had :)
Tight bottom, great mids, and silky smooth highs; it performs absolutely fantastic in my homegrown fender Deluxe reverb "Champ" (deluxe reverb preamp and single ended 6v6 poweramp as in the champ)

All the frequencies and all the details are there: It really brings out the best of my Strats :)

Great speaker, very inspiring sound to work with:) homegrown fender Deluxe reverb "Champ" (deluxe reverb preamp and single ended 6v6 poweramp as in the champ)

All the frequencies and all the details are there: It really brings out the best of my Strats :)

Great speaker, very inspiring sound to work with:)
go to post
Arne, 01/28/2013

The most vintage sounding new speaker for blues harp i heard. It have the crunchy bottom and great mod and smooth edge. Just as good for a small SE amp as in a Bassman. I have 2 in my 35watt bassman-ish amp and it blows my and the crowds head off. The price is good as well. amp as in a Bassman. I have 2 in my 35watt bassman-ish amp and it blows my and the crowds head off. The price is good as well.
go to post
