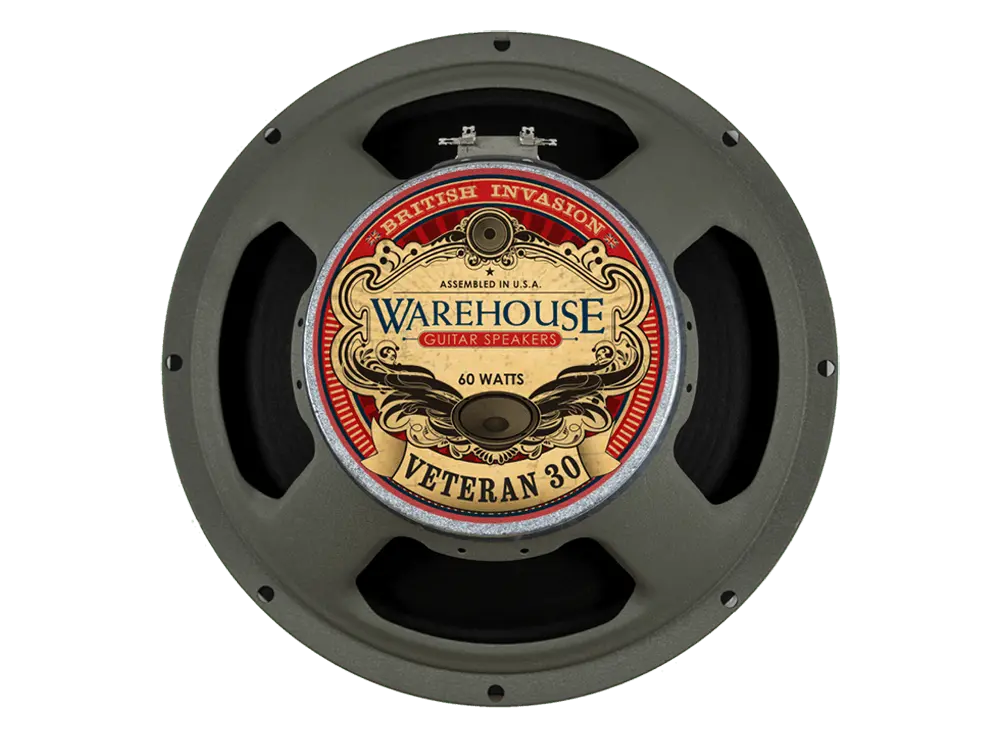

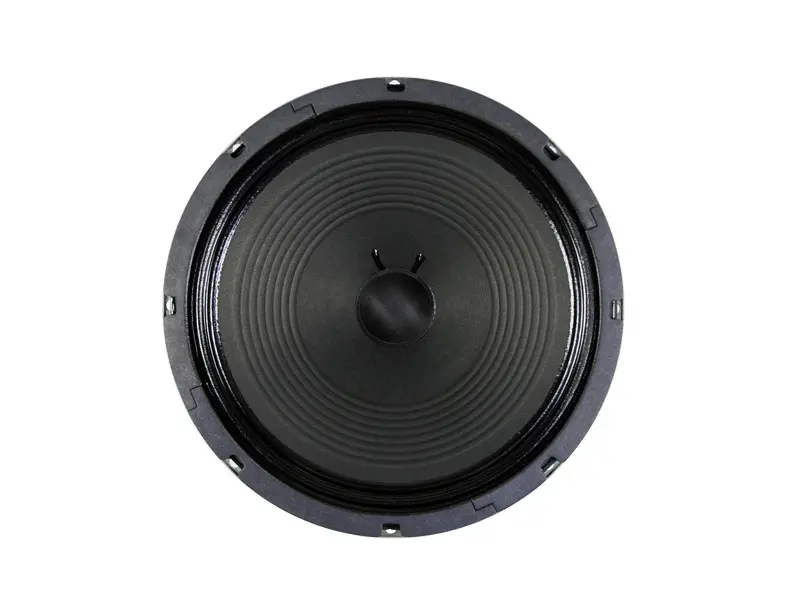

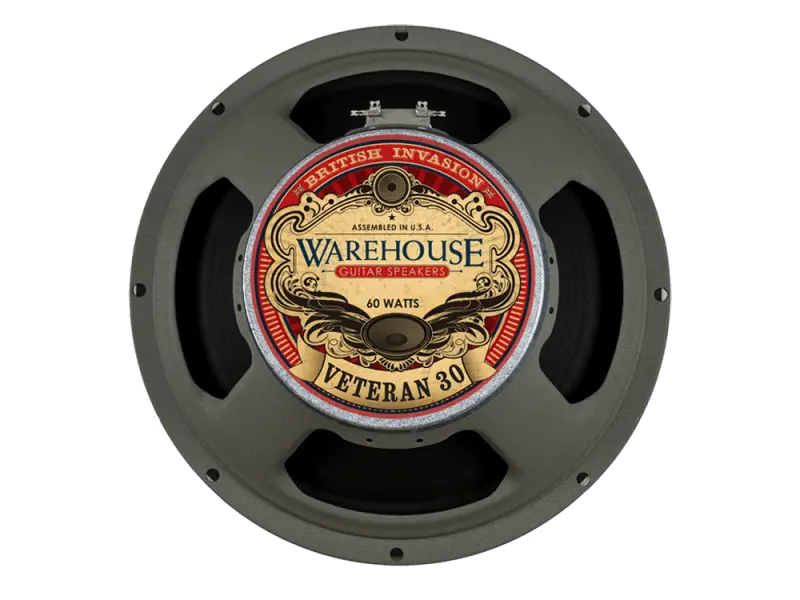

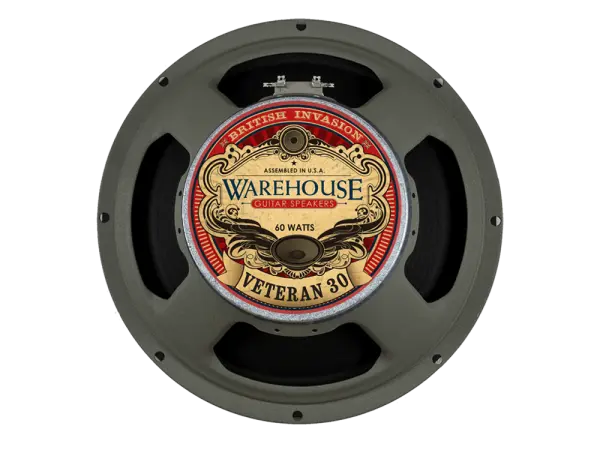

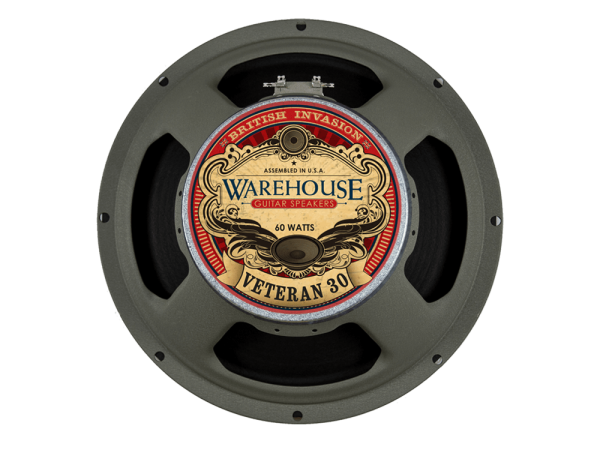

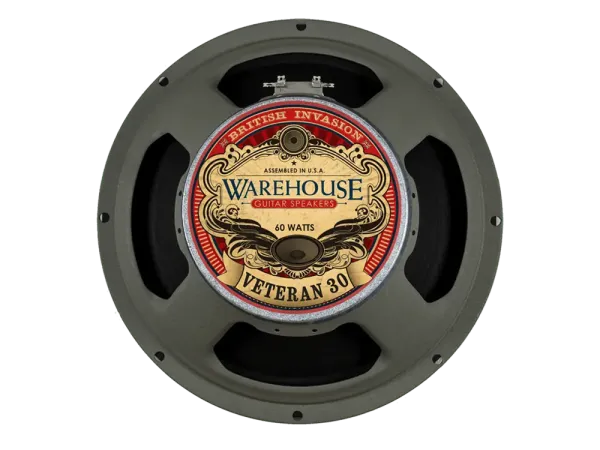

The 12” Veteran 30™ speaker from WGS is tonally superior to Celestion's™ Vintage 30™ speaker. The tonal improvement is in the upper-mids. The Veteran 30™ speaker has smoothed out the upper-mid "spike" notorious in the Vintage 30™ speaker.
Unit Weight: 10 pounds

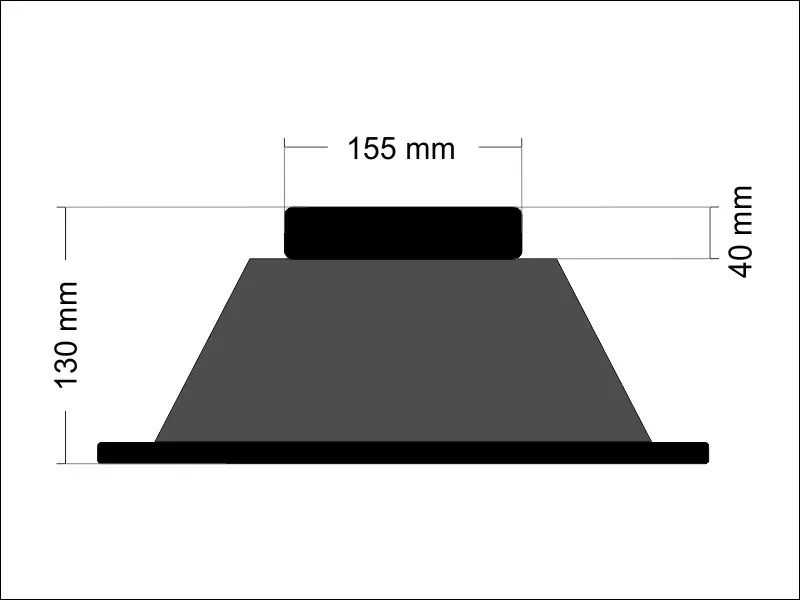

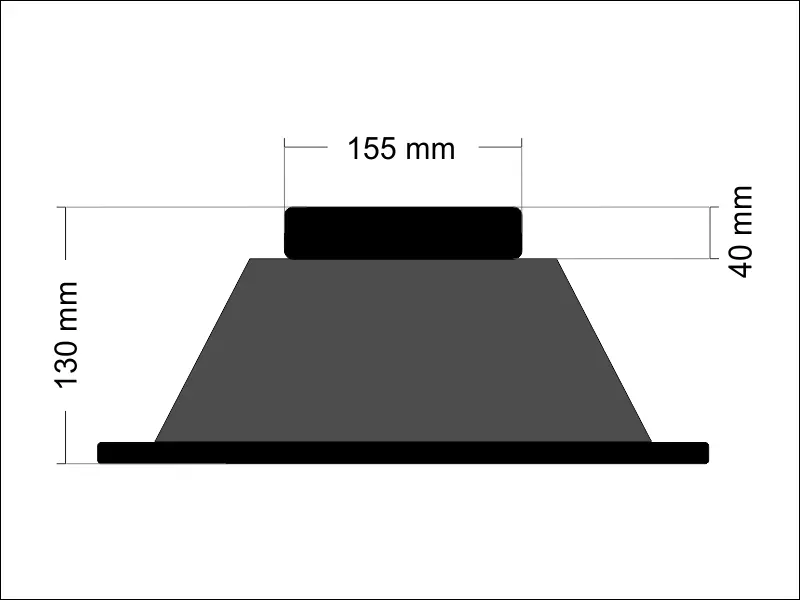

Mounting Information
- Diameter:12.2”
- Overall depth: 5.3”
- Cut-out diameter: 11.1”
- Mounting slot dimensions: 0.31”
- Number of mounting slots: 8
Thiele-Small Parameters
- Resonant Frequency (Fs): 94.84 Hz
- DC Resistance (Re): 7.99 Ohm
- Coil Inductance (Le): 0.35 mH
- Mechanical Q (Qms): 12.15
- Electromagnetic Q (Qes): 0.78
- Total Q (Qts): 0.74
- Compliance Equiv. Vol. (Vas): 18.53 cu ft
- Mech. Compliance of Susp. (Cms): 0.10 mm/N
- BL Product (BL): 13.25 T-M
- Diaphragm Mass Inc. Airload (Mms): 28.88 grams
- Surface Area of Cone (Sd): 366.10 cm squared
- Sound Pressure Level (spl): 99.84 db
